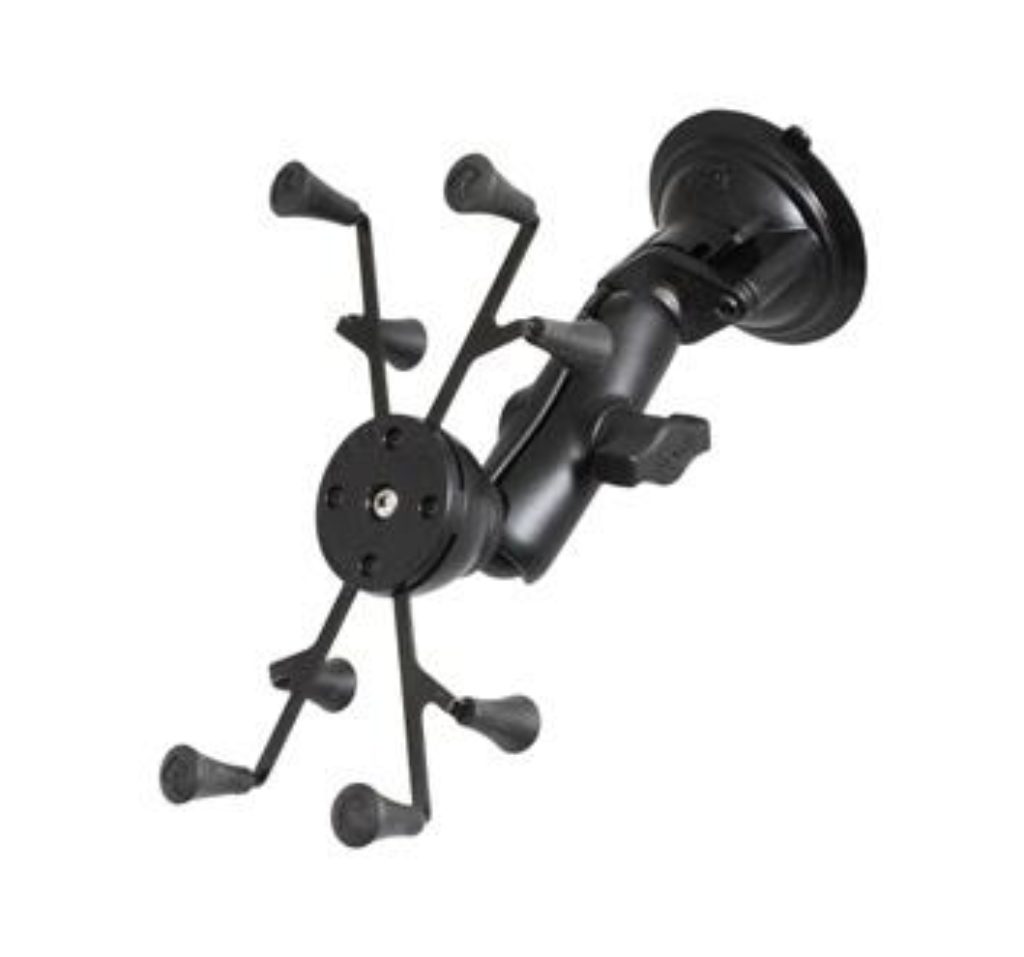

RAM-B-166-UN8U Twist Lock Suction Mount
RAM-B-166-UN8U Twist Lock Suction Mount
Alternative Views

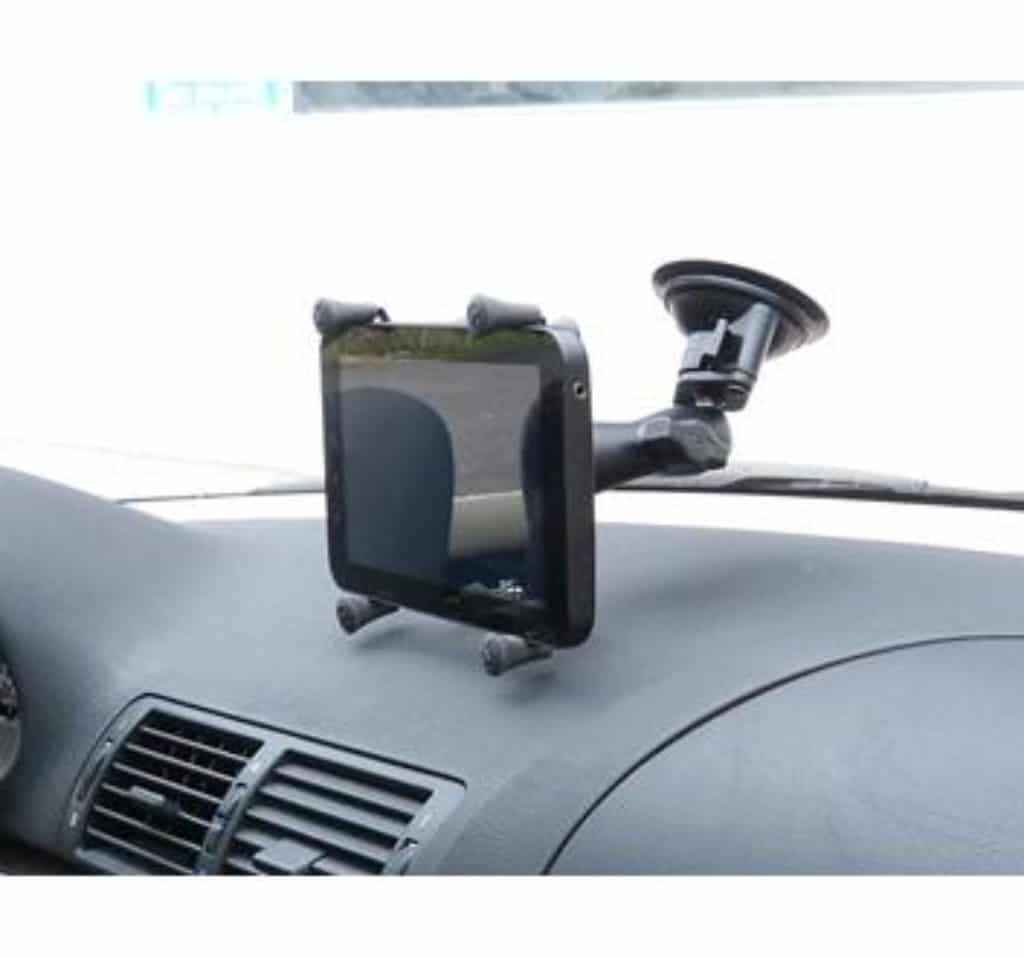

  • RAM-B-166-UN8U Twist Lock Suction Mount Side

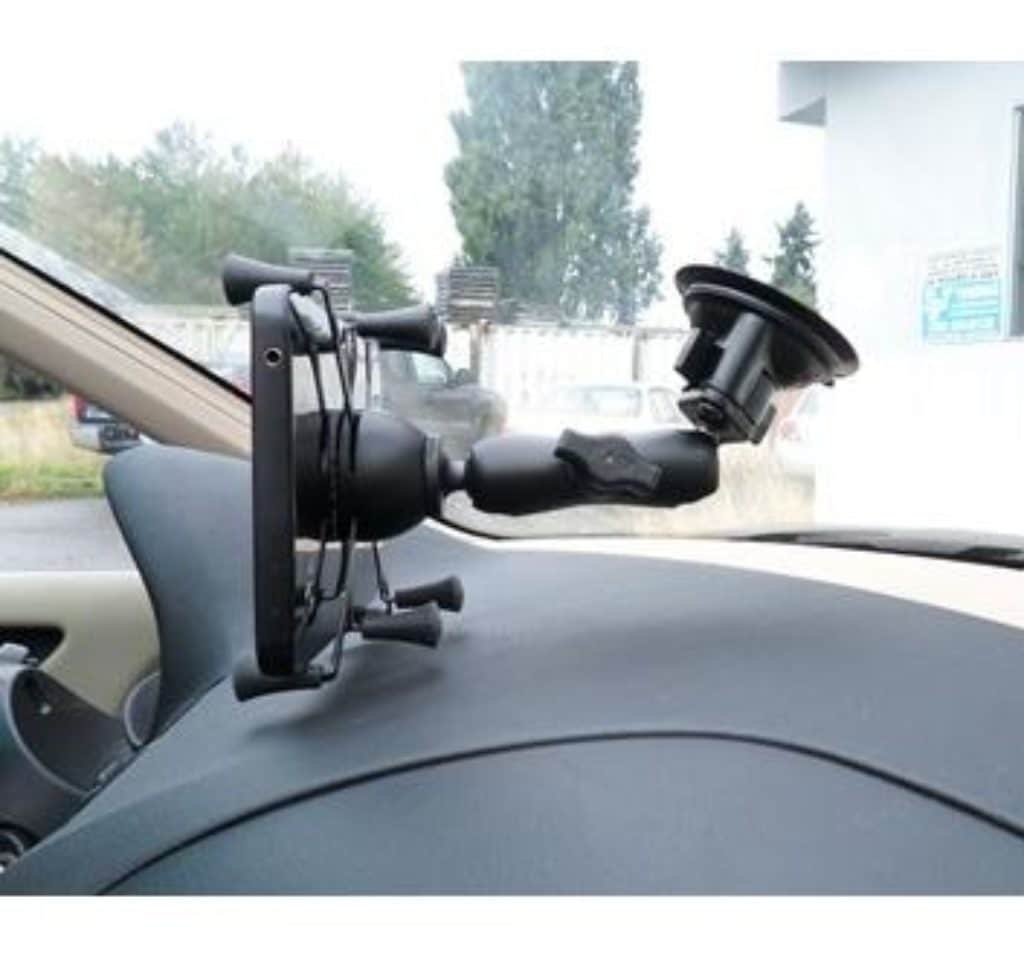

  • RAM-B-166-UN8U Twist Lock Suction Mount Side 2
  • RAM-B-166-UN8U Twist Lock Suction Mount




Suction Cup Mount with Cradle

Item# RAMB166 Mount

Twist Lock Suction Cup Mount with Universal X-Grip® Cradle for use with CTL 3520 Handheld Directional GPS Jammer Detector and Locator. View Full Description

Category: Antenna Mounts
Manufacturer: NavtechGPS
Manufacturer Number: RAM-B-166-UN8U
NavtechGPS







Twist Lock Suction Cup Mount with Universal X-Grip® Cradle with 1" Ball

We recommend the RAM-B-166-UN8U, which consists of a 3.3" diameter suction cup twist lock base, standard length double socket arm and universal spring loaded X-Grip® cradle, for use with the CTL 3520 Handheld Directional GPS Jammer Detector and Locator from Chronos Technology .

The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of the CTL 3520.  Included are extra easy access grip knobs, located on the back of the cradle for quick release of your unit.

The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. This fits the Chronos Technology CTL3520. Note: If you plan to use this mount with another unit, it is important to verify the dimensions of your handheld device including any case/sleeve/skin when determining the overall size.

Cradle Dimensions

  • Minimum Width = 2.25"
  • Maximum Width = 5.75"
  • Depth = 0.875"

Specifications/Features

  1. Spring loaded cradle expands and contracts for perfect fit of your tablet
  2. Rubber coated tips will hold your tablet firm and stable
  3. Socket technology allows for multiple adjustment angles and articulation of your tablet
  4. Easy access grip knobs, located on the back of the cradle for quick release of your tablet
  5. Lifetime warranty
  6. Made in U.S.A.

Material:

  • Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Ball Size: 1" Rubber Ball "B" Size

Weight: 0.82 lbs.
