FGR2 Series

The FreeWave FGR2 is the next generation of the FGR Serial family with the same proven performance, reliability, and quality that our customers have come to know and expect in all of our products. The FGR2 is a cost effective solution that allows customers to incorporate wireless communications into a wide variety of applications.



The FGR2 features a 6 to 30 VDC operating voltage, multiple interface options, a temperature range from –40 degrees C to +75 degrees C, and is available with a UL Class 1, Division 2 certification. It is similar to the FGR09, however the FGR2 has a lower current draw, making it ideal for many low power consumption industries.

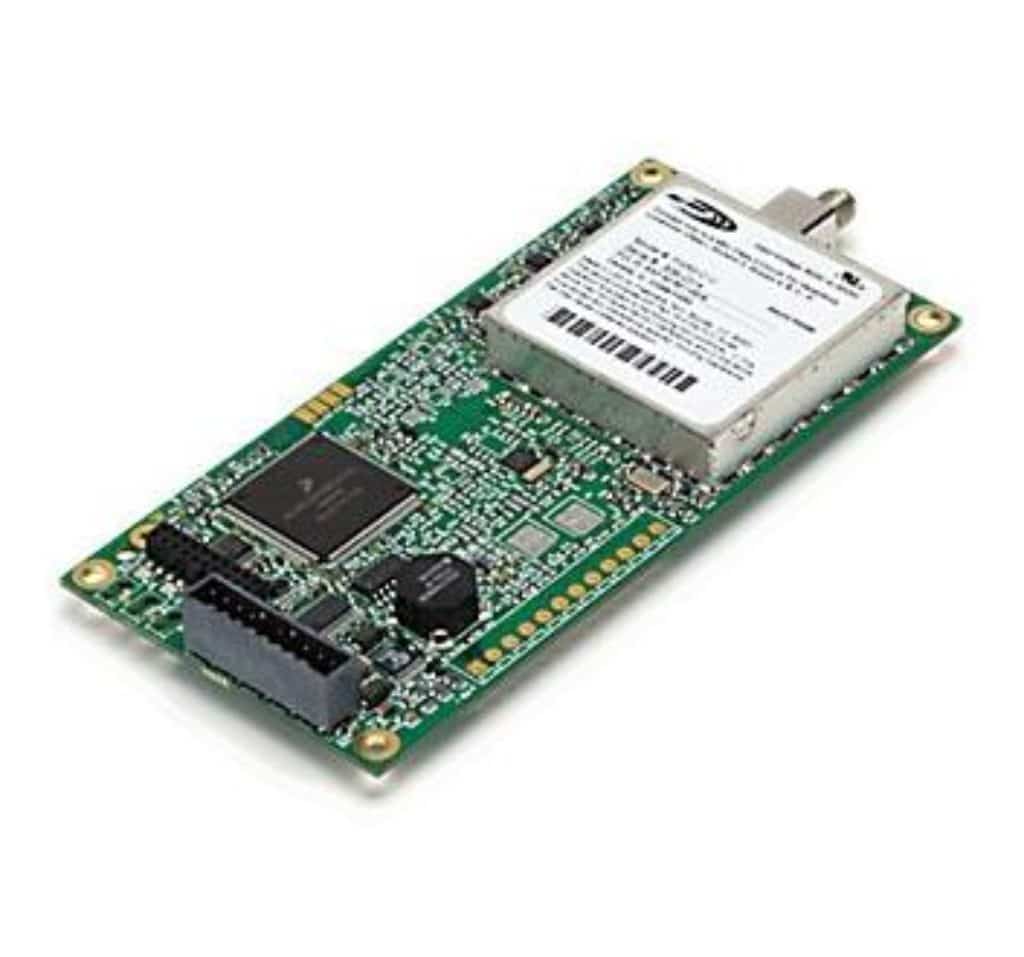

FGR2-C-U 902-928 MHz, 115.2K Over the Air Data Rate, Spread Spectrum transceiver, RS232 / RS485, Board Level, Straight SMA Female RF Connector, with Straight Top 10-Pin Locking connector, 6-30 Volts, (Replaces FGRO9CS and FGRO9CSU)

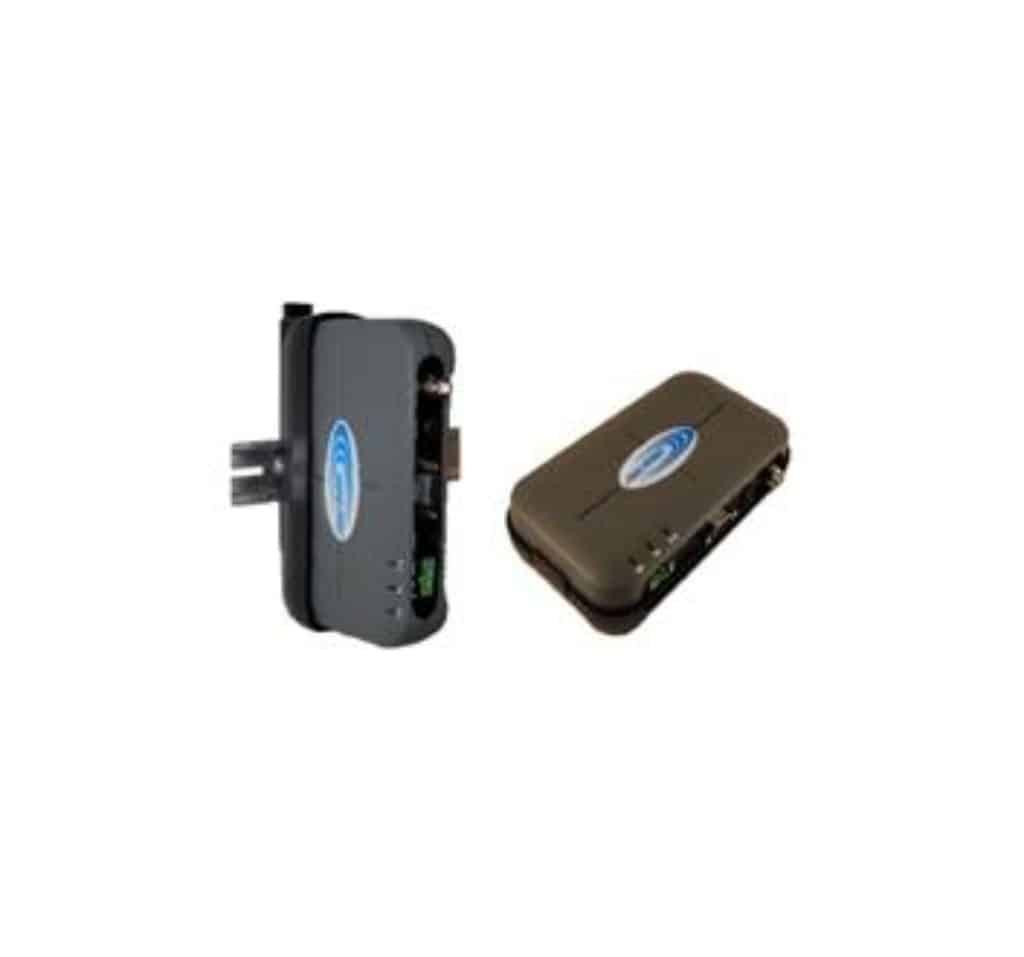

FGR2-CE-U 902-928 MHz, 115K Over the Air Data Rate, Spread Spectrum wireless data transceiver in ruggedized enclosure, 6-30 volts with RS232 / RS485 switchable interface, TNC Connector, (Replaces FGR-115RC)



FGR2-CP 902-928MHz, 115Kbps data rate, spread spectrum board level wireless data transceiver, includes FGR2-C-U and Cathodic

Protection interface board and required materials, 6.5-30 volt

input, straight SMA RF connector.



FGR2-CP-S 902-928MHz, 115Kbps data rate, spread spectrum board level wireless data transceiver, includes FGR2-C-U and Cathodic Protection interface board and required materials, 6.5-30 volt input, straight SMA RF connector, for NON-UL required

locations, includes an embedded solar charger.



FGR2-IO-IOE 902-928 MHz, 115K Over the Air Data Rate, Spread Spectrum wireless data transceiver in IO Expansion Radio enclosure, 6-30 volts with IO Capability, RS232/RS485 switchable interface, SMA Connector



FGR2-IOS-C-U 902-928 MHz, 115.2K Over the Air Data Rate, Spread Spectrum board level transceiver, IO Capability, RS232/RS485, Straight SMA Female RF Connector, 6-30 volts,



EAN0900NR     900 MHz Whip,1/2 wave No 2 dBi N-type Male 8" Tall



EAN0900RQ     900 MHz Whip,1/4 wave No Reverse SMA 3" Tall



EAN0900SR     900 MHz Whip,1/2 wave No 2 dBi SMA 7" Tall



EAN0900SQ     900 MHz Whip,1/4 wave No SMA 3" Tall



EAN0900WB    900 MHz High gain No 5.15 dBi NMO 12" Tall Donut pattern, open Coil.  Includes brackets.



EAN0900WR    900 MHz Whip No screw Replacement for DGR-115



EAN0900YC     900 MHz Yagi Yes 12.15 dBi N-type fem 24" Long 7-element; Wavelink; 50 °H / 45 °V Beamwidth.  125 MPH rated wind velocity.



EAN0905WB     900 MHz High gain No 5 dBi NMO 33" Tall Elevated feed antenna.  No ground plane required.  Includes brackets.



EAN0906YA     900 MHz Yagi Yes 8 dBi N-type fem 15" Long 4-element; Mobile Mark; 100 °H / 60 °V Beamwidth.  100 MPH windload.



EAN0906WB     900 MHz High Gain No 8.15 dBi N-type fem 65" Long Fiberglass; Antenex; Includes brackets.





ASC0032NN 3 feet (0.91 meters) N male to N male



ASC0032SF 3 feet (0.91 meters) Straight SMA male to N female



ASC0032SN 3 feet (0.91 meters) Straight SMA male to N male



ASC0102NN 10 feet (3 meters) N male to N male



ASC0102SN 10 feet (3 meters) Straight SMA male to N male



ASC0202NN 20 feet (6.1 meters) N male to N male



ASC0202SN 20 feet (6.1 meters) Straight SMA male to N male



ASC0302NN 30 feet (9.1 meters) N male to N male



ASC0302SN 30 feet (9.1 meters) Straight SMA male to N male



ASC0752SN 75 feet (22.9 meters) Straight SMA male to N male



ASC0254NN 25 feet (7.62 meters) N male to N male



ASC0254SN 25 feet (7.62 meters) Straight SMA male to N male



ASC0504NN 50 feet (15.2 meters) N male to N male



ASC0504SN 50 feet (15.2 meters) Straight SMA male to N male



ASC0754NN 75 feet (22.9 meters) N male to N male



ASC0754SN 75 feet (22.9 meters) Straight SMA male to N male



ASC1004NN 100 feet (30.5 meters) N male to N male



ASC1004SN 100 feet (30.5 meters) Straight SMA male to N male



ASC1504NN 150 feet (45.7 meters) N male to N male



ASC1504SN 150 feet (45.7 meters) Straight SMA male to N male



ASC2004NN 200 feet (61 meters) N male to N male



ASC2004SN 200 feet (61 meters) Straight SMA male to N male
