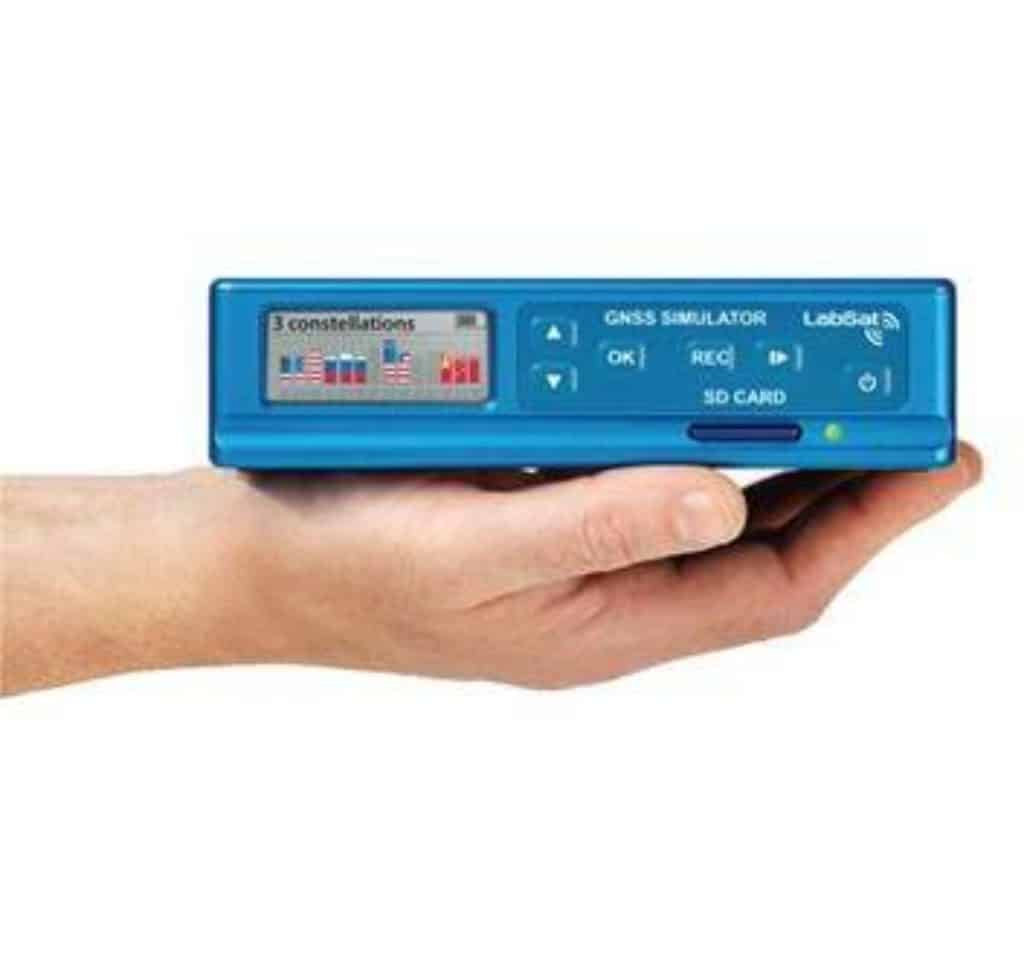

LabSat 3 GNSS Simulator
The LabSat 3 Triple Constellation Simulator by Racelogic is a portable, stand-alone, one touch record and replay device, which allows developers looking for realistic signal output to easily record scenarios in the field and replay them in a controlled environment. The LabSat 3 Record and Replay GNSS Simulator is a powerful and easy to use tool. Contact us to request a demonstration unit. In addition to the triple constellation option, there is also a dual- and single-constellation version. (See the Models tab above for the version that best meets your needs.)
Â
Labsat3 by Racelogic is a low cost GPS simulator (with GLONASS, BeiDou and Galileo) which gives you the ability to record and replay real GPS RF data, allowing you to test almost any GPS device with real world signals from your bench. If you are selling, testing or developing products using single GPS or multi-GNSS engines incorporating GLONASS, BeiDou or Galileo, then you’ll find LabSat makes your job easier and more effective. LabSat works by digitizing the original GPS satellite signals and storing them at a very high bandwidth onto a removable SD card or USB hard drive disk.
The LabSat 3 Record /Replay simulators are very popular in the automotive industry as they have the ability to play back other forms of data at the same time, such as CAN, digital and serial streams. This allows successful testing of integrated products which rely on dead reckoning sensors such as gyros and wheel speed sensors.
LabSat 3 is a completely self-contained device no need for a laptop or PC! This is a TRIPLE constellation system capable of recording and replaying multiple raw satellite navigation RF signals, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS. By digitizing and storing the original signals at a high bandwidth when recording, LabSat 3 replays scenarios that include real-world signal artifacts like multipath and signal dropouts for authentic device testing.
Â
Ease of Use
- LabSat 3 is extremely easy to operate. Its one touch record and replay, built in battery and clear display, make it simple to operate in all environments. You can easily make up your own test scenario.
Optional SatGen v3 Software
- The optional SatGen software allows you to simply draw a route on an interactive map. The software creates an RF file containing the simulated signals from multiple satellites that can be replayed using a LabSat 3. This allows you to generate simulated satellite signals from a user defined trajectory,for testing any time, date or place around the world.
Durable and Versatile
- Record and Replay for GPS L1, GLONASS L1, Galileo E1, BeiDou B1, QZSS and SBAS
- Fully standalone. No need for a separate PC or laptop
- One-touch record and replay
- Record 3 constellations at once!
- Rugged for use in harsh environments.
- Compact and Lightweight: measuring only 167mm x 128mm x 43mm, with a 2-hour battery life.

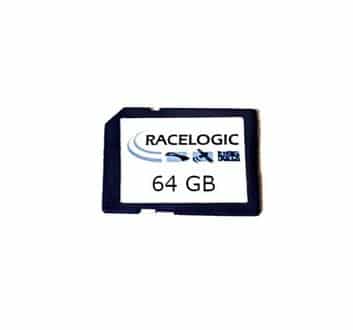

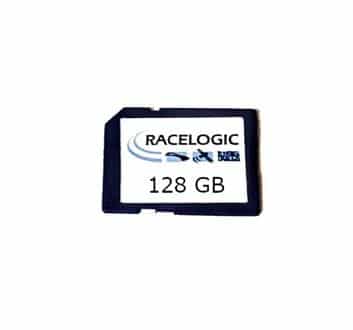

- The RF file created can be stored directly to SD card, making it easily transferable between machines.

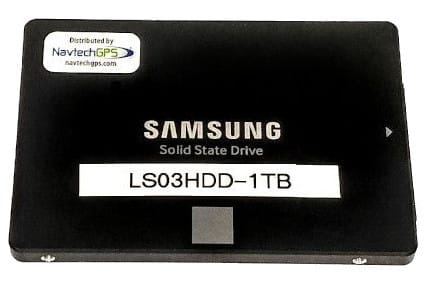

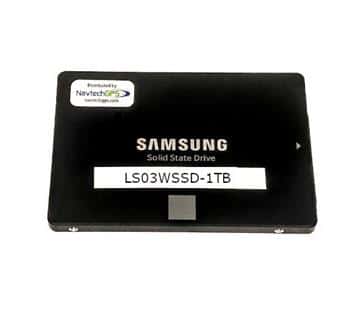

- The systems are supplied with a rugged, portable 1TB USB 3.0 HDD drive, which contains a number of pre-recorded worldwide scenarios, so immediate testing can commence.
Six Model Configurations to Choose From (See Models Tab above) (See bundles tab for discounts)
The LabSat 3 Record /Replay simulator has completely replaced the prior LabSats, with more features and options for testing. NavtechGPS was the first U.S. company to demonstrate the new LabSat 3. Contact us to request  a demonstration unit.
Free Library of Testing Scenarios
A free library of pre-recorded and simulated files from around the world is included with all systems to get you up and running as quickly as possible with your LabSat 3 Record / Replay simulator.
Â
Â
LabSat 3 Comes in Six Versions, Offering Single-, Dual-, and Triple-Constellation Options
All replay and record versions also come with a SatGen v3 option. SatGen v3 is available in single, dual or triple constellation version and will create GPS L1, GLONASS L1 and BeiDou B1 RF signals. Call us for details or for a demonstration!
Â
PART NUMBER |
DESCRIPTION |
CONSTELLATIONS |
GNSS ANTENNA |
RLLS03- 1P |
Single constellation, replay only |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1
|
 ___ |
RLLS03- 1RP |
Single constellation, record and replay |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1
Â
|

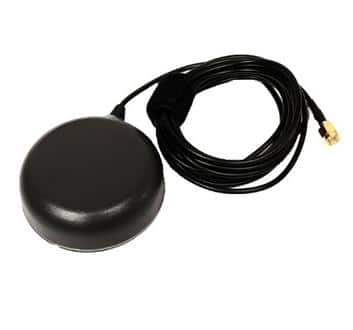

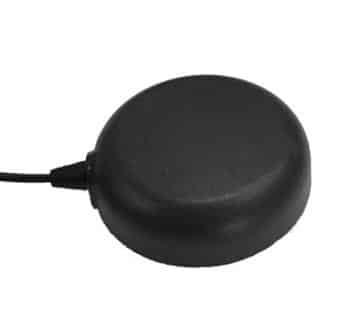

 RLACS198 Quad
Constellation Antenna |
RLLS03- 2P |
Dual constellation, replay only |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1
|
 ___ |
RLLS03- 2RP |
Dual constellation, record and replay |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1
|
 RLACS198 Quad
Constellation Antenna |
RLLS03- 3P |
Triple constellation, replay only |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1 |
 ___ |
RLLS03- 3RP |
Triple constellation, record and replay |
GPS L1/SBAS/Galileo E1/QZSS,
GLONASS L1 or BDS B1 |
 RLACS198 Quad
Constellation Antenna |
Â
Choose from Six LabSat 3 with SatGen v3 Bundles!
Choose the LabSat and SatGen bundle that meets your needs.Â
Â
LABSAT SYSTEM
(Part Number) |
DESCRIPTION |
RLLS03SP/S1 |
LabSat 3 single constellation replay system with SatGen v3 single constellation software |
RLLS03SR/S1 |
LabSat 3 single constellation replay and record system with SatGen v3 single constellation software |
RLLS03DP/S2 |
LabSat 3 dual constellation replay system with SatGen v3 dual constellation software |
RLLS03DR/S2 |
LabSat 3 dual constellation replay and record system with SatGen v3 dual constellation software |
RLLS03TP/S3 |
LabSat 3 triple constellation replay system with SatGen v3 triple constellation software |
RLLS03TR/S3 |
LabSat 3 triple constellation replay and record system with SatGen v3 triple constellation software |
