FreeWave MM2 Series
FreeWave MM2 Series
Item #: MM2 Series

MM2 Series

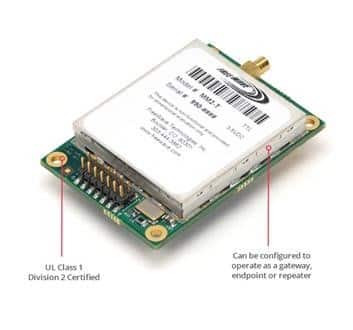

The Freewave 900 MHz MM2 is a leading wireless datalink OEM product. The MM2 family has all of the functionality of the larger footprint FGR2 series of radios.

Request Info / Pricing
SKU: MM2 Series Categories: , , Manufacturer: FreeWave

FreeWave MM2 SERIES

The MM2 series of Freewave wireless datalink radios are available in several different model options. Please see the Models Tab for all the available models and options.

If your OEM product needs a proven wireless data solution, the 900 MHz MM2 from Freewave is designed to provide performance, reliability, and quality in a form factor for applications where space is at a premium. The MM2 family has all of the functionality of the larger footprint FGR2 series of radios.

KEY FEATURES

  • Frequency Range: 902 to 928MHz, Frequency Hopping Spread Spectrum
  • Throughput: Up to 115.2 or 153 Kbps over the air – user-selectable
  • Range: Up to 60 Miles line of sight
  • Operating Voltage: 6.5 VDC to 30 VDC
  • Operating Temperature:  -40°C to 85°C
  • Communications Protocols:  Serial, Ethernet and TTL Serial
  • Security : 128 or 256-bit AES encryption
  • Channel Access Method: TDMA and Super Epoch TDMA

FreeWave MM2 Series Data Sheet 1

FreeWave MM2 Series Data Sheet 2

FreeWave MM2 Series Data Sheet 3

FreeWave MM2 Series Data Sheet 4

Data Sheet 1
MM2- MR-R: MMCX Connector
MM2- MR-R-U: MMCX Connector, Class 1 Div 2
MM2- MR-SR: SSMC Connector
MM2- MR-T: MMCX Connector, TTL
MM2- MR-T-U: MMCX Connector, TTL, Class 1 Div 2

Data Sheet 2
MM2-P-T – Ethernet: 153.6 Kbps data rate, 5 VDC, MMCX Connector
MM2-P-T-U – Ethernet: 153.6 Kbps data rate, 5 VDC, MMCX Connector, UL Class 1 Div 2

Data Sheet 3
MM2-LV-T: Board level, 3.5V
MM2-LV-T-LF: Board level, 3.5V, RoHS
MM2-LV-T-U: Board level, 3.5V, UL Class 1 Div 2
MM2-T: Board level, 5.0V
MM2-T-LF: Board level, 5.0V, RoHS
MM2-T-RX: Board level, 5.0V, Rcv Only
MM2-T-U: Board level, 5.0V, UL Class 1 Div 2

Data Sheet 4
MM2-DEVKit (2 radios and accessories for OEM product development)

Data Sheet 5
MM2-9X5W: 5W RF Output

MM2-M13 Series

MM2-MU Series
