Pacific Crest ADL Foundation Radio Data Link
Pacific Crest ADL Foundation Radio Data Link
Item #: ADL Foundation

Pacific Crest ADL Foundation Developer’s Kits

EOL notice issued for ADL Foundation Developer Kit. Consider replacing the ADL Foundation in their products with the XDL Micro.

The Pacific Crest ADL Foundation radio is a 0.1-1.0 Watt UHF transceiver designed for integration into products that require either a one- or two-way radio communication link.

Discontinued - contact us
SKU: ADL Foundation Categories: , , Manufacturer: Pacific Crest

Pacific Crest ADL Foundation Radio Data Link

EOL notice issued for ADL Foundation Developer Kit.

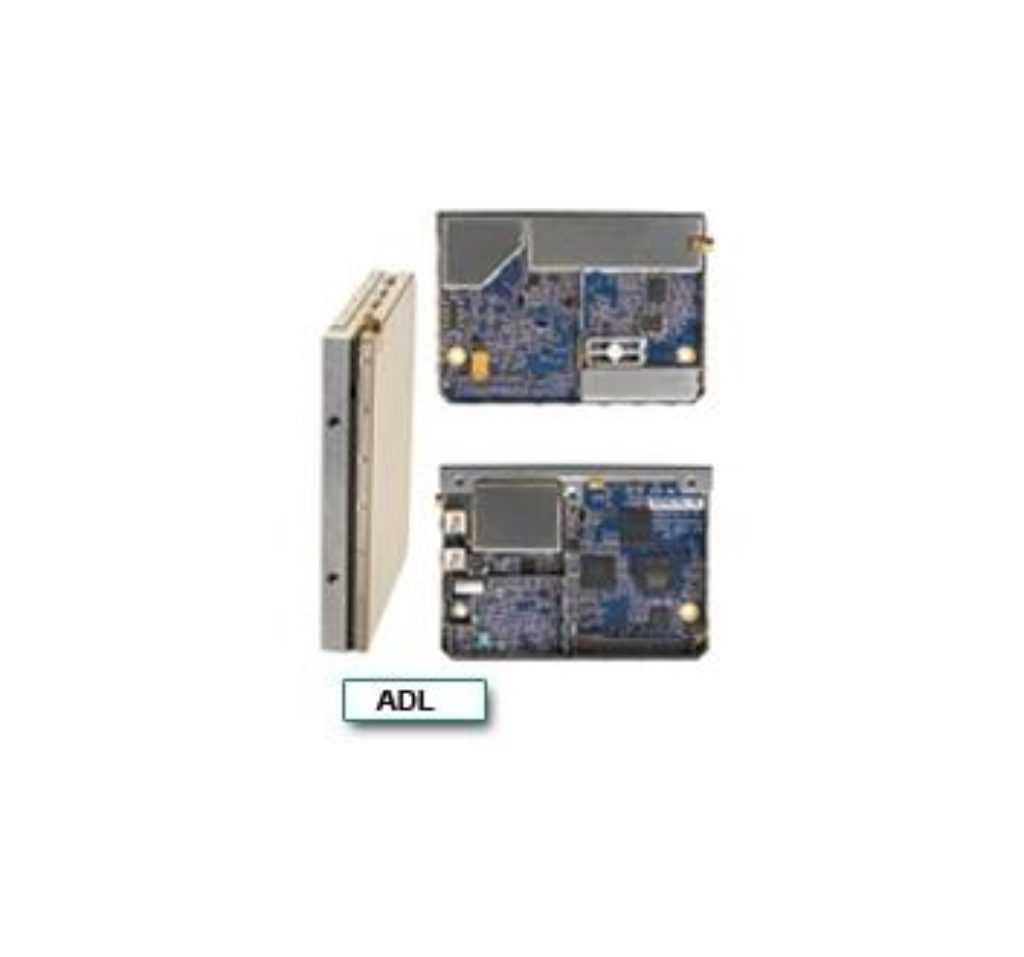

The ADL Foundation is a 0.1-1.0 Watt UHF transceiver designed for integration into products that require either a one- or two-way radio communication link. This sophisticated radio modem utilizes Pacific Crests next generation Advanced Data Link (ADL) technology while remaining backward compatible with existing Pacific Crest, Trimble and other products. Integrating the latest modem technology from the leader in radio frequency data communications instantly puts your products in touch with the worlds largest installed base of GNSS precise positioning systems. And with Pacific Crests system integration expertise, you are buying a solution, not just a modem.

Key Features
  • 40 MHz Bandwidth
  • High Over-the-Air Link Rate
  • Configurable Transmit Power
  • Software-Derived Channel Bandwidth
  • Improved Environmental Capabilities

Each kit includes:                                                               82264             K01096               82224
Radio Module (430-470MHz) ........................................         A02777            A02652               A02731
Test and Demo Board .........................................................        A02599           A02599               A02599
Power Supply .....................................................................              C03047          C03047               85088-00
Power Cord .........................................................................                 n/a                   n/a                      85088-10
Universal power cord adapter set ......................................       C02316           C02316               C02316
DB9 Male to DB9 Female Modem Cable ............................    C02592             C02592              C02592
Flexible ¼ Wavelength Antennas (2)
420-450 MHz, 2.4 dB Gain ...........................................                C02107             C02107              C02107
450-470 MHz, 2.4 dB Gain ...........................................                C02108             C02108              C02108
RF Antenna Cable ...............................................................              A02650            A02650              A02650
Data/power test interface pigtail cable ..............................    A02720             A02720              A02720
ADLCONF USB Key ..............................................................             A02672          A02672              A02672

Note: The power supply included with the two ADL Founda.. on Developer’s Kits (P/N C03047) must NOT be used
with the ADL RXO. The ADL RXO has lower power requirements than the ADL Founda.. on and will be damaged by
the ADL Foundation’s power supply.

ADL Foundation Transceiver 430-470 MHz CMOS 20-pin Samtec MMCX       82264

ADL Foundation Transceiver 430-470 MHz RS232 20-pin Samtec MMCX       K01096

ADL RXO Receiver 430-470 MHz CMOS 20-pin Samtec MMCX                       82224
