SatGen V3 GNSS Simulation Software

The latest update of SatGen V3 now generates 13 signals, including simulation of the L2C and L5 CPS signals. The SatGen software enables you to create a data file, based on a user-generated trajectory file that can be replayed on a LabSat GNSS simulator.

SKU: RLLSSGSW03-1 Categories: , , Manufacturer: LabSat by Racelogic

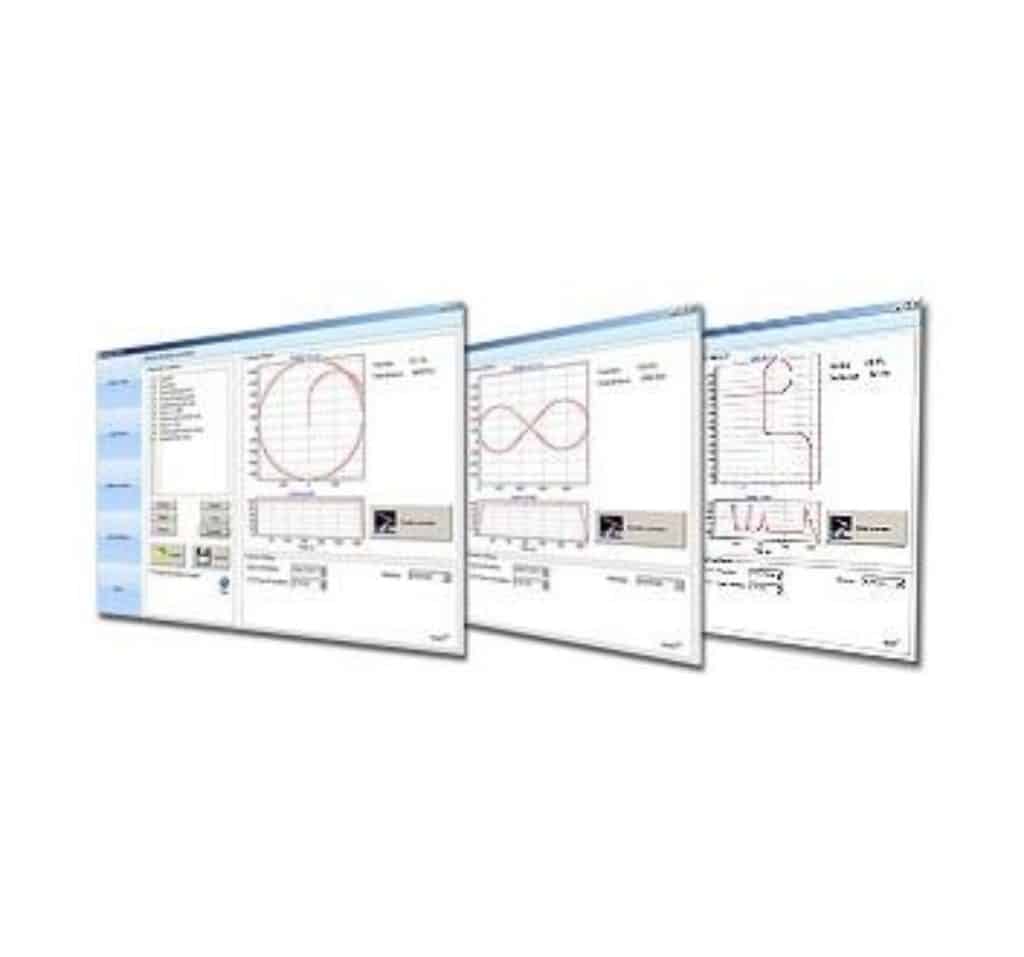

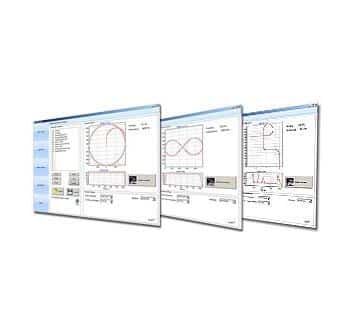

SatGen GNSS Simulation Software

The latest update of SatGen V3 from Racelogicnow generates 13 signals, including simulation of the L2C and L5 GPS signals! Plus, most of the GPS pseudorange residuals are now at the sub-meter accuracy level.


SatGen can be used to create a single scenario containing all the upper and lower L Band signals for GPS, Galileo, GLONASS, and BeiDou, and will take advantage of the LabSat 3 Widebands ability to read RF data at up to 95 MB/s.

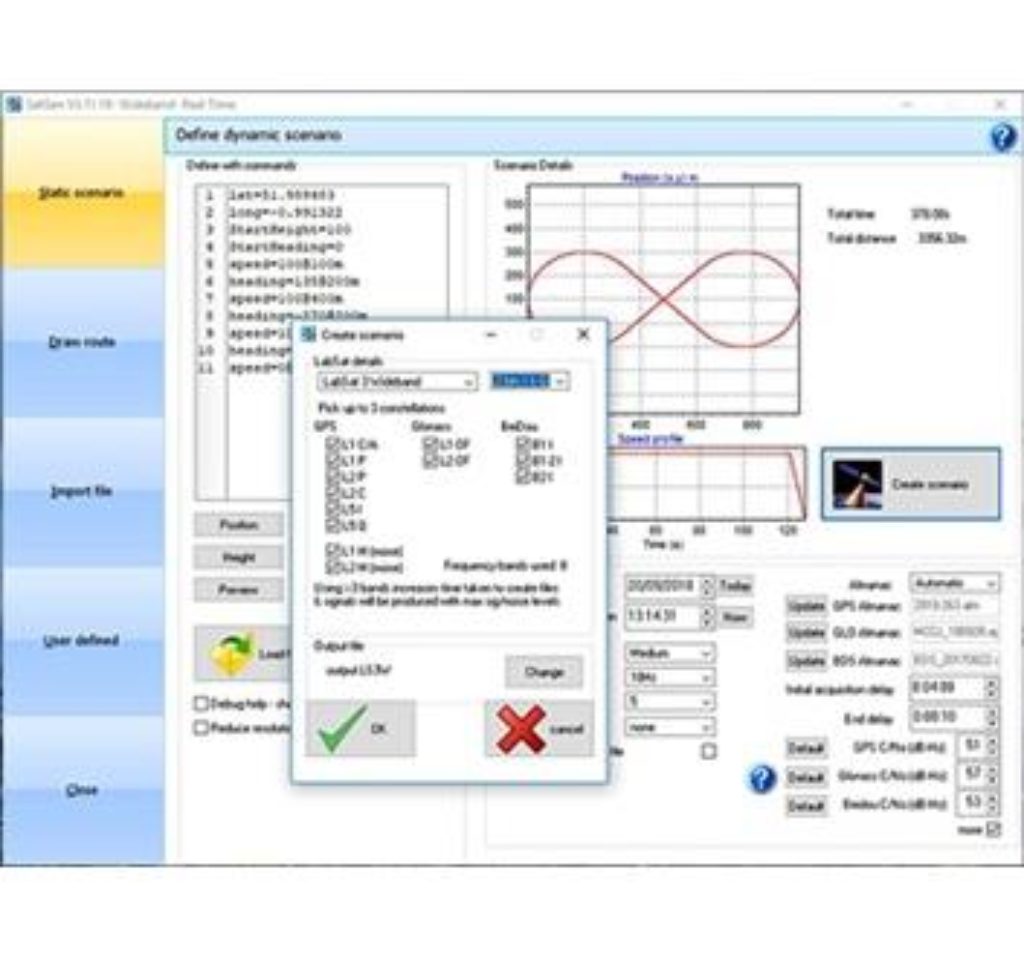

SatGen software allows you to create a GNSS RF I&Q or IF data file based on a user-generated trajectory file that can be replayed on a LabSat GNSS Simulator. This allows you to simulate almost any kind of test, at a set time and date, anywhere in the world.

For example, say you are based in Europe, but your GPS devices will be deployed throughout the world. With SatGen you can create a test scenario for virtually any location, including hostile areas for which live-sky field testing might be impossible. This allows you to verify that your GPS equipment performs as required, in a variety of locations that may be geographically remote from your facility.

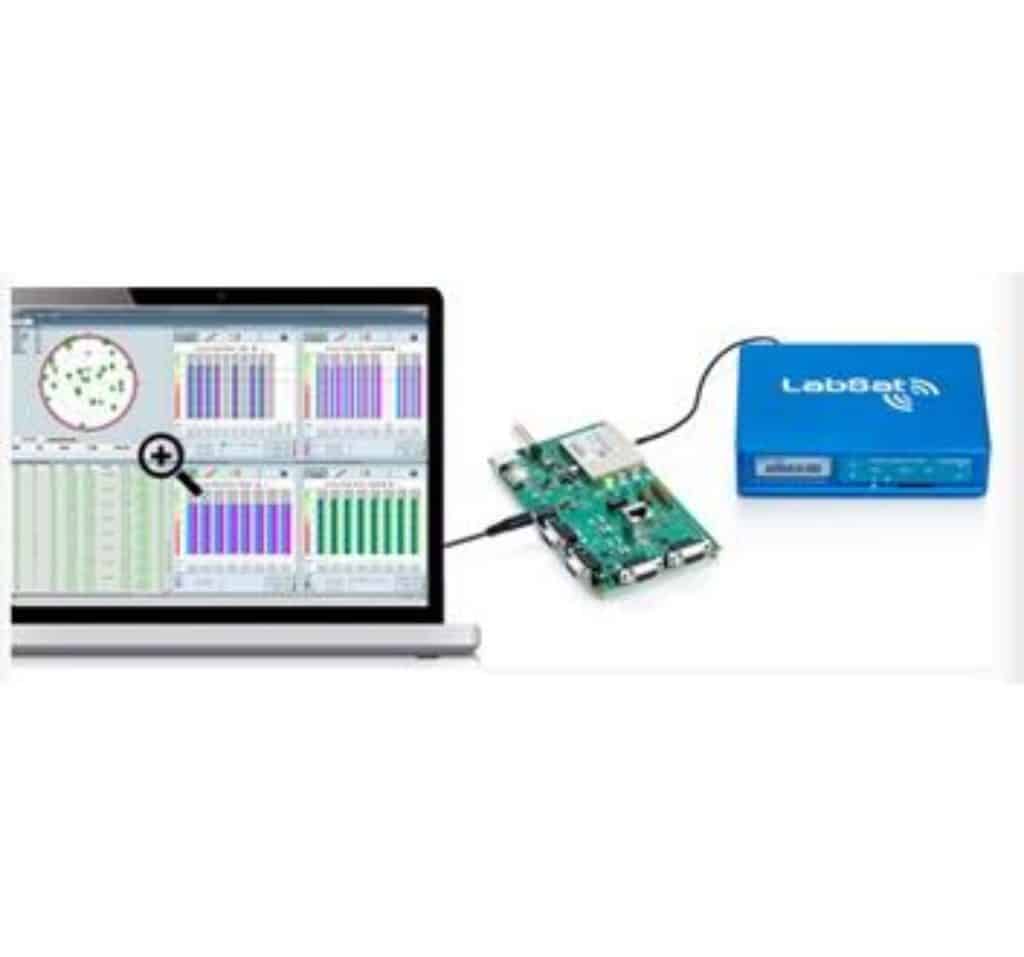

SatGen complements the LabSat range of GNSS simulators, and is available in single, dual, triple and multi-frequency/multi-constellation versions. Of course, LabSat can record and replay live data, but creating an artificial scenario allows you to precisely control the data content, create a gold standard file for carrying out true comparisons between receivers.

From your bench you can try different acceleration levels, crossing different time zones, the equator, leap second, roll-over and many hard to replicate tests.

What constellations & signals can I create?

  • Single Constellation: Create single constellation scenario files for GPS L1/ Galileo E1, GLONASS L1 or BeiDou B1
  • Dual Constellation: Create dual or single constellation scenario files for GPS L1/ Galileo E1, GLONASS L1 or BeiDou B1
  • Triple Constellation: Create triple, dual or single constellation scenario files for GPS L1/ Galileo E1, GLONASS L1 or BeiDou B1
  • Wideband: Create LabSat 3 Wideband scenario files for:
    • GPS:L1C/A, L1P, L1M, L2C, L2P, L2M, L5 ( L1M, L2M noise created only)
    • Galileo:E1, E5A, E5B, E6 (coming soon)
    • GLONASS:L1OF, L2OF
    • BeiDou: B1I, B1-2I, B2I (BeiDou B1 special almanac including BeiDou future satellites)
  • Real-Time: Create real-time GPS/ Galileo, GLONASS, BeiDou L1 signals with the additional LabSat RT dual constellation system
Please note that the SatGen v3 simulation software requires a 64 bit windows operation system and will not install on a 32 bit system.

Choose from Six LabSat 3 with SatGen v3 Bundles!

Choose the LabSat and SatGen bundle that meets your needs. Contact one of our sales representatives to get the discount details.


LABSAT SYSTEM
(Part Number)

DESCRIPTION
RLLS03SP/S1 LabSat 3 single constellation replay system with SatGen v3 single constellation software
RLLS03SR/S1 LabSat 3 single constellation replay and record system with SatGen v3 single constellation software
RLLS03DP/S2 LabSat 3 dual constellation replay system with SatGen v3 dual constellation software
RLLS03DR/S2 LabSat 3 dual constellation replay and record system with SatGen v3 dual constellation software
RLLS03TP/S3 LabSat 3 triple constellation replay system with SatGen v3 triple constellation software
RLLS03TR/S3 LabSat 3 triple constellation replay and record system with SatGen v3 triple constellation software



Use SatGen simulation software to create GNSS RF I&Q data files

SatGen complements the LabSat range of GNSS simulators, and is available in single, dual & triple constellation versions. The software will create GPS L1, Glonass L1 and BeiDou B1 RF signals. Watch the video below to learn about the ease and power of this software.
