Item #: ANT-26C1GOA-196MNSB

ANT-26C1GOA-196MNSB Single Frequency GPS/GNSS Antenna with L-Band

The NovAtel ANT-26C1GOA-196MNSB is an active L1 GNSS antenna, offering combined GPS + GLONASS signal reception plus L-Band tracking.

SKU: ANT-26C1GOA-196MNSB Categories: , Manufacturer: NovAtel

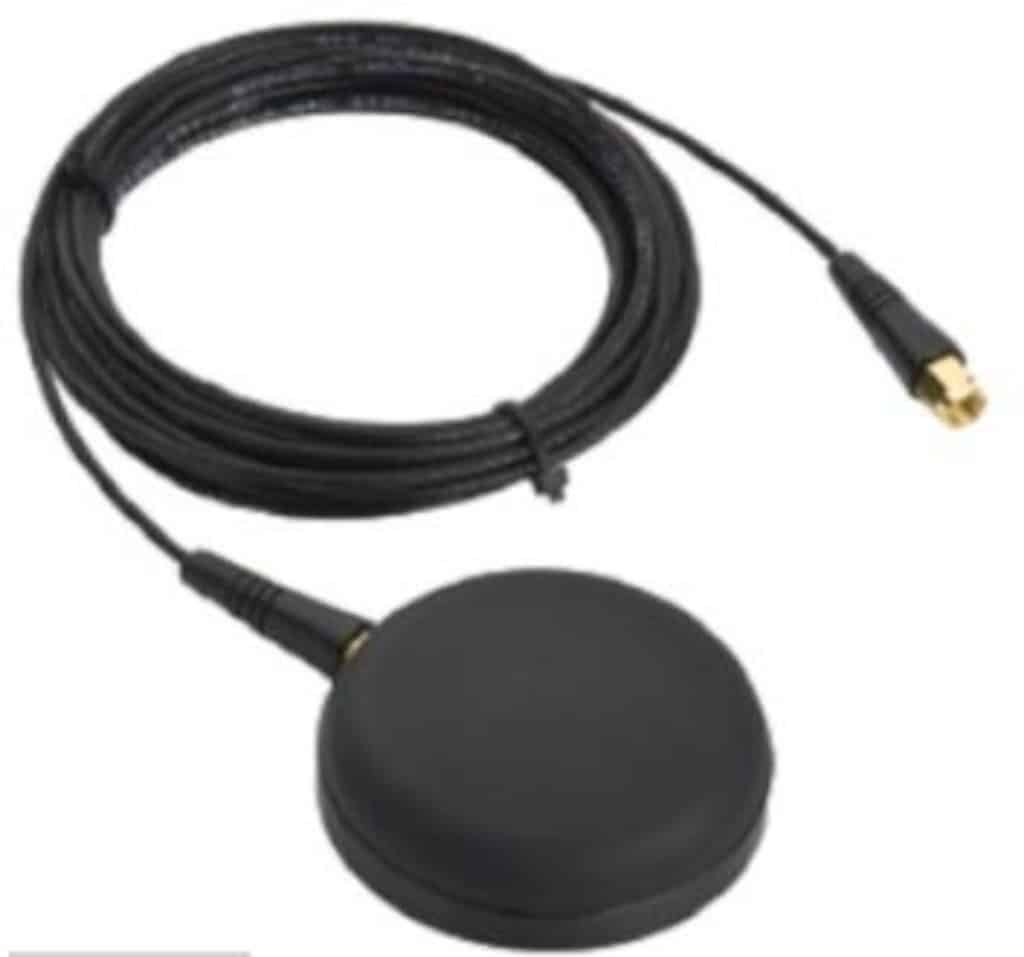

NovAtel ANT-26C1GOA-196MNSB

The NovAtel ANT-26C1GOA-196MNSB is an active L1 GNSS antenna, offering combined GPS GLONASS signal reception plus L-Band tracking. Customers can use the same antenna for GPS only or dual- constellation applications to increase flexibility and reduce equipment costs. L-Band offers real-time Differential GPS (DGPS) positioning with metre to decimetre level accuracy.

Small Form Factor

This small form factor antenna measures <69 mm in diameter by <20 mm in height, accepts an input voltage of 2.5 to 24 VDC and consumes less than 40 mA. It is compact and lightweight, making it highly portable and suitable for a variety of environments and applications.

Suitable For Use In GLIDE Applications

The ANT-26C1GOA-196MNSB antenna is suitable for use in applications using NovAtel’s GLIDE. GLIDE combines L1 code and L1 phase data to produce a positioning solution suited for applications such as agricultural guidance, where pass-to-pass repeatability is critical.

Features

  • L1 tracking
  • GPS GLONASS signal reception
  • Magnetic and screw mounting supported
  • Integrated cable with SMA connector
  • RoHS compliant

Benefits

  • Small form factor with good carrier-phase performance
  • Reduces equipment costs and need for future redesign
  • Flexible placement with easy installation options
  • Multi-constellation tracking will enhance solution availability

NovAtel ANT-26C1GOA-196MNSB Single Frequency GPS/GNSS Antenna with L-Band Data Sheet
