Item #: 3G1215A

Antcom Active L1/L2 GPS Antenna, 3.5″

Antcom Active L1/L2 GPS Antenna, 3.5″ circular, 33 dB, white, available with N-type TNC or SMA Connector

SKU: 3G1215A Categories: , Manufacturer: Antcom

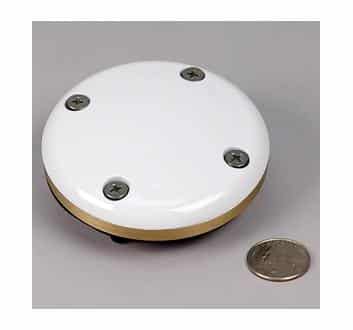

Antcom 3G1215A Active GPS Antenna

The 3G1215A is an active GPS antenna, 88.9 mm (3.5- inches) in diameter and operates at the GPS L1 frequency of 1575.42 MHz and the GPS L2 frequency of 1227.60 MHz. The antenna is a spherical radius molded radome that provides enhanced protection against rain and ice. The antenna includes the following: internal 33 dB low noise amplifier, bias voltage from 2.5-24 V DC for operation, band pass filtering and DC bias provided through the coaxial connector.
