Calian ARM928XF Extended-Filter Triple-Band GNSS Antenna + L-Band

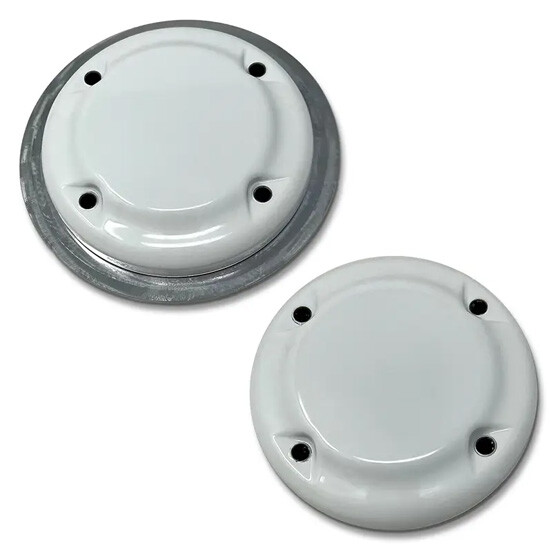

The ARM928XF from Calian is designed for precision triple-frequency positioning where lightweight and a low profile are important. The ARM928XF is available in one of two form factors, a 100mm integrated ground plane (weights ~140 grams) and 83mm in diameter ground plane (~138 grams). Both are ~19mm tall and support the ARINC mini bolt pattern of 2.0” x 1.66”. Calian’s ARM928XF is one of the smallest and lightest housed triple-band precision Mini ARINC GNSS antennas on the market. It has a very tight average phase center variation of less than 10mm for all frequencies and overall azimuths and elevation angles.
Features
- Low noise preamp (< 2.5 dB typ.)
- Tight phase center variation
- High-gain LNA (28 dB typ.)
- Low current (32 mA typ.)
- ESD circuit protection (15 kV) Benefits
- Integrated interference mitigation
- Integrated multipath rejection
- Increased system accuracy
- High signal-to-noise ratio
- IP69K (non-space), REACH, and RoHS compliant
