Calian ARM933XF Extended-Filter Triple-Band GNSS Antenna + L-Band
The ARM933XF from Calian is a triple-band, multi-constellation GNSS antenna designed for applications where light weight and low profile are essential. The ARM933XF antenna is available in two form factors, a 100mm integrated ground plane, which weighs ~140 grams, which weighs ~138 grams. Both are ~19mm tall and support the ARINC mini bolt pattern of 2.0” x 1.66”. Tallysman’s ARM933XF is one of the smallest and lightest housed triple-band precision Mini ARINC GNSS antennas on the market. It has a very tight average phase center variation of less than 10mm for all frequencies and overall azimuths and elevation angles.
In addition to supporting two form factors, both models are available with Low Earth Orbit (LEO) qualified components.

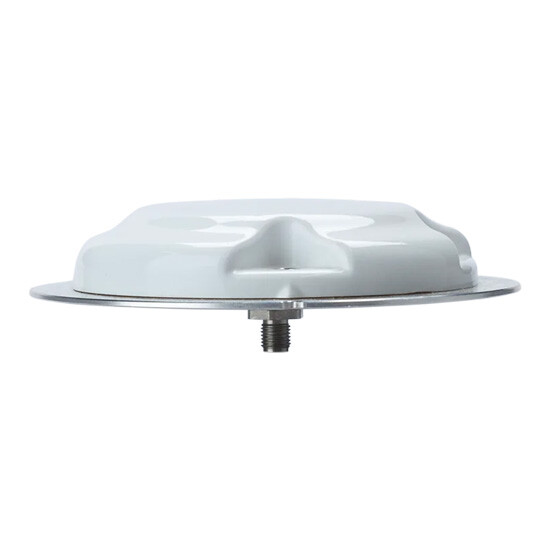

Housed in a weatherproof (IP67) enclosure, the ARM933XF is available in four versions. Model ARM933XF-1 (ARM933XF-1-S (LEO Space qualified components)) has an integrated 100mm ground plane, Model ARM933XF-2 (ARM933XF-2-S LEO Space qualified components) is 83mm in diameter. All models are available with either a female SMA or TNC connector.
Features
- Very low noise preamp (< 2.5 dB typ.)
- Tight phase center variation
- High-gain LNA (33 dB typ.)
- Low current (32 mA typ.)
- ESD circuit protection (15 kV)
- Integrated interference mitigation
- Excellent multipath rejection
- Increased system accuracy
- IP69K, REACH, and RoHS compliant
