Calian ARM960P Multi-Constellation Full-Band Antenna

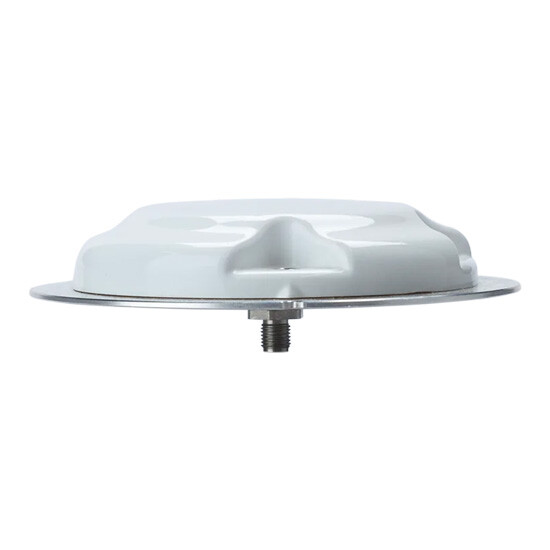

The ARM960P employs Calian’s patented Accutenna® technology, providing GPS, QZSS, GLONASS, Galileo, and BeiDou + L-Band coverage. The ARM960P antenna is designed for precision full-frequency positioning where lightweight and a low profile are important. The ARM960P antenna is available in two form factors, a 100 mm integrated ground plane, weighing 140 g, and the other 83mm in diameter, weighing 138 grams. Both are 19 mm tall and support the ARINC mini bolt pattern of 2.0” x 1.66”. Calian’s ARM960P is one of the smallest and lightest housed full-band precision Mini ARINC GNSS antennas on the market. It has a very tight average phase center variation of less than 10 mm for all frequencies and overall azimuths and elevation angles. In addition to supporting two form factors both models are available with Low Earth Orbit (LEO) qualified components.
Features
- Tight phase center variation
- Excellent interference mitigation
- Integrated multipath rejection
- Excellent signal-to-noise ratio
- IP69K (non-space), REACH, and RoHS
