Item #: ADU5

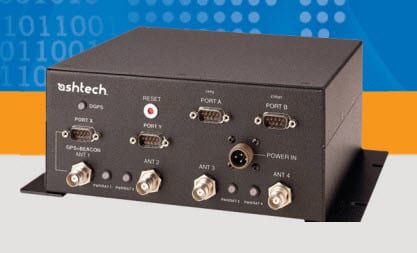

Ashtech ADU5 GPS Heading Receiver

The ADU5 HAS BEEN DISCONTINUED. It has been replaced by the ADU800. See below.

The ADU5 utilizes a 4-antenna x 14-channel receiver configuration for optimal satellite tracking and reliable positioning. It incorporates signals from Satellite Based Augmentation Systems (SBAS) such as WAAS, EGNOS, and MSAT and features an embedded 2-channel 300-kHz beacon receiver for easy DGPS operations.

SKU: ADU5 Categories: , , , Manufacturer: Trimble Navigation

ADU5 GPS Heading Receiver

The ADU5 Receiver has been discontinued. It has been replaced by the ADU800 (see below).

The ADU5 employs “on-the-fly” integer ambiguity resolution techniques using carrier phase measurements from the 4 on-board GPS receivers to provide instantaneous 3-D attitude information. Attitude angular accuracies depend on the spatial separation between the four antennas. ADU5 can provide accuracies of 0.1 degree for heading and 0.2 degree for pitch and roll using a 2-meter antenna separation. ADU5 also features a unique Kalman filter with user-selectable dynamic modes such as ship, aircraft, adaptive, etc., to match operating conditions.
NOTE:  This product has been discontinued. It has been replaced by the ADU800.
