Item #: AV16

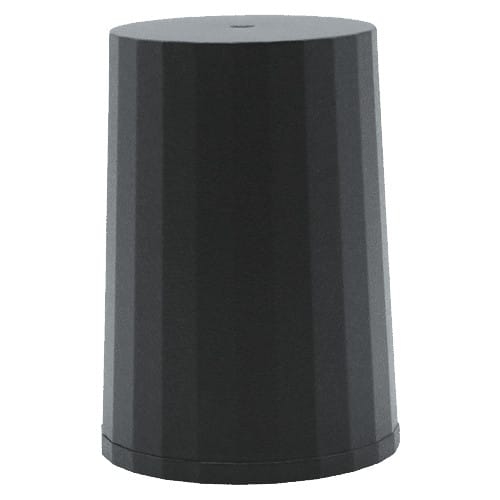

AV16 Antenna

The AV16 from Trimble is a helix based, dual-frequency antenna. Its lightweight, small form factor and low power consumption design make it ideal for UAV applications. The AV16 features a precision tuned, helix element. It offers excellent axial ratio and does not require a ground plane for optimal performance.

SKU: 120982-16 Categories: , Manufacturer: Trimble Navigation

Trimble AV16 Antenna

The Trimble AV16 is a helix based, dual-frequency antenna. It is ideal for UAV applications due to its lightweight, small form factor and low power consumption design. The AV16 features a precision tuned, helix element. It offers excellent axial ratio and does not require a ground plane for optimal performance. In addition, the antenna has an integrated low-loss pre-filter to increase the antenna’s immunity to high amplitude signals from LTE and other cellular signals. The antenna also has an integrated SMA connector for easy screw-on mounting as well as an O-ring to comply with IP67 standards.

Features

  • Low noise preamp: 1.7dB
  • Axial ratio: <0.5dB max
  • LNA Gain: 35dB typ
  • Current: 21mA typ
  • ESD circuit protection: 15KV
  • Invariant performance from: +2.2 to 16VDC
