Item #: GNSS1-TMG-26N

Global GNSS Network Timing Antenna GNSS1-TMG-26N

The PCTEL GNSS1-TMG-26N global GNSS timing reference antennas are designed for long-lasting, trouble-free deployments in congested cell-site applications.

SKU: GNSS1-TMG-26N Categories: , Manufacturer: PCTEL

GNSS1-TMG-26N GNSS Antenna

The PCTEL GNSS1-TMG-26N global GNSS timing reference antennas are designed for long-lasting, trouble-free deployments in congested cell-site applications. The low-noise, high-gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs. The proprietary quadrifiliar helix design, coupled with multistage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. This multiband antenna covers GPS L1, GALILEO E1, GLONASS L1 as well as BEIDOU B1 (COMPASS) frequencies.

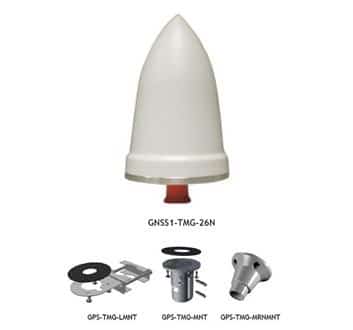

The unique radome shape of this antenna sheds water and ice, while eliminating problems associated with bird perching. PCTEL offers an array of compatible mounting configurations. Custom models or site kits options are also available. This antenna is made of materials that fully comply with provisions stipulated
by EU directives RoHS 2002/95/EC.

The antenna features transient voltage suppression as well as protection from reverse polarity and electrostatic discharge (ESD).


PCTEL Global GNSS Network Timing Antenna GNSS1-TMG-26N Data Sheet
