Item #: GNSS1-TMG-40N

GNSS1-TMG-40N

GNSS1-TMG-40N global GNSS timing reference antennas from PCTEL are designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs.

SKU: GNSS1-TMG-40N Categories: , Manufacturer: PCTEL

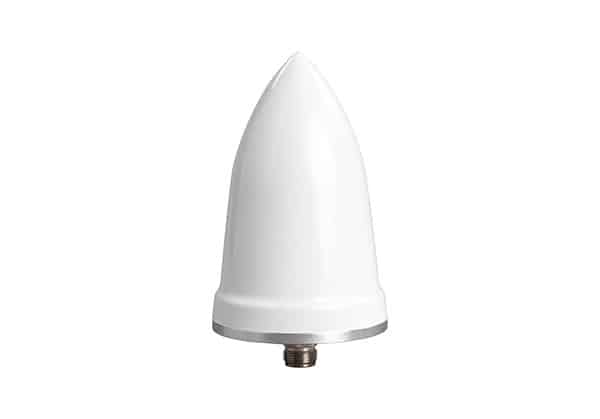

GNSS1-TMG-40N Global GNSS Timing Antennas

PCTEL’s GNSS1-TMG-40N global GNSS timing reference antennas are designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs.

PCTEL’s quadrifiliar helix design and multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. This multi-band antenna covers GPS L1, GALILEO E1, GLONASS L1 as well as BEIDOU B1 frequencies.

The radome shape sheds water and ice, while eliminating problems associated with bird perching. PCTEL offers an array of compatible mounting configurations. Custom models or site kits options are also available. The antenna features transient voltage suppression as well as protection from reverse polarity and electrostatic discharge (ESD).

GNSS1-TMG-40N Global GNSS Timing Antennas Datasheet

Part # Description
GNSS1-TMG-40N Does not include mounting hardware.
GNSS1-TMG-40NMS  Includes universal mounting hardware consisting of collar
(GPS-TMG-MNT) and pipe clamp (GPS-TMG-LMNT)
GNSS1-TMG-40NCM Includes collar mount (GPS-TMG-MNT)
GNSS1-TMG-40NCS Includes economy collar marine mount (GPS-TMG-MRNMNT)
