Item #: GPS-TMG-HR-26N

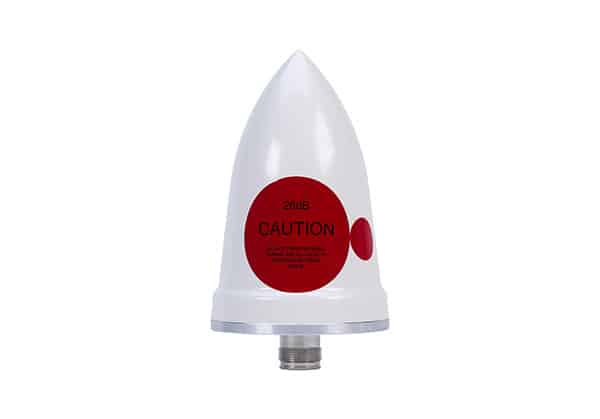

GPS-TMG-HR-26N

The PCTEL GPS-TMG-HR-26 timing reference antennas feature a 26 dB amplifier and narrow band high rejection filtering specifically designed to support long-lasting, trouble-free deployments in congested cell-site applications with severe interference around the GPS L1 frequency.

SKU: GPS-TMG-HR-26N Categories: , Manufacturer: PCTEL

PCTEL GPS-TMG-HR-26N High Rejection 26 dB with Enhanced Narrow Band Filtering

The GPS-TMG-HR-26 timing reference antennas from PCTEL feature a 26 dB amplifier and narrow band high rejection filtering specifically designed to support long-lasting, trouble-free deployments in congested cell-site applications with severe interference around the GPS L1 frequency.

PCTEL’s quadrifiliar helix design and multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas.

The unique radome shape sheds water and ice, while eliminating problems associated with bird perching. The antenna may be purchased by itself or with pipe mounting hardware. Custom models or site kits options are also available. The antenna label and collar mount are color coded red for differentiation purposes.

PCTEL GPS-TMG-HR-26N High Rejection 26 dB with Enhanced Narrow Band Filtering Datasheet

Part # Description
GPS-TMG-HR-26N Antenna Only. Does not include mounting hardware.
GPS-TMG-HR-26NCM Includes red powder coated collar mount (GPS-TMG-MNT-R)
