Item #: GPS-701-GG

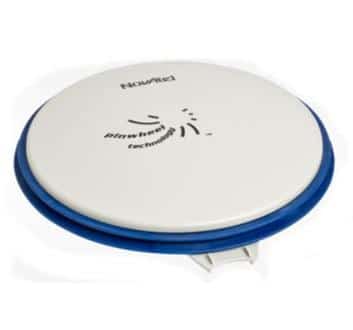

GPS-701-GG Single-Frequency Pinwheel™ GNSS Antenna

The manufacturer has issued and end of life (EOL) notice for this product. We have a limited number still in stock. Contact us for details. Once these are gone, they are gone for good! This products has replaced by the GNSS-501.

This NovAtel pinwheel antenna L1 GNSS antenna offers choke ring performance without the corresponding size and weight.

SKU: GPS-701-GG Categories: , Manufacturer: NovAtel

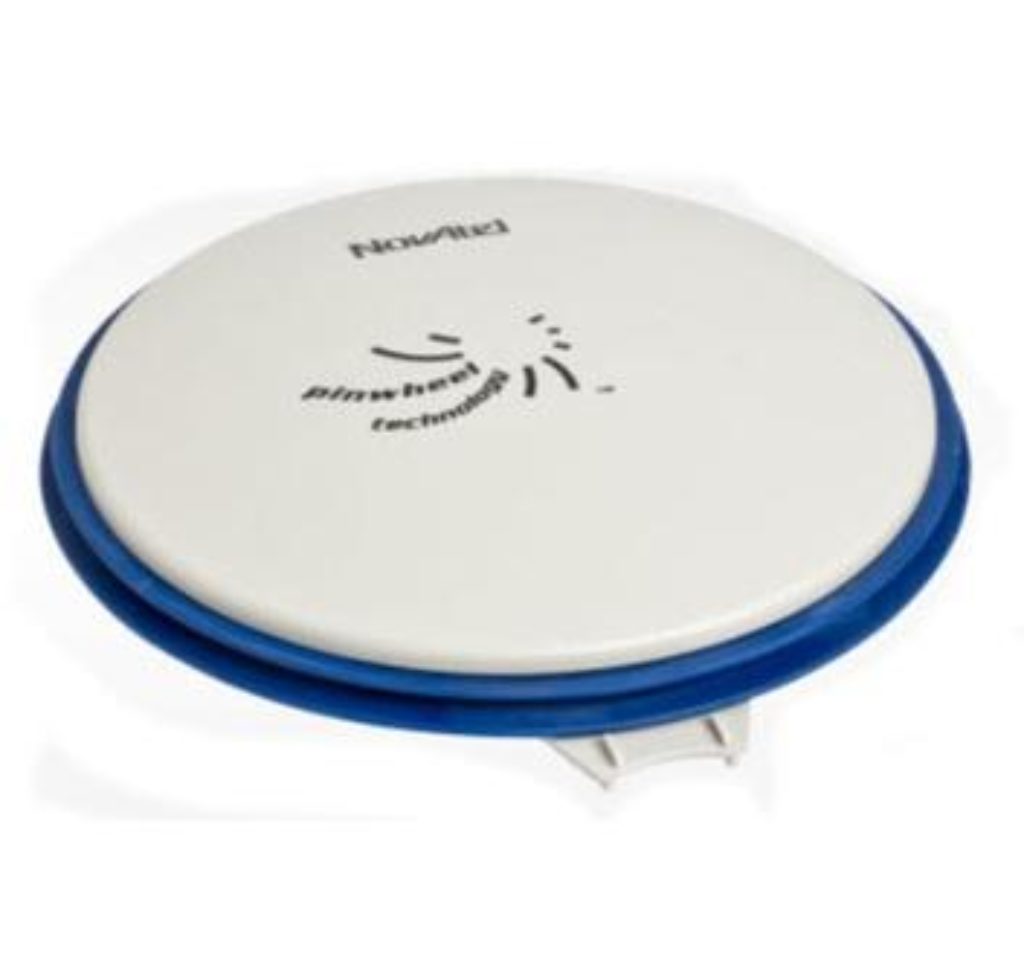

NovAtel GPS-701-GG Pinwheel™ Antenna

The GPS-701-GG is an L1 GNSS antenna from NovAtel offering combined GPS GLONASS signal reception. Customers can use the same antenna for GPS only or dual-constellation applications to increase flexibility and reduce equipment costs.
  • L1 tracking
  • GPS GLONASS signal reception
  • Excellent multipath rejection
  • Highly stable phase center
  • RoHS compliant
  • Choke ring antenna performance without corresponding size and weight
  • Reduces equipment costs and need for future redesign
  • Flexible placement and precision positioning even on long baselines
Stable Phase Center
  • As the azimuth and elevation angle of the satellites change, the phase center remains constant. Signal reception is unaffected by the rotation of the antenna or satellite elevation, so placement and installation of the antennas can be easily completed.
  • 3 dB Pass Band
  • L1: 1588.5 ±23.0 MHz (typical)
  • L1 ±100 MHz: 30 dBc (typical)
  • LnA Gain: 29 dB (typical)
  • Gain roll-off (from Zenith to Horizon)
  • L1: 13 dB
  • Noise figure: 2.0 dB (typical)
  • Nominal Impedance: 50 O
  • Altitude: 9,000 m
