Item #: GPS-703-GGG-HV

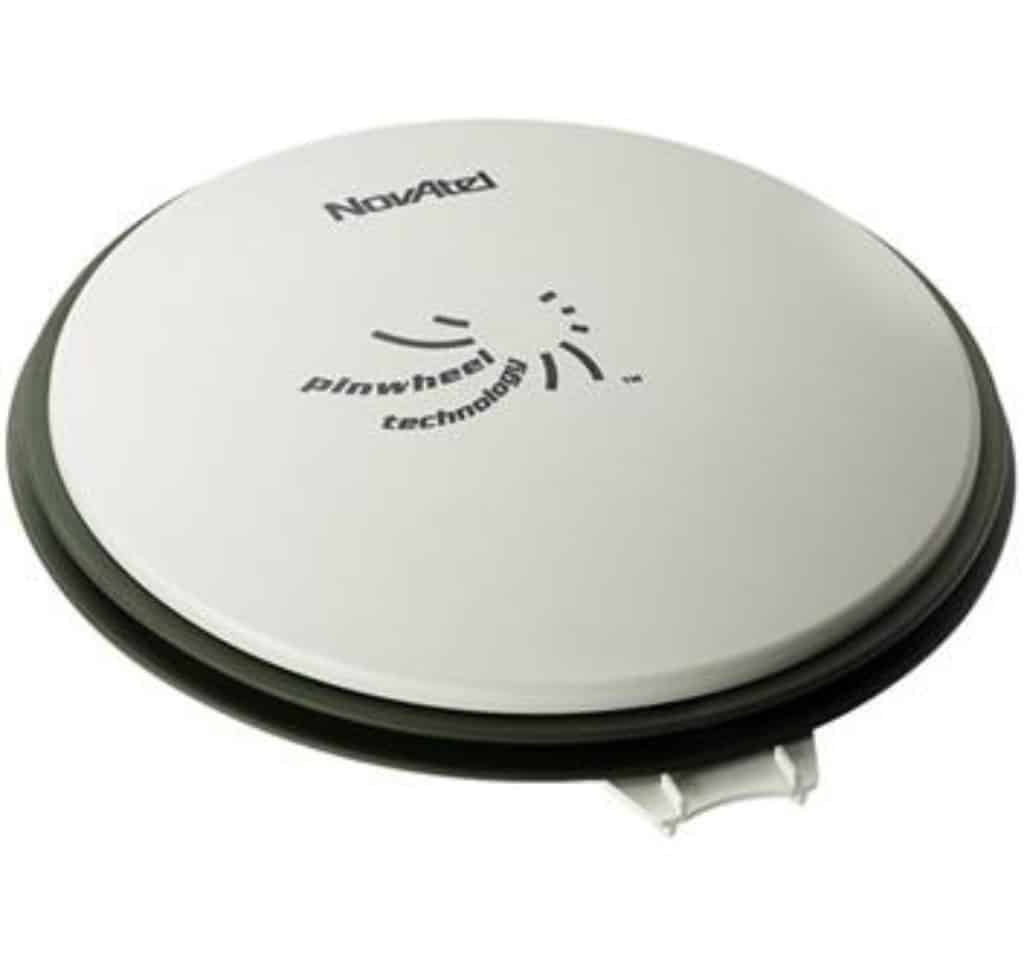

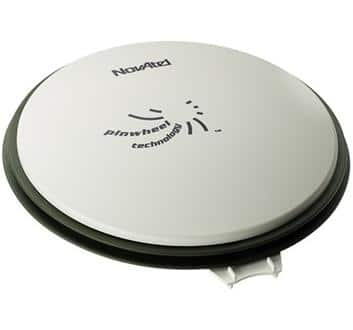

GPS-703-GGG-HV High Vibration Pinwheel Triple Frequency Antenna

Maximize tracking capabilities with the GPS-703-GGG-HV high-vibration pinwheel triple-frequency antenna from NovAtel.

SKU: GPS-703-GGG-HV Categories: , Manufacturer: NovAtel

NovAtel GPS-703-GGG-HV Pinwheel Antenna

Take advantage of the high vibration pinwheel triple-frequency antenna from NovAtel to maximize tracking and performance capabilities with multi-constellation reception. The GPS-703-GGG-HV receives L1, L2, L5 GPS; L1, L2, L3 GLONASS; B1, B2 BeiDou and E1, E5a/b Galileo frequencies. Now, you can use the same antenna for GPS-only, or for dual or triple constellation applications, even under high vibration conditions.
Stable Phase Center
The phase center of this antenna remains constant as the azimuth and elevation angle of the satellites change. Signal reception is unaffected by antenna rotation or satellite elevation, so placement and installation is easy. With the phase center in the same location for the GNSS signals and with minimal phase center variation between antennas, this antenna is ideal for baselines of any length.
Durable with a Future Proof Design
This antenna is enclosed in a durable, waterproof housing that meets MIL-STD-810G for vibration, corrosive environment and salt spray. The GPS-703-GGG-HV is similar in form-factor to NovAtel’s other high performance GPS-700 series antennas, but adds robustness for use in high vibration conditions. The GPS-703-GGG-HV also meets the EU’s directive for restriction of hazardous substances (RoHS), giving integrators the ability to use this design for years to come.
  • L1, L2, L3, L5, B1, B2, E1, E5 and E5a/b
  • GPS GLONASS BeiDou Galileo signal reception
  • Excellent multipath rejection
  • Highly stable phase center
  • RoHS compliant
  • Choke ring antenna functionality without the size and weight
  • Reduces equipment costs and need for future redesign
  • High quality measurements and stable phase center for precision applications

NovAtel GPS-703-GGG-HV High Vibrations Pinwheel Triple-Frequency Antenna Data Sheet

NovAtel 700 Series Brochure
