Item #: HC610

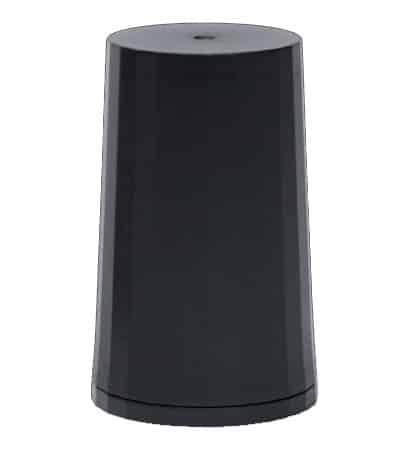

HC610 Active Iridium Helical Antenna

$129.75

The Tallysman HC610 is an active Iridium antenna operating in receive-only mode. The HC610 enables Iridium terminals to be installed tens of meters away. It also features a low-current, low-noise amplifier (LNA) and pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-band cellular signals.

SKU: 33-HC610-28 Categories: , Manufacturer: Tallysman Wireless

 Tallysman HC610 Active Iridium Helical Antenna

The HC610 from Tallysman is an active Iridium antenna that operates in receive-only mode and enables Iridium terminals to be installed tens of meters away. It features a low-current, low-noise amplifier (LNA) and pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-band cellular signals.

The antenna elements are protected by a robust military-grade IP67-compliant plastic enclosure. The enclosure’s base provides two threaded inserts for secure attachment, as well as a rubber O-ring around the outer edge to seal the antenna base and its integrated male SMA connector.

Features

  • LNA gain (28 dB typ.)
  • Axial ratio (≤ 0.5 dB at zenith)
  • ESD circuit protection (15 kV)
  • Supports long cable runs
  • Robust industrial-grade enclosure
  • IP67, REACH, and RoHS compliant

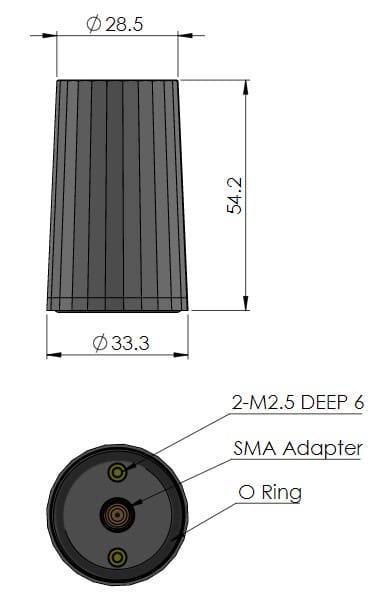

Mechanical Drawing

 Tallysman HC610 Active Iridium Helical Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
