Item #: HC610E

HC610E Embedded Active Iridium Helical Antenna

$110.75

The Tallysman HC610E  is a lightweight, active antenna designed to receive Iridium Satellite Time and Location (STL) signals, used by STL terminals to provide worldwide position, navigation, and timing independent of GPS/GNSS, via a secure encrypted satellite broadcast signal that is strong enough for indoor reception.

SKU: 33-HC610E-28 Categories: , Manufacturer: Tallysman Wireless

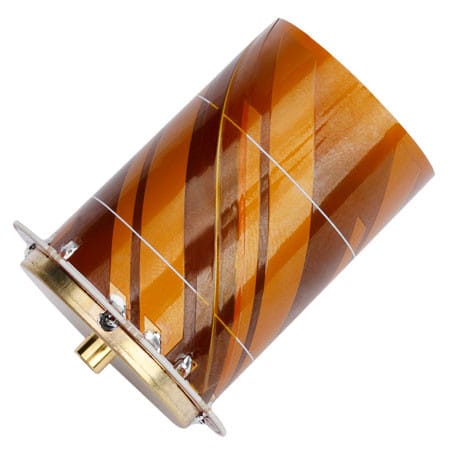

Tallysman HC610E Active Iridium Helical Antenna

The lightweight and compact HC610E from Tallysman features a precision-tuned helix element that provides excellent axial ratios. The 10 gram HC610E operates without the requirement of a ground plane. It is designed to receive Iridium Satellite Time and Location (STL) signals, used by STL terminals to provide worldwide position, navigation, and timing independent of GPS/GNSS, via a secure encrypted satellite broadcast signal that is strong enough for indoor reception.

Features

  • LNA gain (28 dB typ.)
  • ESD circuit protection (15 kV)
  • Excellent axial ratio (≤ 0.5 dB at zenith)
  • Supports long cable runs
  • REACH and RoHS compliant

Benefits

  • Lightweight (10 g)
  • Excellent signal-to-noise ratio
  • Excellent RH circular polarized signal reception
  • Increased system accuracy
  • Industrial temperature range (-40°C – +85°C)
  • Remote SBD antenna

All embedded helicals include an integrated MCX straight female connector.

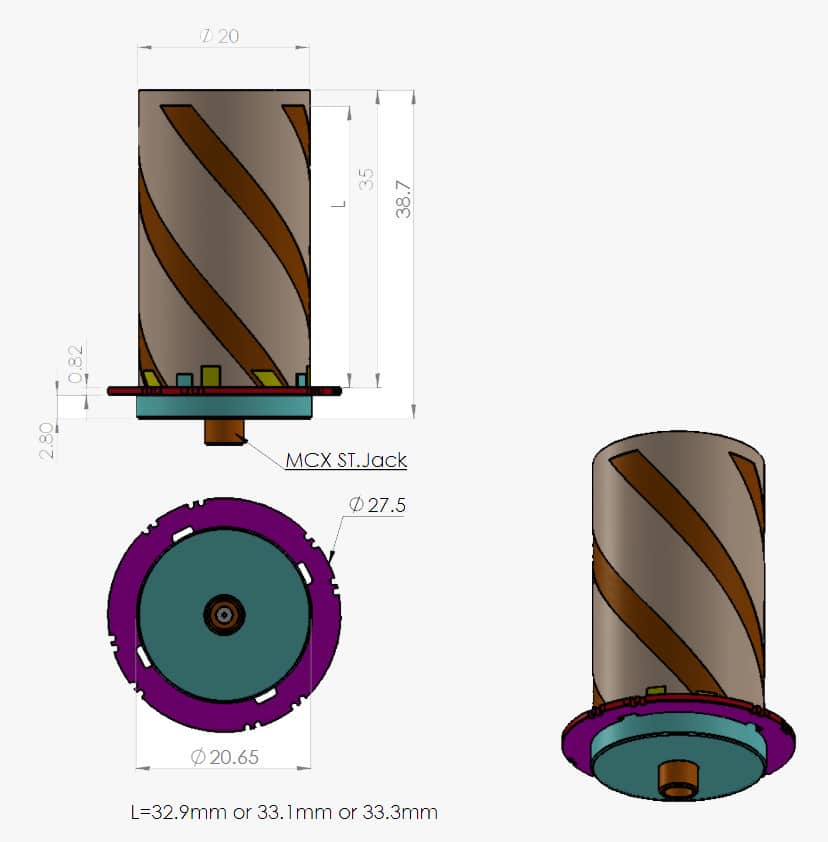

Mechanical Drawing

HC610E Embedded Active Iridium Helical Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
