Item #: HC976E

HC976E Embedded Triple-band Helical Antenna with L-band

$238.99

The Tallysman HC976E embedded helical antenna is designed for precision positioning, covering the GPS/QZSS-L1/L2, QZSS-L6, GLONASS-G1/G2, Galileo-E1/E6, and BeiDou-B1/B3 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)] and L-band correction services.

SKU: 33-HC976E Categories: , Manufacturer: Tallysman Wireless

Tallysman HC976E Embedded Triple-band Helical Antenna with L-band

The HC976E embedded helical antenna is designed for precision positioning, covering the GPS/QZSS-L1/L2, QZSS-L6, GLONASS-G1/G2, Galileo-E1/E6, and BeiDou-B1/B3 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)] and L-band correction services.

Benefits

  • Extremely lightweight (12 g)
  • Ideal for RTK and PPP surveying systems
  • Excellent right-hand circular polarized signal reception
  • Great multipath rejection
  • Increased system accuracy
  • Excellent signal-to-noise ratio
  • Industrial temperature range

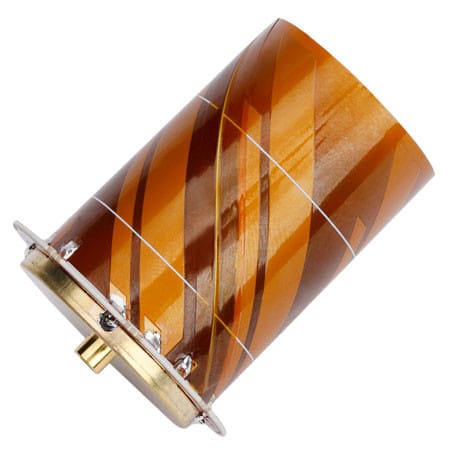

Weighing only 12 g, the lightweight and compact HC976E features a precision-tuned helix element that provides excellent axial ratios and operates without the requirement of a ground plane, making it ideal for a wide variety of applications, including unmanned aerial vehicles (UAVs).

The HC976E features a low current, low-noise amplifier (LNA) that includes an integrated low-loss pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-band cellular signals.

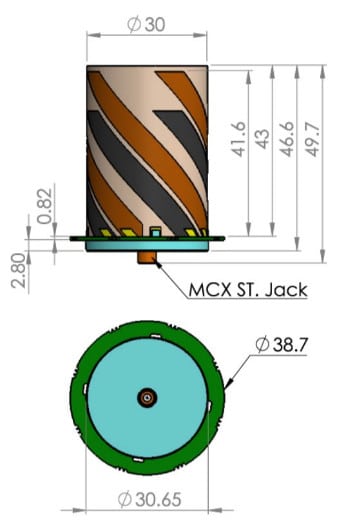

HC976E MECHANICAL DRAWING

A housed version of this antenna is also available. See the related products tab for more information.

HC976E Embedded Triple-band Helical Antenna + L-band Datasheet

Tallysman Lightweight Antennas Brochure

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
