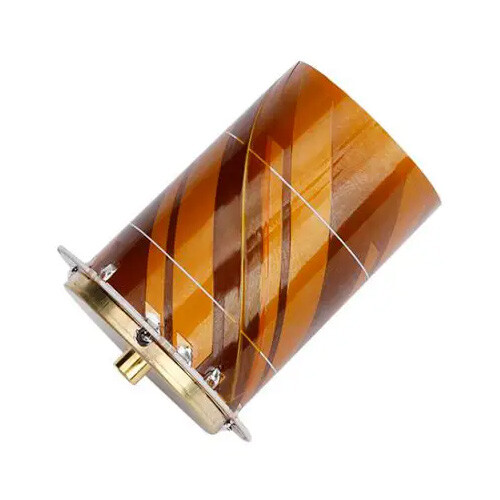

Tallysman by Calian HC979EXF Multi-Constellation Full-Band Antenna
The patented HC979EXF embedded helical antenna from Calian is designed for precision positioning, covering the GPS/QZSS-L1/L2/L5/L6, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b/E6, BeiDou-B1/B2/B2a/B3, and NavIC-L5 frequency bands, including the satellite-based augmentation system (SBAS), as well as L-Band correction services.
Weighing only 8 g, the light and compact HC979EXF features a precision-tuned helical element providing excellent axial ratios and operating without the requirement of a ground plane, making it ideal for a wide variety of applications, including unmanned aerial vehicles (UAVs).
The HC979EXF features a low current, low-noise amplifier (LNA) that includes an integrated low-loss pre-filter. eXtended Filtering was added to the helical antenna line to mitigate new radio frequency bands that interfere with GNSS signals. For example, new LTE bands have been activated, and their signal or harmonic frequencies can affect GNSS antennas and receivers. In North America, Ligado, which will broadcast in the frequency range of 1526 to 1536 MHz, can affect GNSS antennas that receive space-based L-band correction service signals (1539 – 1559 MHz). Similarly, new LTE signals in Europe [Band 32 (1452 – 1496 MHz)] and Japan [Bands 11 and 21 (1476 – 1511 MHz)] have also affected GNSS signals. Lastly, the Inmarsat satellite communication uplink (1626.5 – 1660.5 MHz), commonly used on maritime vessels, can also affect nearby GNSS antennas.
