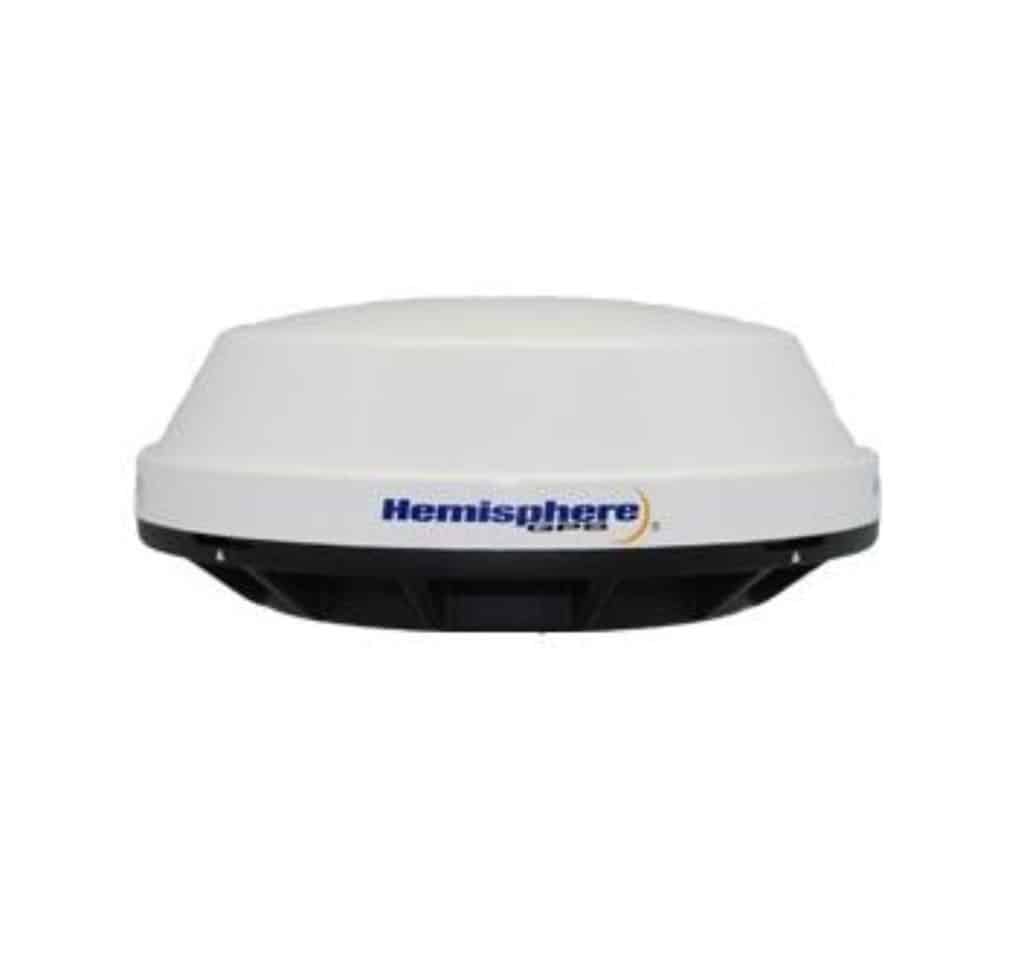

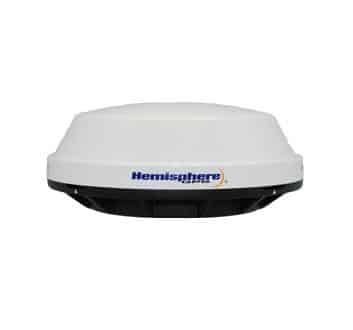

Hemisphere GNSS A52 Geodetic Antenna
The Hemisphere A52™ antenna is a multi-GNSS precision antenna and is ideal for various applications including geodetic surveys, RTK positioning and navigation, precise guidance and machine control. Designed for use in challenging environments, such as near buildings and foliage, because of its superior multipath mitigation, stable phase center and strong SNR’s even at low elevations.
Key Features
Multi-Constellation
- GNSS Reception: GPS L1/L2/L5, GLONASS L1/L2,
- Beidou, SBAS, L-band DGNSS and Galileo E1/E5a and b
- Channels: 270
- GNSS Frequency: 1.165 to 1.253 GHz; 1.525 to 1.613 GHz
- LNA Gain: 30 dB
- LNA Noise: 2.0 dB, typical
Power Input
- Input Voltage: 3.3-12 VDC
- Input Current: 35 mA, typical
Mechanical
- Enclosure: Aluminum base with ASA plastic cap
- Dimensions: 7.6 H x 18.5 D (cm)
- 3.0 H x 7.3 D (in)
- Weight: .78 kg (1.71 lbs)
- Mount: 5/8 inch female thread
- RF Connector: TNC (straight or right angle)
Phase Center Variation
Less than 3 mm at GPS L1 and L2, for elevations above 15 degrees
