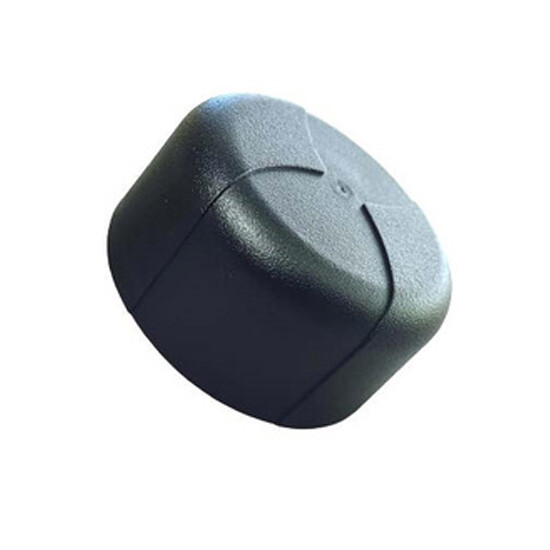

L125GRRKPA-T Multi-Frequency, Multi-Constellation GNSS Antenna
The L125GRRKPA-T is a multi-frequency, multi-constellation passive GNSS antenna covering L1, L2, L5 in GPS as well as major frequencies on other constellations as well as L-band. The L125GRRKPA-T is designed for high-precision applications such as autonomous vehicle navigation, smart survey, devices, and maritime positioning.
The L125GRRKPA-T is built on proprietary Maxtena Helicore® technology. This technology provides exceptional pattern control, polarization purity and high efficiency in a very compact form factor. Low axial ratio ensures that the antenna captures RHCP signal well and mitigates the reflected LHCP signals. Antenna ensures high signal-to-noise ratio (SNR) and GNSS signal tracking from all elevation angles in all types of environments.
Features
- Full GPS, Galileo, Glonass, BeiDou bands coverage including L-Band correction services coverage
- Low Axial Ratio
- Ground plane independent
- Low phase center variation over azimuth and elevation and among different samples
- Rugged IP67 rating
