Item #: 3G+C GNSS

3G+C Four Constellation GNSS Antenna

The new NavXperience 3G+C four constellation (GPS, Galileo, GLONASS, BeiDou / Compass) antenna meets or exceeds phase center eccentricity standards of up to 1 mm. It makes you feel confident as you can always rely on extremely precise signals and meticulous accuracy of the data.

SKU: navX-007 Categories: , Manufacturer: navXperience

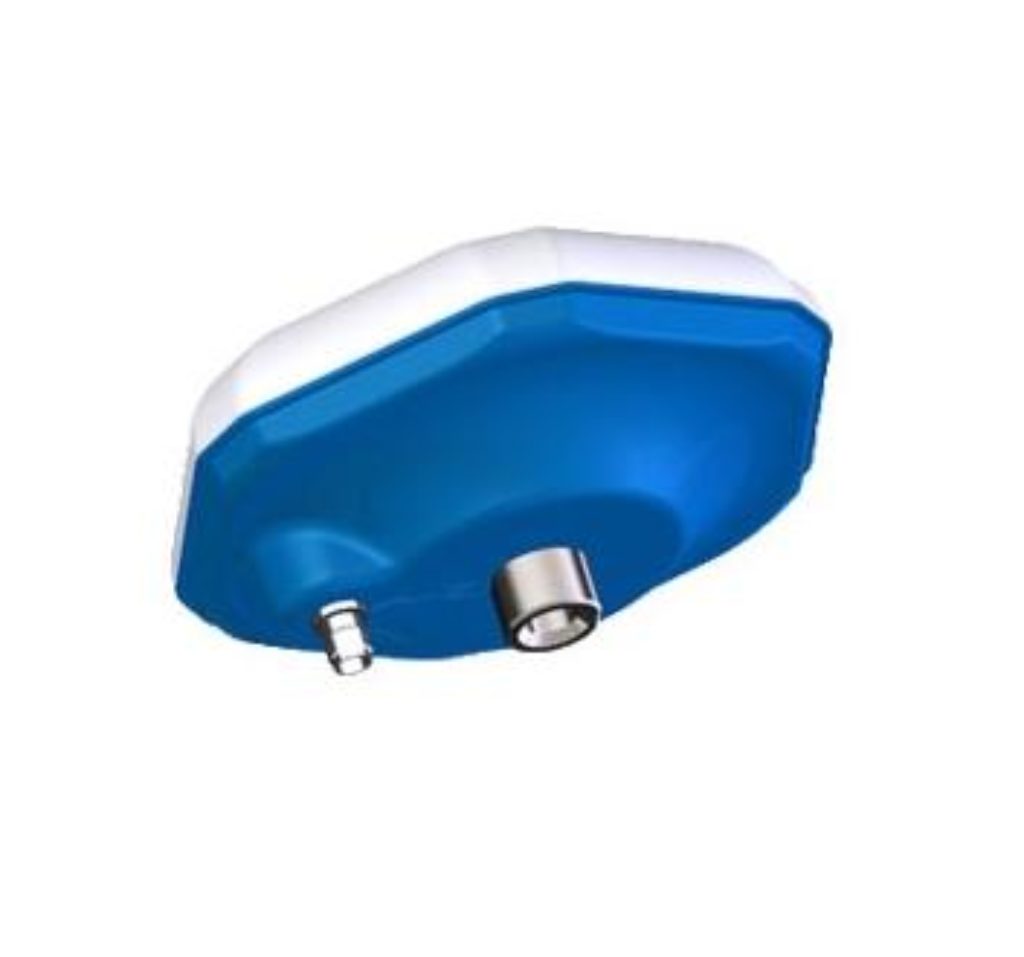

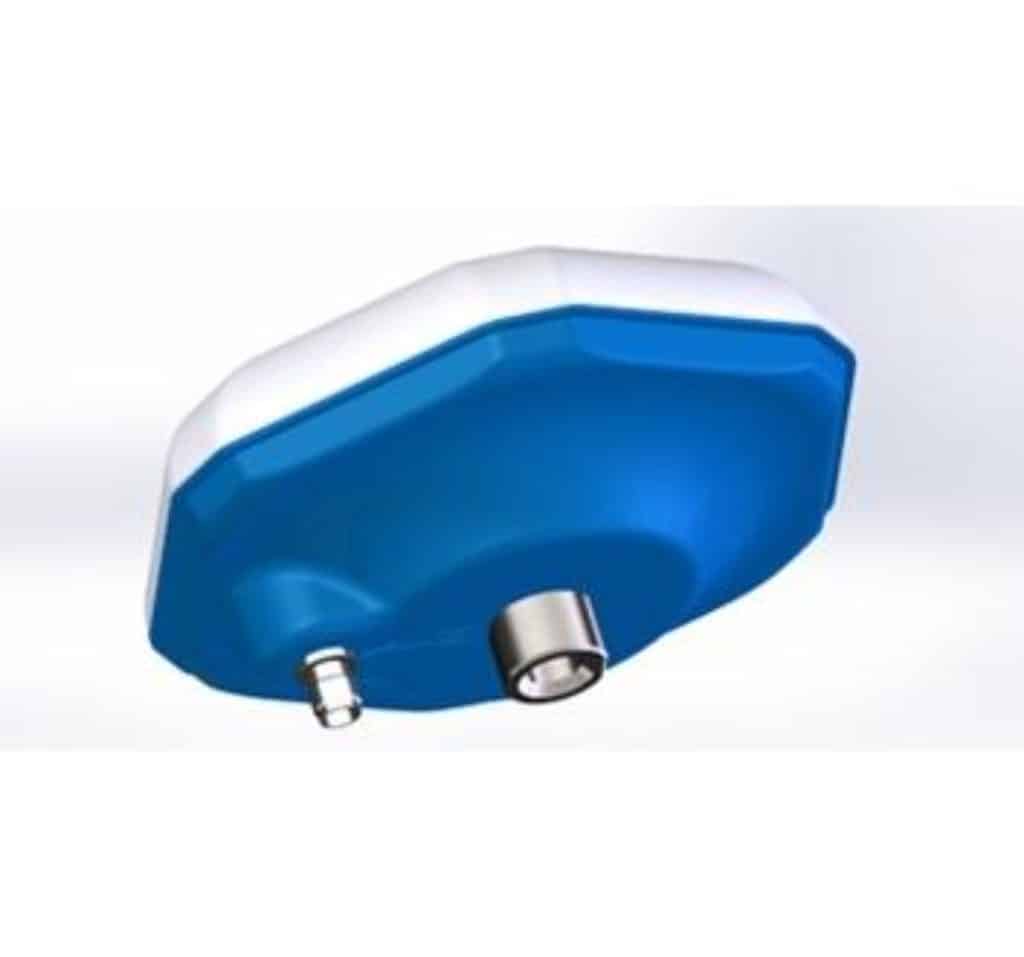

NavXperience 3G+C GNSS Antenna

The 3G+C  multi-constellation (GPS, Galileo, GLONASS, BeiDou / Compass) antenna meets  or exceeds phase center eccentricity standards of up to 1 mm. It makes you feel confident as you can always rely on extremely precise signals and meticulous accuracy of the data.

3G+C is fit for not only for high-precise geodetic applications but also for integration into agricultural- and construction machinery or vehicles.

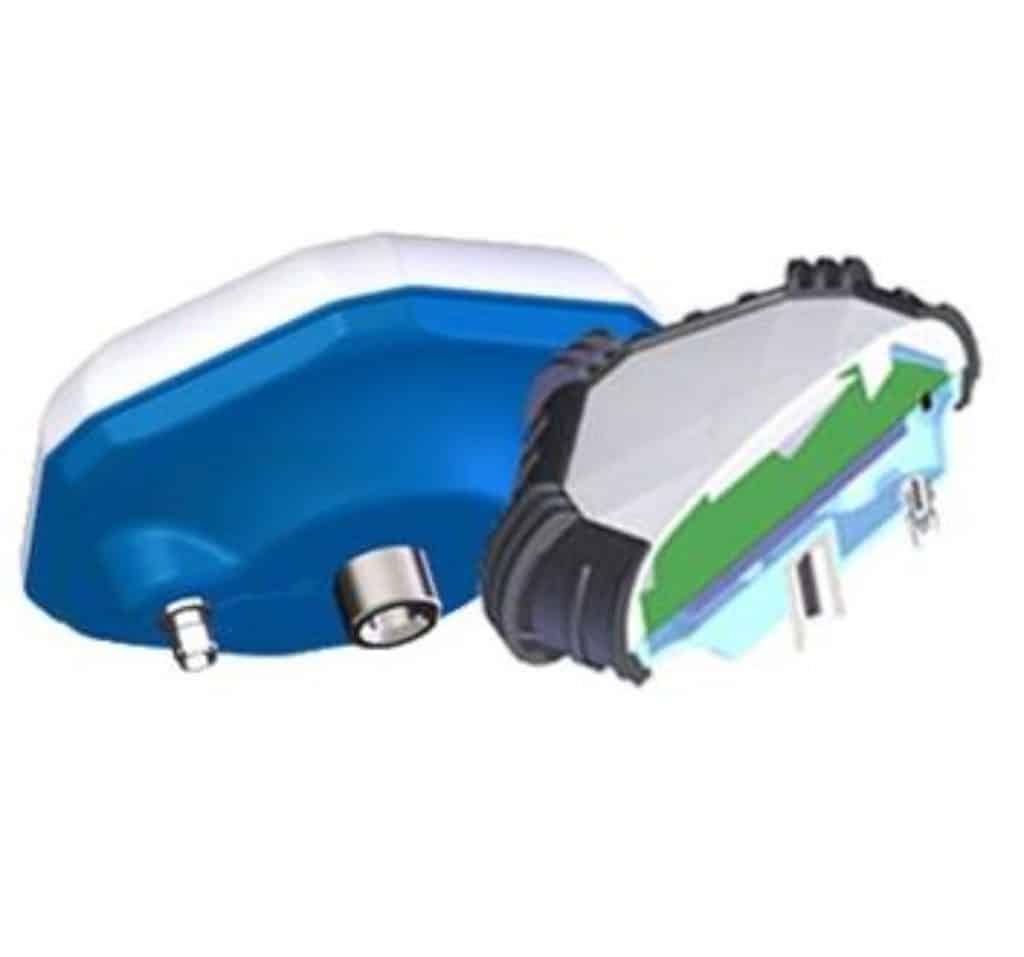

3G+C withstands the harshest and most difficult environmental conditions!  Whether in the desert or in polar zones, 3G+C resists any amount of water, sand, snow or ice. Its hexagonal casing structure and a specially developed laser welded joint, make G+C absolutely water, dust- and shockproof.

3G+C resists any amount of scratches, impacts, extreme vibrations and temperatures.


Machine Control

  • Despite its low weight of 380g the 3G+C antenna works without any problems under the toughest conditions e.g. when used on construction machines. With its fixated components it is absolutely insensitive to vibrations, impacts and sudden speed-ups. The extremely robust housing underwent several long-term tests. Whether on grader, excavator or caterpillar, the 3G+C constantly works reliable.
  • The 5/8 inch stainless steel thread can be mounted on a machine with an open-jaw wrench (size 23). Antenna and TNC connector are tested up to 2.5 bar excess pressure. Therefore the intrusion of humidity is impossible.
  • In agriculture robust antenna systems with a long operational life span are needed. The multifunctional 3G+C antenna meets these requirements by using all known correction signals such as SBAS, WAAS, EGNOS, GAGAN, OMNISTAR, Beacon and the reception of other frequency bands. Whether for parallel guidance systems or the usage in precision farming, any usage is possible with the 3G+C. All positive characeristics that make the 3G+C useable in machine control and the maritime sector are applicable for the agricultural field as well.
See the 3G+C Mobile, the 3G+C Reference and the 3G+C Marine for mobile (survey), reference and marine applications.

NavXperience 3G+C Series Technical Data Sheet

Available Antenna Models
navX-037: 3G+C Reference
navX-027: 3G+C Maritime
navX-017: 3G+C Mobile (Includes Bumper)
navX-007: 3G+C
navX-077: 3G+C Defense (This antenna is for all GNSS signals in military colors.)
navX-050: Bumper Only (Available for all antennas)
