Item #: 1213FW

1213FW Airborne Puck Antenna, 40dB, TNC Female


Airborne Puck Antenna, 40dB, TNC female

SKU: 1213FW Categories: , Manufacturer: PCTEL

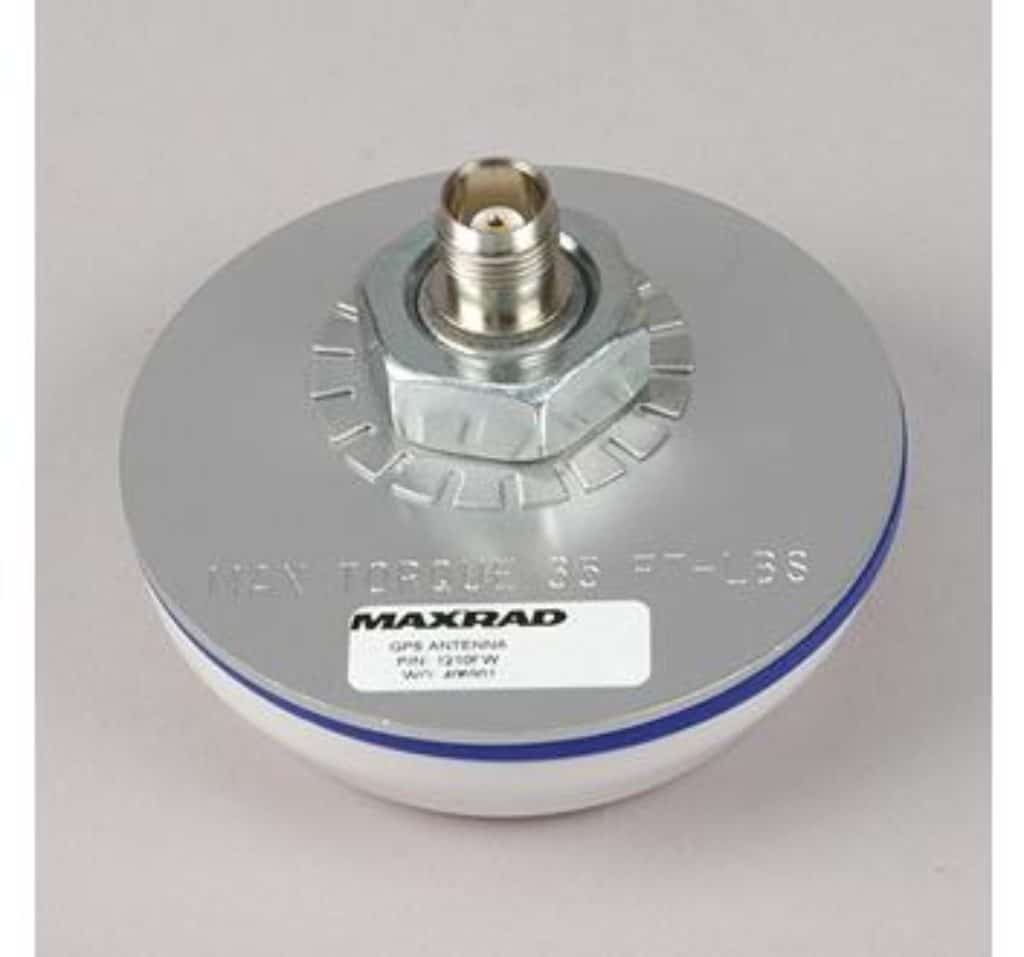

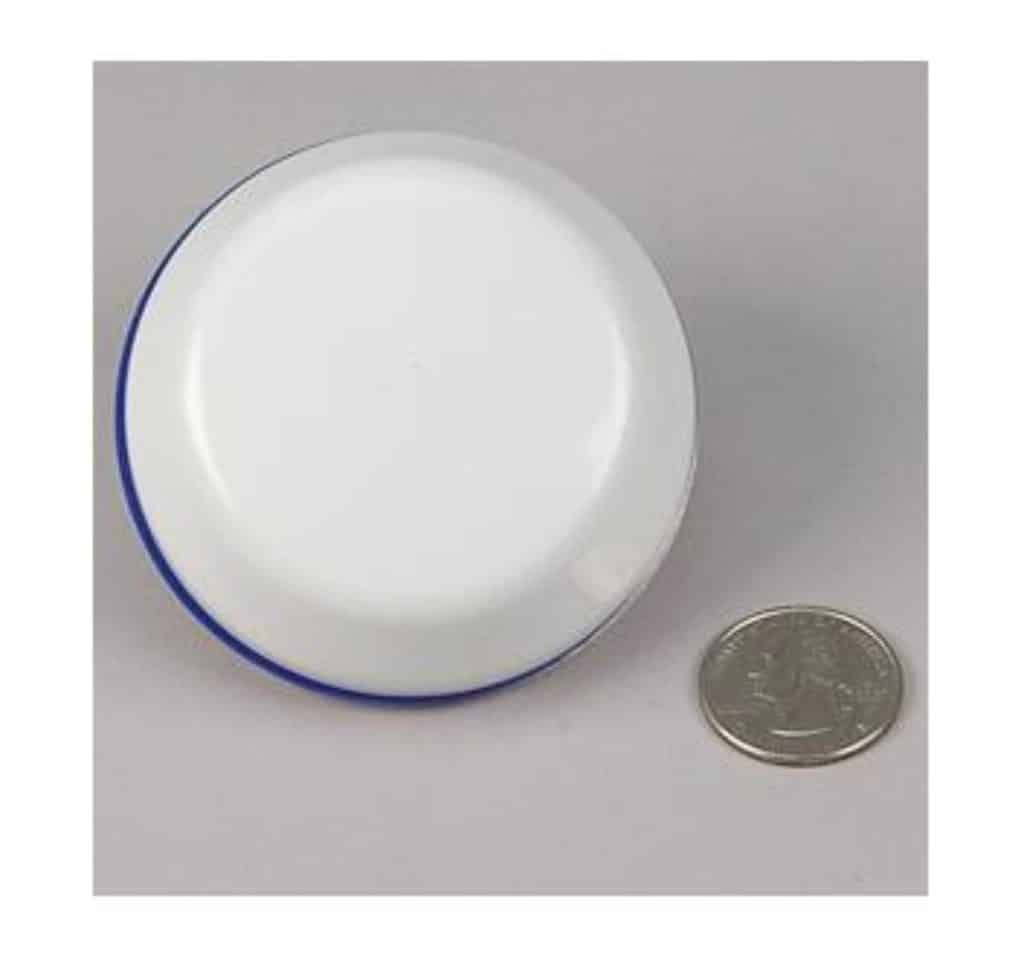

PCTel 1213FW Airborne Puck Antenna

The antennas in the Maxrad® 12100 series are robust, rigorously tested and environmentally sealed units suitable for a wide variety of GPS applications. They are ideal for vehicle tracking, marine or airborne navigation installations requiring maximum security and durability. These antennas have been tested to DO-160 environmental test requirements and are designed to meet Arinc 743 specifications. They feature dual o-ring seals that protect them against severe environmental conditions for reliable, long-lasting performance. Their radome is constructed of high grade polymer resin for UV and abrasion resistance. They will resist all de-icing fluids, jet fuels, and standard cleaning solvents. The antennas in this series are hard mounted through a unique single hole feed structure and include gaskets to prevent air and water leaks. They are available in passive form (no amplifier) or in a variety of active amplified gain configurations.

PCTel Airborne Puck Antenna Data Sheet
