Item #: Polarx5tr

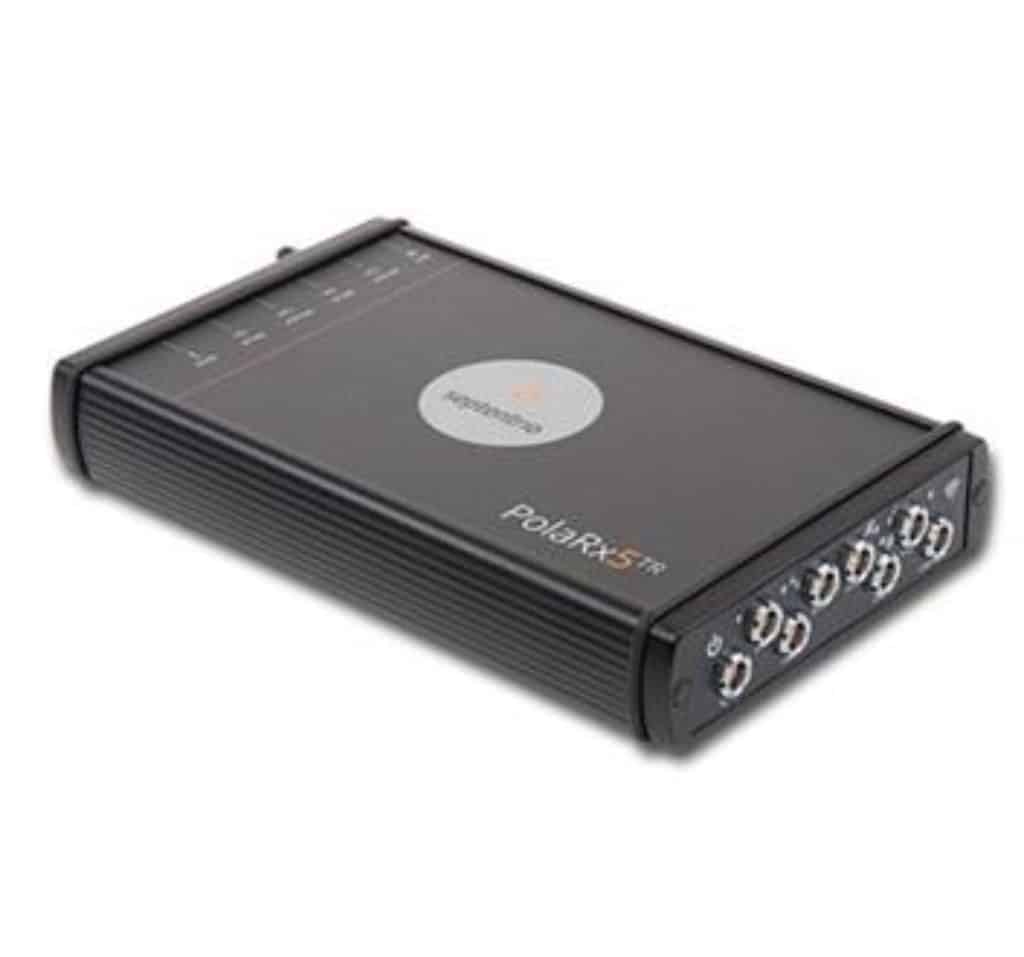

PolaRx5TR Reference Receiver

The Septentrio PolaRx5TR is a multi-frequency GNSS reference receiver dedicated to time and frequency transfer applications, optimized for quality code and carrier phase measurements.

Septentrio PolaRx5TR Reference Receiver

Multi-frequency GNSS Time and Frequency Transfer Receiver

Dedicated to time and frequency transfer applications, the Septentrio PolaRx5TR  receiver is optimized for quality of code and carrier phase measurements. The PolaRx5TR is fully compliant with recommendation CCTF 5 (2015) of the Consultative Committee for Time and Frequency.

Timing

  • The PolaRx5TR incorporates a calibration circuit to measure and compensate for the delay between the PPS input and the internal time reference GNSS technology in addition to the standard inputs for time and frequency latching

Built In Advanced Interference Mitigation Technology

  • Advanced interference analysis and mitigation using adaptive filtering facilitates operation in difficult radio environments, including near chirp jammers.

Networking, remote operation and data logging

  • Communication and (remote) management of PolaRx5TR is made easy with a powerful built-in web interface, which features secured access to all receiver settings and status information, data storage, and fast and robust firmware upgrading.

KEY FEATURES

  • Ultra-precise time synchronization for time transfer applications
  • PPS input internal delay auto-calibration
  • CGGTTS V2E compliant
  • Tracks all visible signals (GPS, GLONASS, GALILEO, BEIDOU, IRNSS)
  • High-precision, low-noise measurements
  • Unique interference monitoring and mitigation
  • Powerful web interface and logging tools
Septentrio PolaRx5TR Multi-frequency GNSS Time and Frequency Transfer Receiver Data Sheet
