Item #: SF-5050

SF-5050 StarFire GNSS Receiver

John Deere has discontinued the manufacturer and sale of ALL hardware products under the NAVCOM brand effective June 30, 2020. NavtechGPS carries many other hardware brands that can perform the same types of tasks. Contact us for options.

Powered by the new Onyx GNSS Engine, the Navcom SF-5050 provides 255 channel tracking, including multi-constellation support for GPS and GLONASS with 5cm-level position accuracy anywhere in the world. The SF-5050 replaces the SF-3050 StarFire GNSS Receiver.

SKU: SF-5050 Categories: , , , Manufacturer: NavCom Technologies

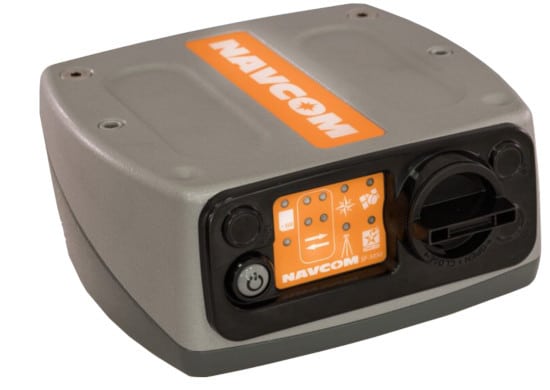

NAVCOM SF-5050 Receiver

John Deere has discontinued the manufacturer and sale of ALL hardware products under the NAVCOM brand effective June 30, 2020.

Product purchased prior to June 30 are deliverable through October 31, 2020.

Signal Subscriptions Purchased After June 30:
You can still purchase signal subscriptions for your SF-3050 and SF-5050 series hardware from John Deere after June 30, 2020. HOWEVER, You will need to upgrade your SF-3050 and SF-5050 series firmware before the end of 2020 in order to keep using the existing signals. The signal structure will change at that point and the free upgrade will be required. For further information please visit www.navcomtech.com.

End of Technical Support:
SF3050 – April 30, 2024;
SF5050 – October 31, 2025

NavtechGPS carries many other hardware brands that can perform the same types of tasks should you want to switch to a brand that will continue past the above deadlines.

NavComs SF-5050 integrated StarFireTM/RTK ExtendTM receivers provide 5cm-level position accuracy, anywhere in the world, anytime. Powered by the new Onyx GNSS Engine, the SF-5050 provides 255 channel tracking, including multi-constellation support for GPS and GLONASS. It also provides patented interference rejection and anti-jamming capabilities.


The SF-5050 is fully upgradeable allowing users to upgrade from an autonomous receiver to a variety of augmentation capabilities with just a software bundle upload. This flexible framework makes the SF-5050 ideal for any application.

The SF-5050 replaces the SF-3050 StarFire GNSS Receiver.

FEATURES

All-in-view parallel tracking with 255 channels

SBAS (WAAS/EGNOS/MSAS/GAGAN) tracking

Built-in 3-channel StarFire receiver and demodulator:

  • GPS: L1 CA, P1,L2 L2CA, P2, L2CL, L5 L5Q
  • GLONASS: G1 G1C, G2 G2C
  • Beidou: B1 B1l, B2 B2I
  • Galileo: E1 E1B, E5A E5AQ, E5B E5BQ

High sensitivity / low signal level tracking

Fast acquisition / re-acquisition

Superior interference suppression (both in-band & out-of-band)

Patented multipath rejection

StarFire Over IP delivery (Optional)

RTK ExtendTM

Over-the-air StarFireTM licensing option

Minimal data latency

Data message formats:

  • NMEA-0183: ALM, DTM, GBS, GFA, GGA, GLL, GNS, GRS, GSA, GST, GSV, HDT, MLA, RMC, RRE, ROT, TTM, VTG, ZDA, PNCT, NCT proprietary
  • Differential Correction: SBAS and StarFire (proprietary)
  • RTK Correction: RTCM 2.3, 3.0, and MSM, NavCom Proprietary UltraRTKTM
  • Receiver Control: NavCom proprietary commands
Configurable as RTK base or rover

Programmable output rates

Event marker input

1 PPS output

Communication Ports: 4 x RS232 (2 – Changeable to RS422) ; 2 x USB 2.0 (Device); Ethernet (10T/100T)

4 to 32GB SD Card (customer supplied)

The NavCom SF-5050 Data Sheet

97-310041-3303:  SF-5050 Software Bundle "G" includes GPS L1/L2/L5, GLONASS G1/G2, GALILEO E1/E5a ready, StarFire enabled, 5Hz update rate.

97-310041-3304: SF-5050 Software Bundle "S" includes GPS L1/L2/L5, GLONASS G1/G2, GALILEO E1/E5a ready, StarFire enabled, RTK enabled, 5Hz update rate.

97-310041-3305:  SF-5050 Software Bundle "M" includes GPS L1/L2/L5, GLONASS G1/G2, GALILEO E1/E5a ready, StarFire enabled, 1PPS/Event, 25Hz update rate.
