Item #: AV59

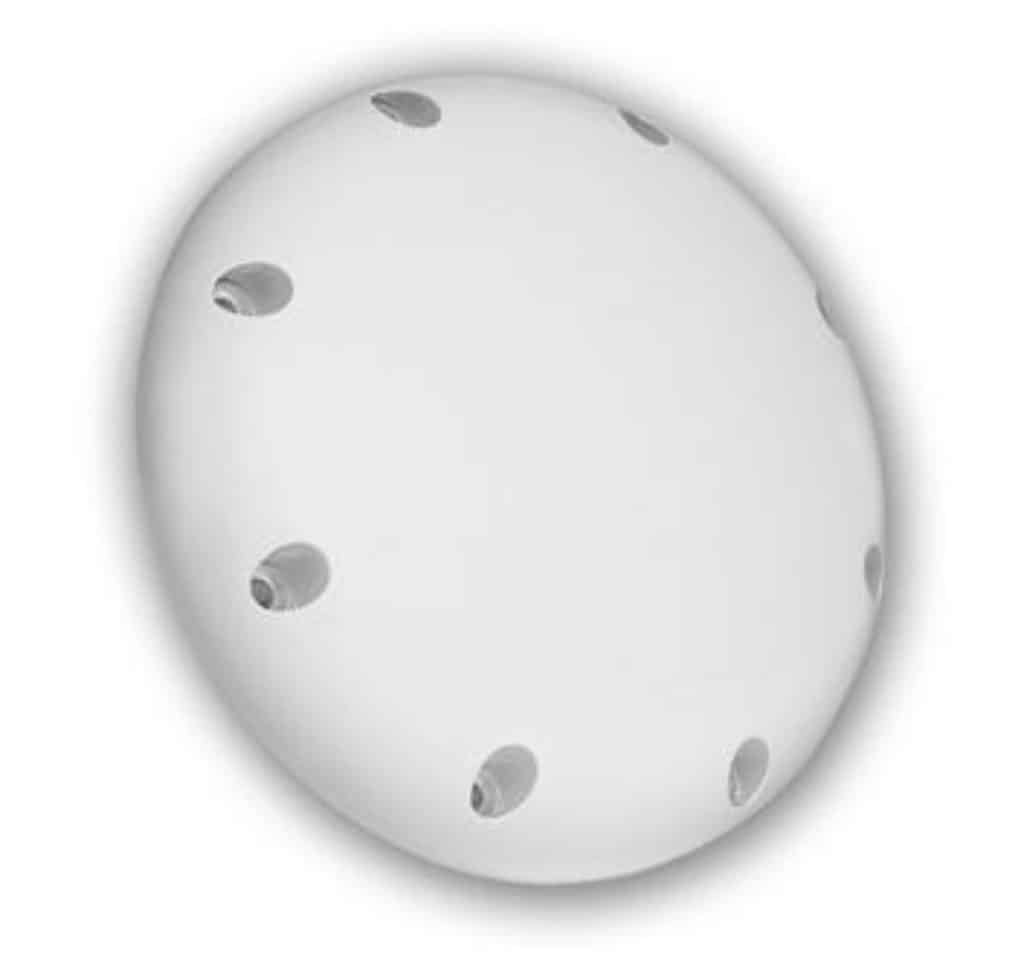

Trimble AV59 GNSS Antenna

The Trimble AV59 GNSS antenna offers support for present and future GNSS signals, including GPS L5, GLONASS and Galileo.

SKU: 98042 Categories: , Manufacturer: Trimble Navigation

Trimble AV59 Aviation GNSS Antenna

The AV59 GNSS aviation antenna has been designed to support centimeter level accuracy for aerial, land and marine applications. The rugged 8-hole bulkhead mounting allows the antenna to be used rugged environments. The AV59 offers support for present and future GNSS signals, including GPS L5, GLONASS and Galileo to ensures that the antenna will operate with your present and most likely future GNSS receivers. The Trimble AV59 Aviation GNSS antenna offers comprehensive support for present and future GNSS signals, including GPS L5, GLONASS and Galileo.


Robust Low-multipath. This antenna resists unwanted signal interference or multipath, which can cause inaccurate measurements. Multipath is caused by signals being reflected from surfaces such as the ground, surrounding trees, or buildings.

Aviation type of design. The antenna is an aviation type of design. The bulkhead mounting ensures only the rugged radome is exposed to the elements. This is an ideal design for customers building machine control systems. The antenna can be mounted flush with the vehicle surface or on the top of a pole mount. The TNC connector is located on the underside of the unit ensuring the attached cable is also protected from the environment.

The antenna can be mounted flush with the vehicle surface or on the top of a pole mount. The TNC connector is located on the underside of the unit ensuring the attached cable is also protected from the environment.

KEY FEATURES

  • Comprehensive GNSS support, including GPS Modernization signals, GLONASS, and Galileo
  • Rugged Package ideal for vehicle applications
  • Bulkhead Mounting
  • Sub-centimeter phase center repeatability

Trimble AV59 Data Sheet

Trimble Antenna Brochure
