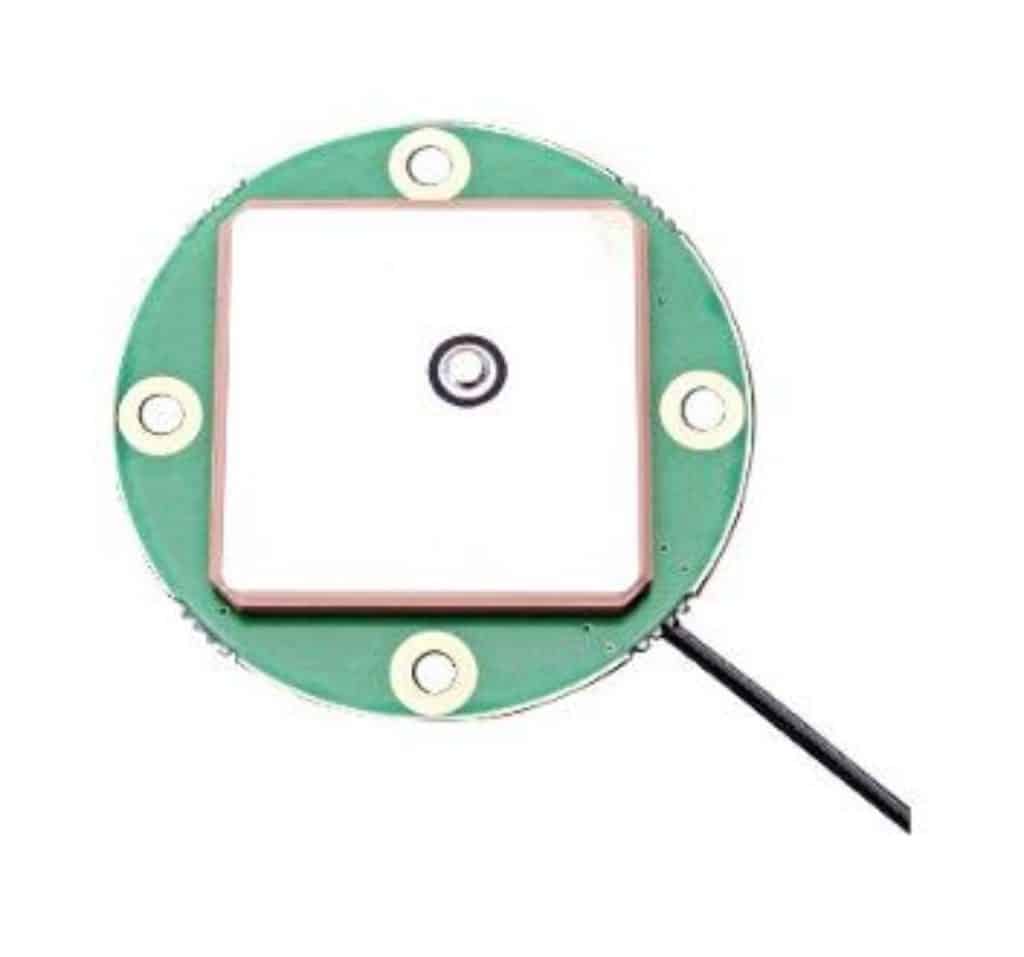

TW1322 Embedded GPS/GLONASS Antenna

The TW1320/TW1322 is a high performance OEM GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1575 to 1606 MHz). It features a patch element with 40% wider bandwidth than previously available in this format. Unlike its competitors, both GPS-L1 and GLONASS signals are included in the 1dB RHCP received power bandwidth.

SKU: 33-1322 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW1322

The Tallysman TW1322 is a high performance OEM GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band. It features a patch element with 40% wider bandwidth than previously available in this format. Both GPS-L1 and GLONASS signals are included in the 1dB RHCP received power bandwidth.

Features

  • Very low noise LNA: 1 dB (TW1320)
  • High rejection SAW filter
  • Low current draw: 10mA
  • 1dB bandwidth 1575MHz-1606MHz
  • Temperature compensating LNAs

Benefits

  • Great multipath signal rejection
  • Great signal to noise ratio
  • Great out of band signal rejection
  • Compact form factor
  • Consistent response in all operating temperatures

A tight pre-filter is included with part number TW1322 to protect against saturation by high level sub-harmonics and L-Band signals. The TW1322 is the prefiltered variation of the TW 1320

For further details, please download the Data Sheet.

Tallysman Wireless TW1322 Embedded GPS/GLONASS Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
