Item #: TW1721/TW1722

TW1721/TW1722 Wideband Antenna

The TW1721 Wideband GNSS antenna provides truly circular response across the full frequency of the antenna providing superior multi-path signal rejection resulting in higher accuracy of position and time.

SKU: 33-1721/33-1722 Categories: , Manufacturer: Tallysman Wireless

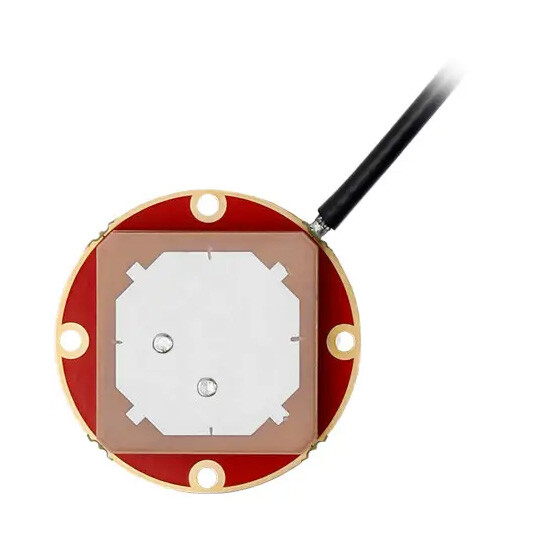

Tallysman TW1721 / TW1722 Wideband GNSS Antenna

The TW1721 / TW1722 is a compact, wideband Accutenna™ technology GNSS antenna that provides accurate circular reception for all upper L- band GPS, GLONASS, Beidou, and Galileo signals ( L1, G1, B1, B1 BOC, B1-2, E1) and associated augmentation signals (WAAS, EGNOS and MSAS).

The TW1721/TW1722 provides truly circular response across the full frequency of the antenna providing superior multi-path signal rejection resulting in higher accuracy of position and time.

Features

  • Accutenna™ Technology
  • Smallest high accuracy OEM L1 antenna
  • High rejection SAW filter
  • Low noise LNA: 1 dB typ
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for wearable devices
  • Improved carrier phase linearity
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

OEM antennas are easily detuned by the local environment. Tallysman offers custom tuning services for optimized integration into OEM end-user modules.

Tallysman TW1721 / TW1722 Wideband GNSS Antenna

Premium Antennas for Unmanned Vehicles (UAVs)

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
