Item #: TW1825

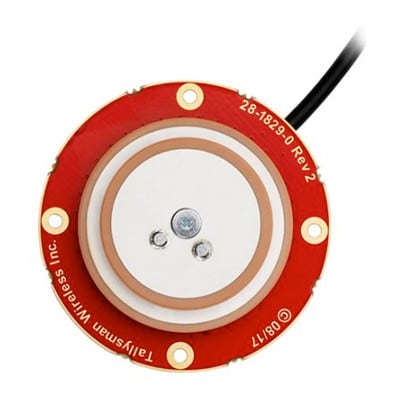

TW1825 Accutenna Embedded Dual Band GNSS Antenna

The Tallysman TW1825 embedded dual band GNSS antenna with Accutenna® technology supports coverage for GPS/QZSS L1/L5, GLONASS G1, Galileo E1/E5, BeiDou B1/B2a, NavIC E5 as well as SBAS (WAAS/EGNOS/GAGAN/MSAS).

SKU: 33-TW1825 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW1825 Accutenna® Embedded Dual Band GNSS Antenna

The Tallysman TW1825 is an OEM antenna ideal for dual frequency positioning where minimizing weight is essential. The 37-gram TW1825 embedded dual band GNSS antenna provides axial ratio and tight phase center variation (PCV). The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The TW1825 features a precision tuned, circular dual feed, stacked patch element.  The TW1825 also includes an LNA pre-filter that provides enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.

Applications

  • Airborne Unmanned Autonomous Vehicles
  • Precision GPS Position
  • Dual Frequency
  • RTK Receivers Mission Critical
  • GPS Timing Military & Security
  • Network Timing and Synchronization

Benefits

  • Lightweight (37g)
  • Ideal for L1/L5 RTK survey systems
  • Great multi-path rejection
  • Increased system accuracy
  • Excellent signal-to-noise ratio
  • IP67, REACH and RoHS compliant

Features

  • Very low Noise Preamp, 2.5 dB Axial ratio: <2 dB typ.
  • Tight Phase Center Variation
  • LNA Gain 26 dB typ.
  • Low current: 12 mA typ.
  • ESD circuit protection: 15 KV

Coverage

  • GPS L1/L5, GLONASS G1, Galileo E1/E5a, BeiDou B1/B2a, Navic E5

Tallysman TW1825 Embedded GNSS Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
