Item #: TW1889

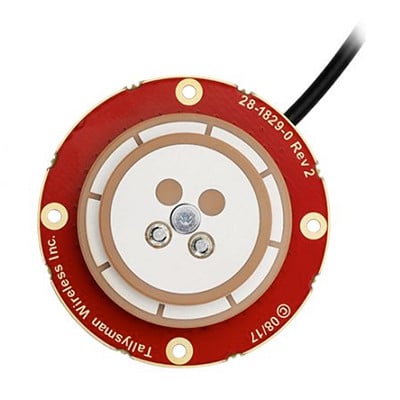

TW1889 Embedded Dual Band GNSS Antenna

The TW1889 embedded dual band GNSS antenna from Tallysman supports coverage for GPS/QZSS L1/L2, GLONASS G1/G2/G3, Galileo E1/E5b, BeiDou B1/B2, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS). It is precision tuned and pre-filtered.

SKU: 33-1889 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW1889 Accutenna® Pre-filtered Embedded Dual Band GNSS Antenna

The 37-gram TW1829 embedded dual band GNSS antenna provides excellent axial ratio and tight Phase Centre Variation (PCV). It is ideal for dual frequency positioning where minimizing weight is important.

The TW1829 features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.

The TW1829 also includes an LNA pre-filter that provides enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.

Tallysman offers custom tuning services to optimize the performance of the TW1829 for any OEM installation environment.

Applications

  • Airborne Unmanned Autonomous Vehicles
  • Precision GPS Position
  • Dual Frequency RTK Receivers
  • Mission Critical GPS Timing
  • Military & Security
  • Network Timing & Synchronization

Features

  • Very low Noise Preamp, 2.5 dB
  • Axial ratio: < 2 dB typ.
  • Tight Phase Center Variation
  • LNA Gain 26 dB typ.
  • Low current: 12 mA typ.
  • ESD circuit protection: 15 KV
  • Invariant performance from: +2.5 to 16 VDC

Benefits

  • Lightweight (37g)
  • Ideal for L1/L5 RTK survey systems
  • Great multi-path rejection
  • Increased system accuracy
  • Excellent signal-to-noise ratio
  • P67, REACH and RoHS compliant

Coverage

  • GPS/QZSS L1/L2, GLONASS G1/G2/G3, Galileo E1/E5b, BeiDou B1/B2, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS).

Tallysman TW1889 Embedded Dual Band GNSS Antenna Data Sheet
