TW2012 GPS Brickwall Antenna
The TW2012 by Tallysman Wireless is a professional grade, dual-filtered magnet mount, GPS L1 antenna, specially designed for precision positioning and timing applications in environments characterized by high L-Band RF fields.
The TW2012 features a precisely tuned ceramic patch element, a tight SAW pre-filter, a first LNA gain stage, a mid-section SAW filter and a final gain stage. It covers the GPS L1 and SBAS (WAAS/EGNOS/MSAS) frequency band (1572.5 to 1578 MHz), and it offers unparalleled out-of-band signal rejection and excellent axial ratio for improved signal reception and multipath rejection.

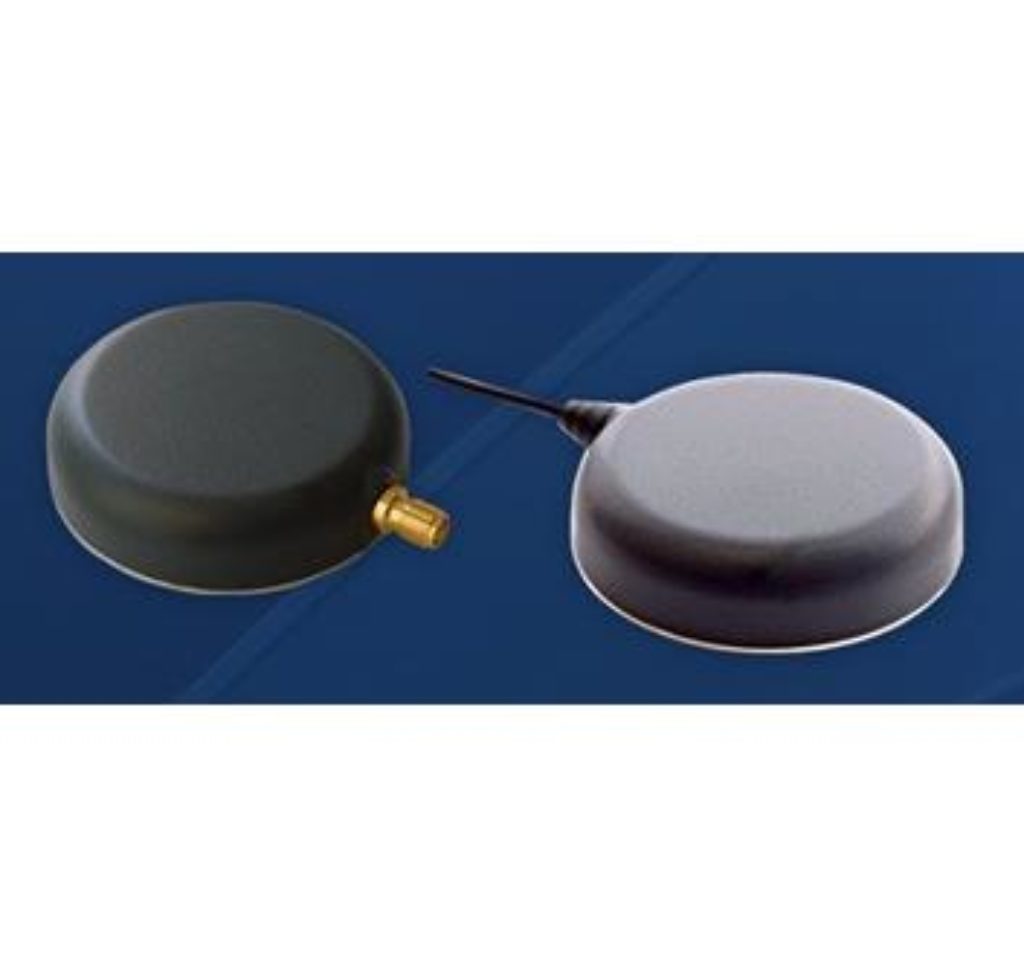

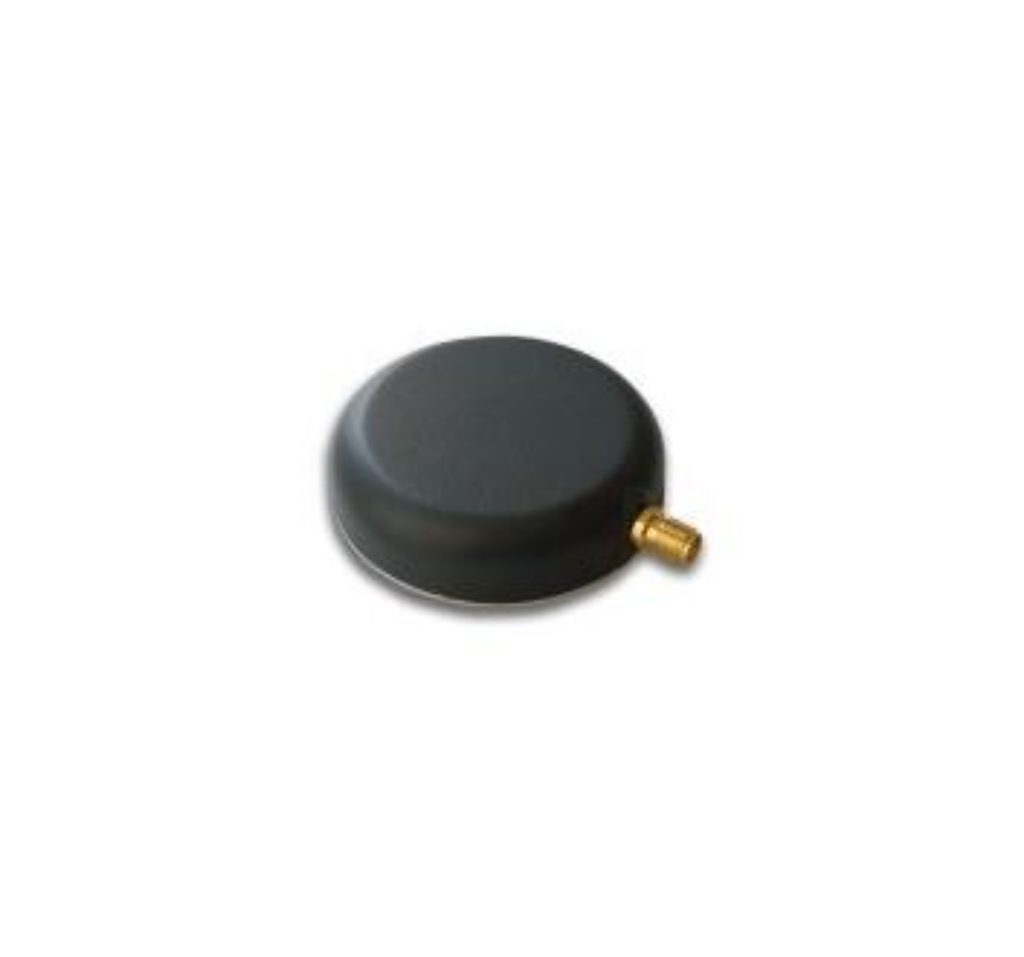

The TW2012 is housed in a compact, industrial-grade weather-proof, magnet mount enclosure, and comes with a bulkhead SMA female connector or with 5 metres of cable and a wide range of connector.
- Narrow pass-band SAW pre-filter
- 3 dB Noise Figure (including pre-filter)
- Axial ratio: <4dB at Zenith
- High LNA gain: 27 dB typ.
- Low current: 10 mA typ.
- ESD circuit protection: 15 KV
- Wide voltage input range: 3.0 to 10 VDC
TW2000 Family of Products
ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.
This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.
|00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
|16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**
Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm
Connector Options Without Cable:
07 = SMA female (jack) bulkhead
** Premiums apply. Please contact NavtechGPS for information and pricing
