Item #: TW2106

TW2106 Embedded GPS L1 Antenna

The TW2106 / TW2108 employ Tallysmans unique Accutenna™ technology covering the GPS L1 and SBAS frequency bands.

SKU: 33-2106 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2106

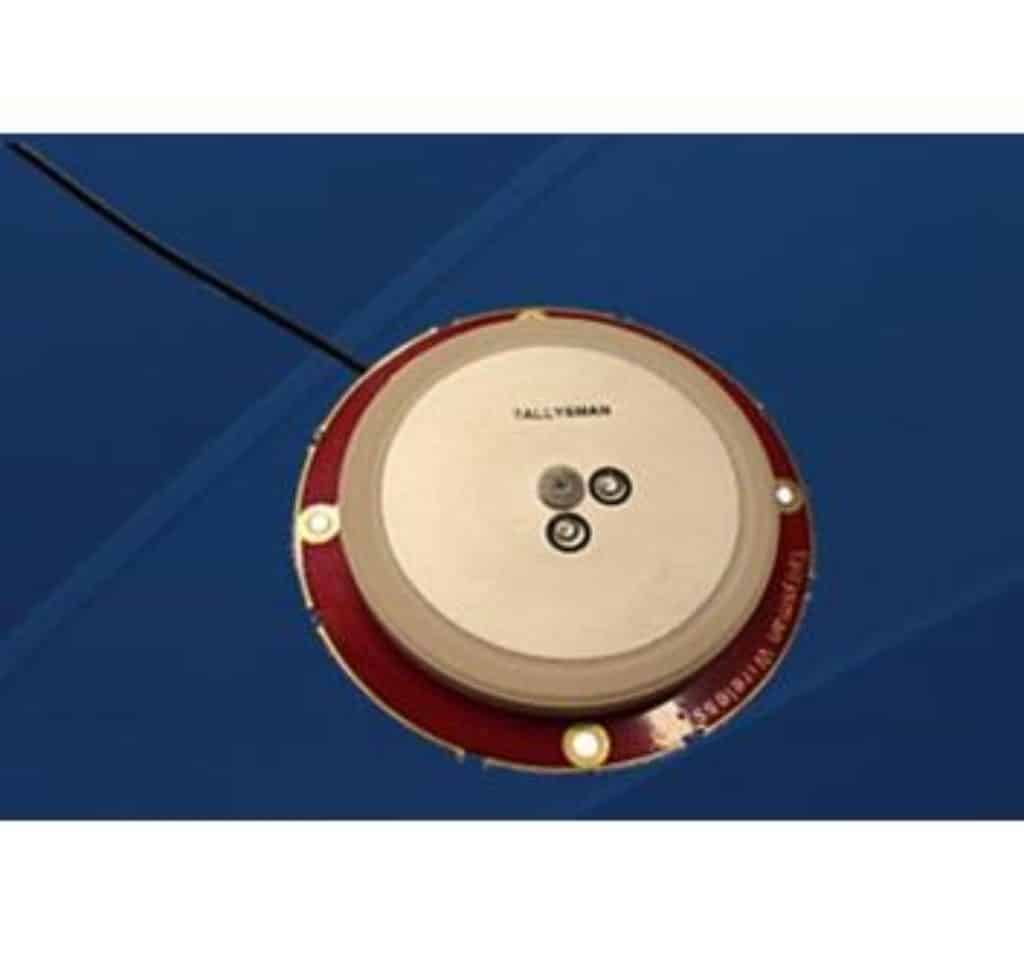

The Tallysman TW2106 is and embedded GPS L1 antenna electronically identical to the TW2105. The TW2106 has a larger PCB with drilled holes for a more secure method of attaching the antenna.

The TW2106 employs Tallysmans Accutenna™ technology covering the GPS L1 and SBAS (WAAS, EGNOS & MSAS) frequency bands (1565 to 1585 MHz). It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection.


  • Accutenna™ Technology
  • Highest accuracy GPS L1 OEM antenna in its size range
  • High rejection SAW filter
  • Temperature compensating LNAs


  • Superior multipath signal rejection
  • Ideal for handheld devices
  • Improved carrier phase linearity
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

For further details, please download the Datasheet.

Tallysman Wireless TW2106 Embedded GPS L1 Antenna

Aerodynamic Antenna for UAVs and Other Applications

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
