Item #: TW2406/TW2408

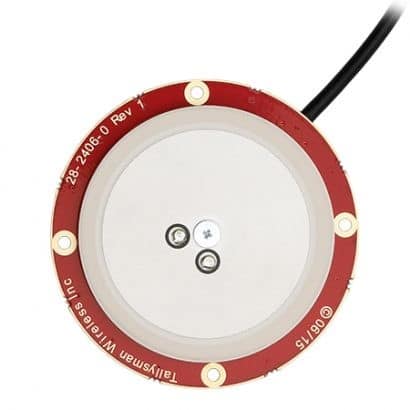

TW2406/TW2408 Embedded GPS/GLONASS Antenna

The Tallysman TW2406 / TW2408 is one of the highest performing GPS /GLONASS OEM antenna in its size with Accutenna™ Technology. Custom tuning available.

SKU: 33-2406/33-2408 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2406 / TW2408 Embedded GPS / GLONASS Antenna

TW2406 / TW2408 is one of the highest performing GPS /GLONASS OEM antenna in its size. It uses Accutenna™ Technology. Custom tuning available

The TW2406 is electronically identical to the TW2405 with the same performance characteristics, but it has a larger PCB than the TW2405 (56mm versus 50mm) with drilled holes to permit more secure mounting.

The TW2406/TW2408 employs Tallysmans unique Accutenna™ technology covering the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection resulting in higher accuracy of position and time.

Features

  • Accutenna™ Technology
  • Tight Phase Centre Variation
  • High accuracy GPS GLONASS OEM antenna in its size range
  • High rejection SAW filter
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for handheld devices
  • Improved carrier phase linearity for RTK systems
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

Tallysman Wireless TW2406 / TW2408 E mbedded GPS/GLONASS Antenna Data Sheet

Premium Antennas for Unmanned Vehicles (UAVs)

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

  Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
