Item #: TW2407

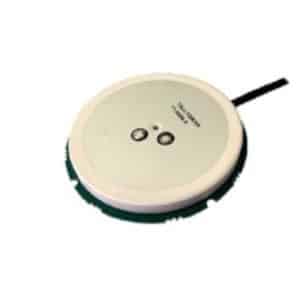

TW2407 Embedded GPS/GLONASS Antenna

The Tallysman TW2407 employs Tallysmans unique Accutenna® technology covering the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection resulting in higher accuracy of position and time.

SKU: 33-2407 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2407

The Tallysman TW2407 employs Accutenna® technology covering the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). It provides circular response over its entire bandwidth thereby producing superior multipath signal rejection resulting in higher accuracy of position and time.

Features

  • Accutenna® Technology
  • Tight Phase Centre Variation
  • Highest accuracy GPS GLONASS OEM antenna in its size range
  • High rejection SAW filter
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for handheld devices
  • Improved carrier phase linearity for RTK systems
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW2407 includes a tight pre-filter to protect against saturation by high level sub-harmonics and L-Band signals.

IMPORTANT: The TW2406/TW2408 is electronically identical to the TW2405/TW2407.

For further details, please download the Datasheet

Tallysman Wireless TW2407 Embedded GPS/GLONASS Antenna Datasheet

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
