Item #: TW2412

TW2412 GPS L1+GLONASS Precision Grade Antenna

$74.40

The TW2410/TW2412 by Tallysman Wireless is a professional grade GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1574 to 1606 MHz). It is especially designed for precision industrial, agricultural and military applications and offers excellent circular polarized signal reception, multipath rejection and out of band signal rejection.

View Full Description
SKU: 33-2412 Categories: , Manufacturer: Tallysman Wireless

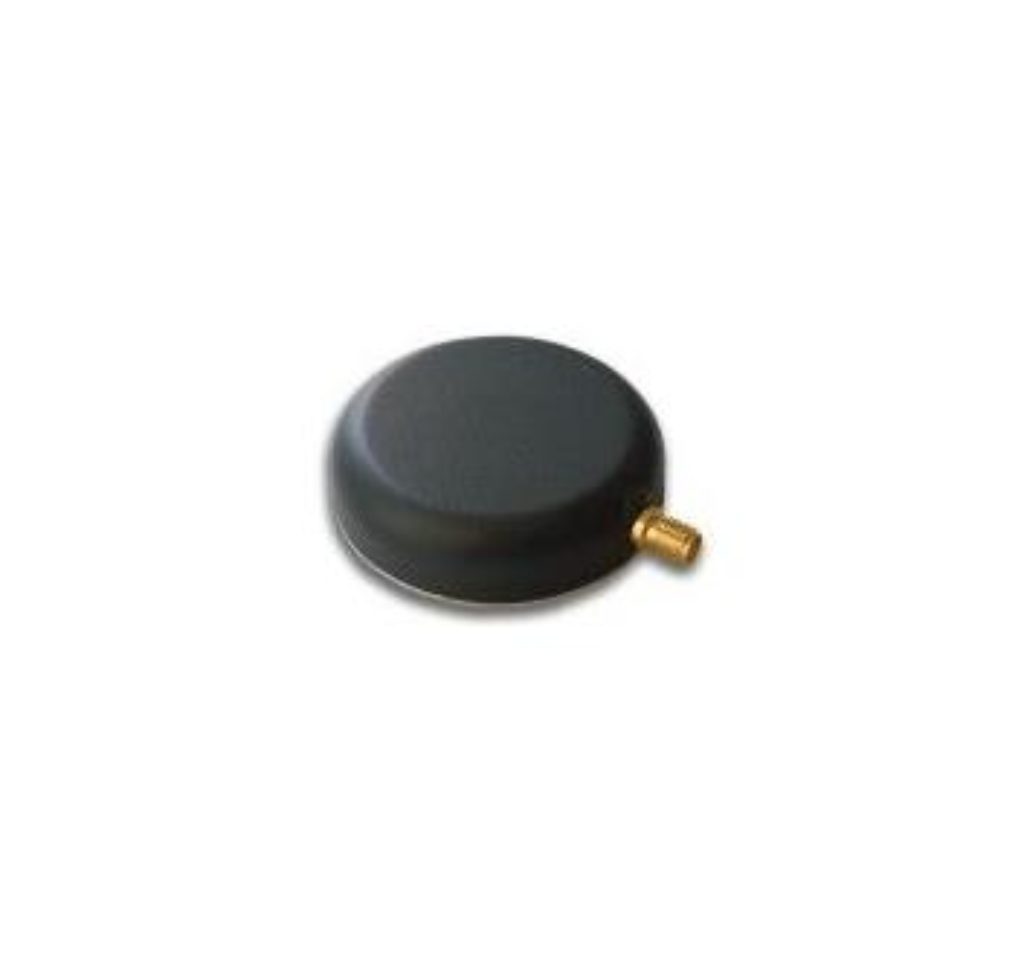

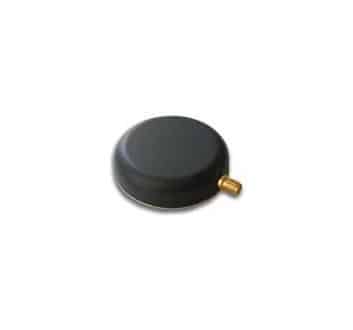

The TW2412 Magnetic Mount GPS/GLONASS Antenna

The TW2412 is the pre-filtered version of the TW2410. The TW2412 antenna employs Tallysmans unique Accutenna™ technology which provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection resulting in higher positional and timing accuracy. The TW2412 covers the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz).

The TW2412 has an additional tight pre-filter to protect against saturation by high level sub-harmonics and L-Band signals. The TW2410/TW2412 are housed in compact, magnetic mount, IP67 compliant housings. The antenna can be ordered without the magnet. In such cases, the magnet is replaced with a plastic plug to provide a smooth under surface. They are RoHS and REACH compliant.

The TW2412 is also available in an OEM / embedded version the TW2405.


FEATURES

  • Low Axial Ratio
  • Tight Phase Centre Variation
  • High rejection SAW filter
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

BENEFITS

  • Superior multipath signal rejection
  • Excellent choice for single frequency RTK systems
  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

Tallysman Wireless TW2412 Data Sheet

Premium Antennas for Unmanned Vehicles (UAVs)

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
