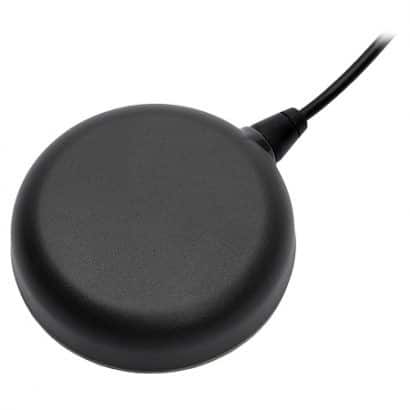

TW2500 Magnet Mount Globalstar STU Antenna
This configuration includes SMA Female (jack) bulkhead connector, with no cable.
The TW2500 by Tallysman Wireless is a professional grade, magnet mount, passive left hand circularly polarized antenna for the 1610 to 1620 MHz frequency band, certified and specifically designed to maximize the performance of the Globalstar™ STU (Simplex Transmit Unit) Modem.
The TW2500 features a high performance dual-feed patch element that provides great axial ratio (3 dB max) over the entire Globalstar™ frequency band, thus signals at the band edges remain truly circular, unlike the response of single feed antennas.
The TW2500 is housed in a compact, industrial-grade weather-proof, magnet mount enclosure, with threaded base holes for screw down attach. It is available with a 50 cm cable, allowing for the STU modem to be mounted out of the elements and reach, and still providing excellent Globalstar™ signal coverage.
- Custom high gain 4.25 dBic dual-feed patch
- Great axial ratio, 3 dB over full bandwidth
- ESD 15 KV circuit protection
- Weather proof, IP67 housing
- Robust Industrial grade enclosure
- Magnet or screw mount
- Wide range of connector options
TW2000 Family of Products
ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.
This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.
|00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
|16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female
|26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace x with color code)**
Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: 3.0mm, 1-4.9m: 30mm, >5m: 50mm
Connector Options Without Cable: 07 = SMA female (jack) bulkhead
** Premiums apply. Please contact NavtechGPS for information and pricing.
