Item #: TW2643POC

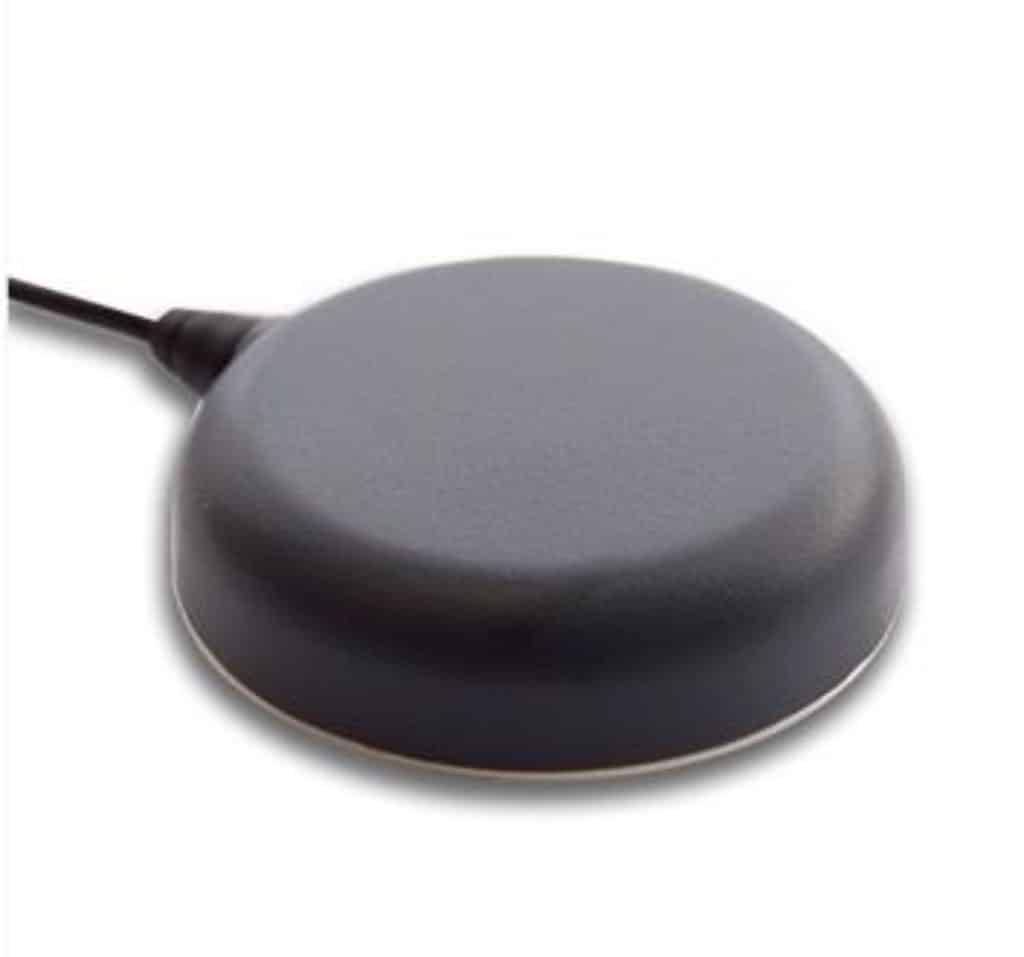

TW2643POC Magnetic Mount Passive Iridium/GNSS Antenna

The TW2643POC employs Tallysmans Accutenna technology in a magnet mount, passive right hand circularly polarised antenna for the 1559 to 1626.5 MHz frequency band.

SKU: 33-2643POC Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2643POC

This antenna comes with different options. Please call us with your specifics.

The Tallysman TW2643POC is the antenna specified by Open Cellular and is shown on the third page of the Datasheet. This Antenna includes all parts as shown on the Datasheet. No additional parts need to be ordered.

The TW2643POC employs Tallysmans Accutenna™ technology in a magnet mount, passive right hand circularly polarised antenna for the 1559 to 1626.5 MHz frequency band, certified and specially designed to maximise the performance of Iridium™ Voice and Data Modems plus the upper GNSS band (1559 1606MHz) .

Features:

  • Accutenna™ Technology
  • High gain: 5dBic max
  • Circular response over entire bandwidth
  • Benefits
  • Superior multipath signal rejection
  • Higher transmission success rates
  • Compact form for flexible use

The TW2643POC is housed in a compact, IP67 compliant, magnet mount enclosure, with threaded base holes for screw down attach. The TW2643P is RoHS and REACH compliant.

For further details, please see the Datasheet.

Tallysman TW2643POC Magnetic Mount Passive Iridium/GNSS Antenna Datasheet

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

  Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
