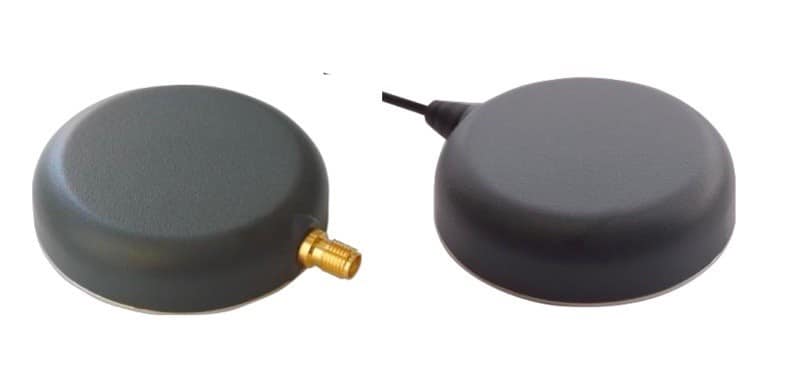

TW2710 / TW2712 Magnet Mount Multi-Constellation Antenna

$94.16

The Tallysman Wireless TW2710/TW2712 is a professional grade GNSS antenna covering the BeiDou, Galileo, GPS L1, GLONASS L1 and SBAS, designed for precision industrial, agricultural and military applications.

View Full Description
SKU: 33-271 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2710 / TW2712 Magnet Mount Multi-Constellation Antenna

The TW2710 / TW2712 by Tallysman Wireless is a professional grade GNSS antenna that features a dual-feed wideband patch element (with one LNA per feed, a mid section Combiner and SAW filter, and a final output gain stage). The TW2710 / TW2712 covers BeiDou B1, Galileo E1, GPS L1, GLONASS L1 and SBAS (WAAS, QZSS, EGNOS & MSAS). It is designed for precision industrial, agricultural and military applications and offers excellent axial ratio and circular polarized signal reception, multipath rejection and out of band signal rejection.

Note: An optional tight pre-filter is available with the TW2712 to protect against saturation by high level sub-harmonics and L-Band signals.

The TW2710/TW2712 is housed in a compact, industrial-grade weather-proof, magnet mount enclosure, and comes with a variety of connectors.

Applications
  • High Accuracy & Mission Critical GNSS
  • Precision Agriculture, Mining & Construction
  • Military & Security
  • Avionics
  • Law Enforcement & Public Safety
  • Fleet Management & Asset Tracking
 Features
  • Covers B1 / E1 /L1 / G1 Frequencies
  • Great axial ratio: 1 typ., 3 dB max
  • Low noise LNA: =1 dB
  • High rejection SAW filter
  • LNA gain: 28 dB typ.
  • Low current: 15 mA typ.
  • Wide voltage input range: 2.5 to 16 VDC
Benefits
  • Excellent multipath rejection
  • Increased system accuracy
  • Excellent signal to noise ratio
  • Great out of band signal rejection
  • Ideal for harsh environments
  • RoHS compliant

LNA Pre-filter

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, select Pre-Filter for this product. If you have questions, contact us.

To minimize performance impact from signal jamming threats, the pre-filtered version of this antenna is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.

Tallysman Wireless TW2710/TW2712 Magnet Mount Multi-Constellation Antenna Data Sheet

Premium Antennas for Unmanned Vehicles (UAVs)

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

  Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
