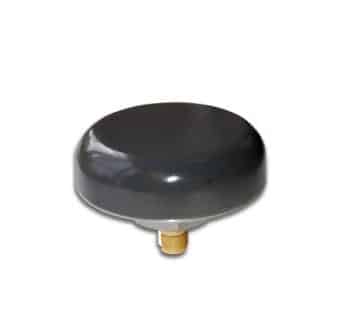

TW3010 GPS L1 Antenna

$53.57

The TW3010 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional tracking and timing applications. (This product replaced the TW3030.)

View Full Description
SKU: 33-301 Categories: , Manufacturer: Tallysman Wireless

TW3010 GPS L1 Tallysman Antenna

The TW3010 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional tracking and timing applications.

The TW3010 features a custom high performance, wide band patch element, a 30dB gain LNA stage and a high rejection out-of-band SAW filter. It provides ±10MHz bandwidth centred on 1575.42 MHz and covers the GPS L1, Galileo E1 and SBAS (WAAS/EGNOS/MSAS) signals. It provides great axial ratio, excellent circular polarized signal reception, great multipath rejection and great out-of-band signal rejection.

The TW3010 is housed in a permanent mount industrial-grade weather-proof enclosure, and comes with a TNC Jack (female) connector.

Features:
  • Great axial ratio
  • Low noise LNA: 1 dB
  • High rejection SAW filter
  • High gain: 30 dB typ.
  • Low current: 10 mA typ.
  • ESD circuit protection: 15 KV
  • Wide voltage input range: 3.0 to 10 VDC
  • Weather proof housing: IP67

LNA Pre-filter Available

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative TW3012 provides these additional benefits with an LNA pre-filter.

To minimize performance impact from signal jamming threats, the pre-filtered version of this antenna is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.


Tallysman Wireless TW3010 Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
