Item #: TW3032

TW3032 GPS Brickwall Timing Antenna

This product has been replaced by the TW3012. The TW3032 by Tallysman Wireless is a professional grade, dual-filtered permanent mount GPS L1 antenna, specially designed for precision positioning and timing applications in environments characterized by high L-Band RF fields.

SKU: 33-3032 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3032

This product has been replaced by the TW3012.

The TW3032 by Tallysman Wireless is a professional grade, dual-filtered permanent mount GPS L1 antenna, specially designed for precision positioning and timing applications in environments characterized by high L-Band RF fields.

The TW3032 features a precisely tuned ceramic patch element, a tight SAW pre-filter, a first LNA gain stage, a mid-section SAW filter and a final gain stage. It covers the GPS L1 and SBAS (WAAS/EGNOS/MSAS) frequency band (1572.5 to 1578 MHz), and it offers unparalleled out-of-band signal rejection and excellent axial ratio for improved signal reception and multipath rejection.

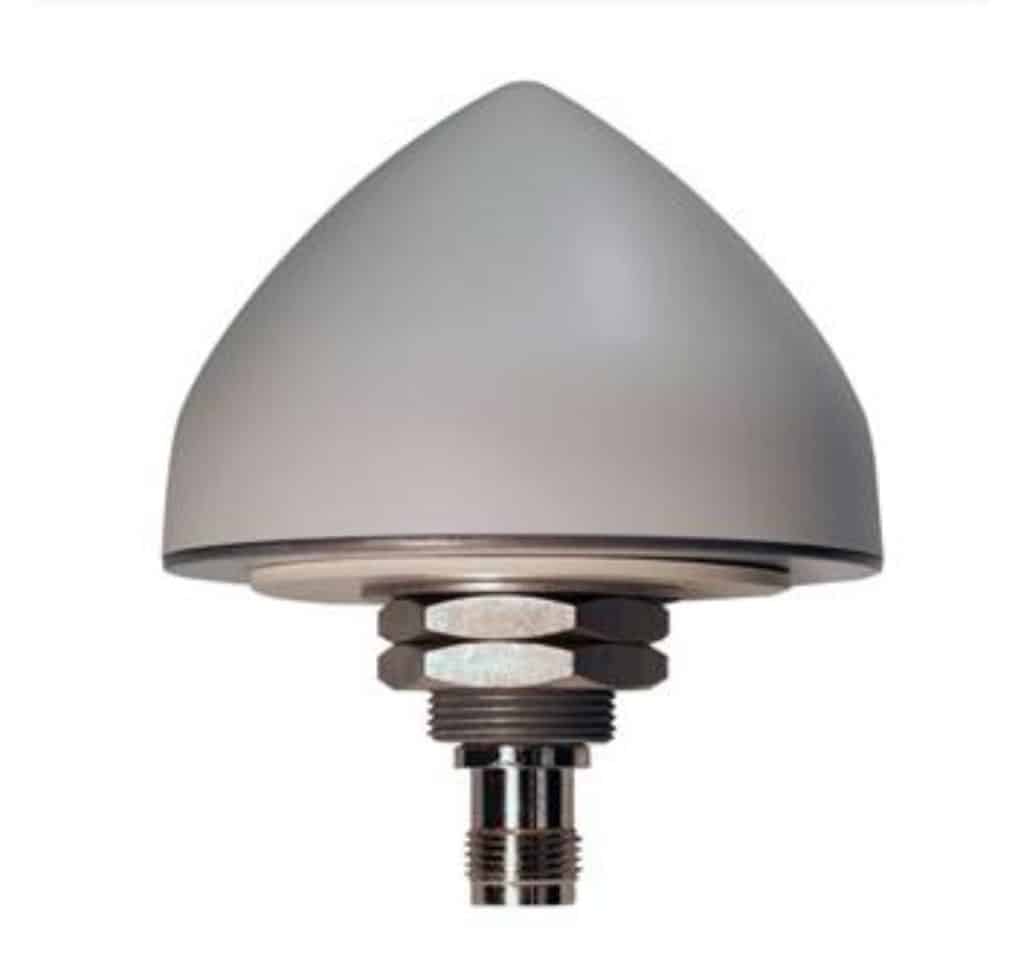

The TW3032 is housed in a compact, industrial-grade weather-proof, domed shaped enclosure. Its radome is available in dark gray or white, it comes with a TNC female connector and a L-bracket for pole mount is available.

Features:
Narrow pass-band SAW pre-filter
3 dB Noise Figure (including pre-filter)
Axial ratio: <4dB at Zenith
High LNA gain: 26 dB typ.
Low current: 10 mA typ.
ESD circuit protection: 15 KV
Wide voltage input range: 3.0 to 10 VDC



Tallysman TW3032 Brickwall Timing Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
