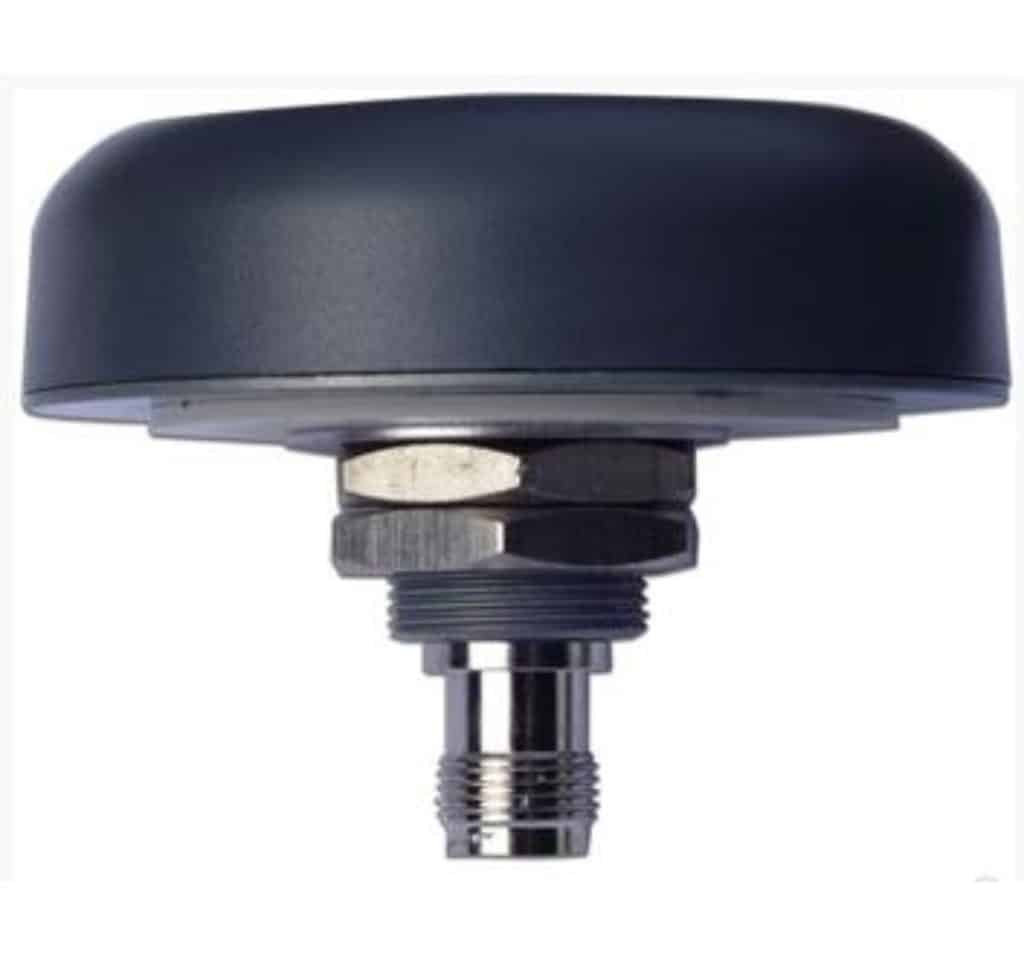

TW3100 GPS Precision Positioning Antenna

The TW3100 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision tracking and timing applications. (This product replaced the TW3130.)

SKU: 33-3100 Categories: , Manufacturer: Tallysman Wireless

TW3100 GPS Precision Positioning Antenna

The TW3100 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision tracking and timing applications.

The TW3100 features a custom high performance, dual-feed, wide band patch element. Its LNA configuration provides a LNA for each feed, a mid section high rejection SAW for the combined signal, followed by a final stage of LNA. It provides ±10MHz bandwidth centred on 1575.42 MHz and covers all GPS L1, Galileo E1 and SBAS (WAAS/EGNOS/MSAS) signals. It features great axial ratio over the entire frequency range (<3dB), excellent circular polarized signal reception, great multipath rejection and out-of-band signal rejection.

The TW3100 is housed in a permanent mount industrial-grade weather-proof enclosure, and comes with a TNC Jack (female) connector.

Features:
Great axial ratio: 1dB typ.
Low noise LNA: 1 dB
High rejection SAW filter
High gain: 30 dB typ.
Low current: 14 mA typ.
ESD circuit protection: 15 KV
Wide voltage input range: 3.0 to 10 VDC
Weather proof housing: IP67



Tallysman TW3100 GPS Precision Positioning Antenna Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
