Item #: TW3142

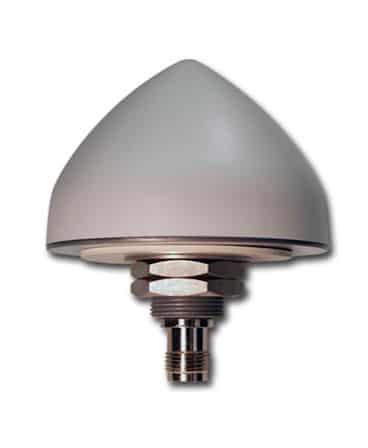

TW3142 High Gain Timing Antenna

The TW3142 is a high-gain GPS antenna specifically designed for timing applications in high density cell / telecommunications tower applications where high levels of near-out-of-band interfering signals can be expected.

SKU: 33-3142 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3142 Timing Antenna

The TW3142 is a high-gain GPS antenna specifically designed for timing applications in high density cell / telecommunications tower applications where high levels of near-out-of-band interfering signals can be expected. This antenna featurs a 40dB LNA gain to handle long cable runs often associated with installation on telecommunications towers.

The TW3142 covers the GPS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band and employs Tallysmans Accutenna™ technology to provide cross polarization rejection and enhanced multipath rejection.

Features

  • Accutennaâ„¢ Technology
  • Triple SAW filter architecture
  • 40dB Gain
  • Triple High rejection SAW filter (TW3152)
  • Low noise LNA: 1.5dB (TW3150)
  • Temperature compensating LNAs
  • IP67 Weather Proof Housing


Benefits

  • Excellent multipath signal rejection
  • Great out-of-band signal rejection
  • Ideal for harsh environments
  • Excellent signal-to-noise ratio
  • Consistent response in all operating
  • temperatures

The TW3142 housing has a permanent mount, IP67 compliant metal base, and an extended temperature range plastic radome, and is specifically designed to withstand the most challenging environmental conditions.

The antenna is RoHS, REACH, and RED compliant

Tallysman Wireless TW3142 High Gain Timing Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
