TW3320/TW3322 Wideband GPS/GLONASS Antenna

The TW3320/TW3322 from Tallysman is a high performance antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1575 to 1606 MHz).

SKU: 33-3320/33-3322 Categories: , Manufacturer: Tallysman Wireless

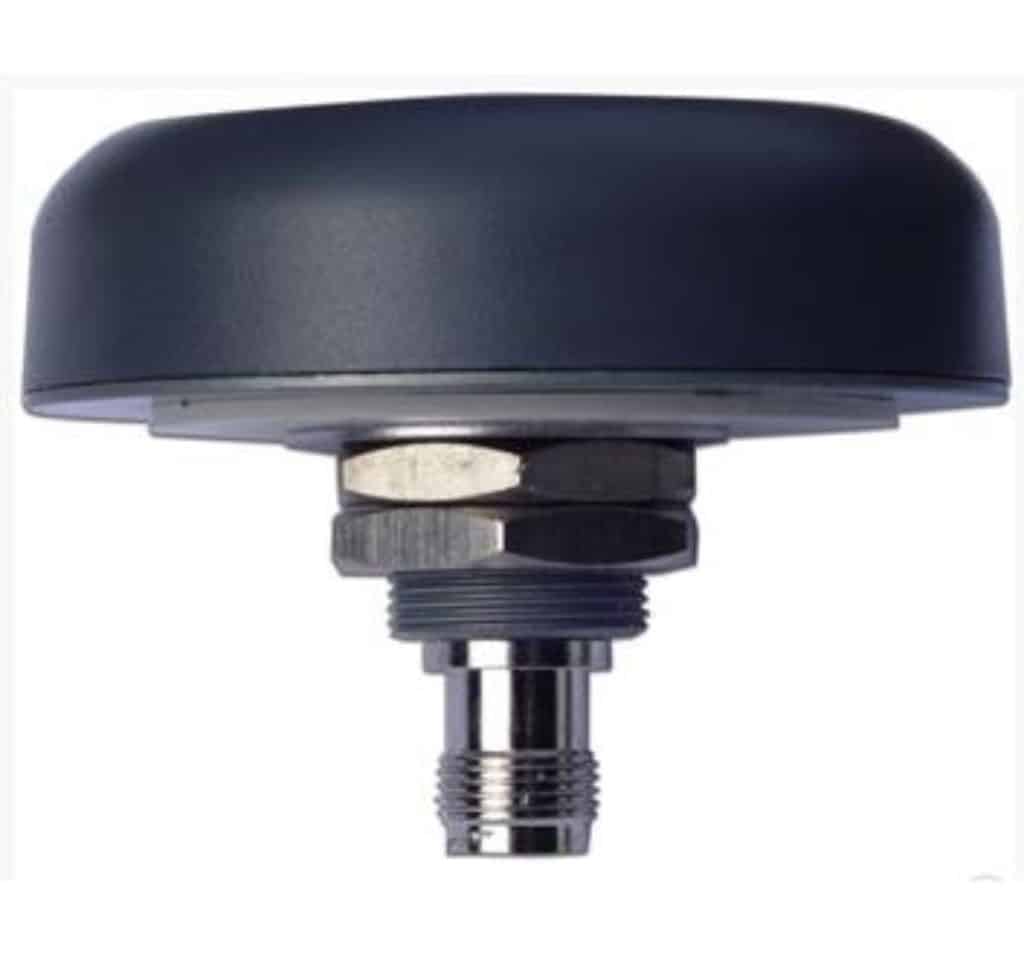

Tallysman TW3320/TW3322 Antenna

The TW3320/TW3322 is a high performance antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1575 to 1606 MHz). It features a patch element with 40% wider bandwidth than hitherto available in this format. Unlike its competitors, both GPS-L1 and GLONASS signals are included in the 1dB received power bandwidth.

Features

  • High rejection SAW filter
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

Benefits

  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating
  • temperatures

The TW3322 has an additional tight pre-filter to protect against saturation by high level sub-harmonics and L-Band signals.

The TW3320/TW3322 are housed in a through-hole mount, weather-proof enclosure for permanent installations. They are available with either a flat or conical radome in either grey or white. The TW3320/TW3322 is also available with either a TNC or N-Type connector on the base of the antenna or with a flying lead and a variety of connectors.

Tallysman TW3320/TW3322 Wideband GPS/GLONASS Antenna Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
