Tallysman TW3430/TW3432 Timing Antennas
This product was replaced by the TW3400/TW3402.
The TW3430/TW3432 are professional grade GNSS antennas covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). They are especially designed for precision timing applications and offer excellent circular polarized signal reception, multipath rejection and out of band signal rejection.
The TW3430/TW3432 feature a highly circular dual-feed wideband patch element, with a two stage Low Noise Amplifier, comprised of one input LNA per feed, a mid-section combining circuit and SAW. This configuration provides an excellent axial ratio that is constant across the full frequency band. An optional tight pre-filter is available with part number TW3432 to protect against saturation by high level sub-harmonics and L-Band signals.

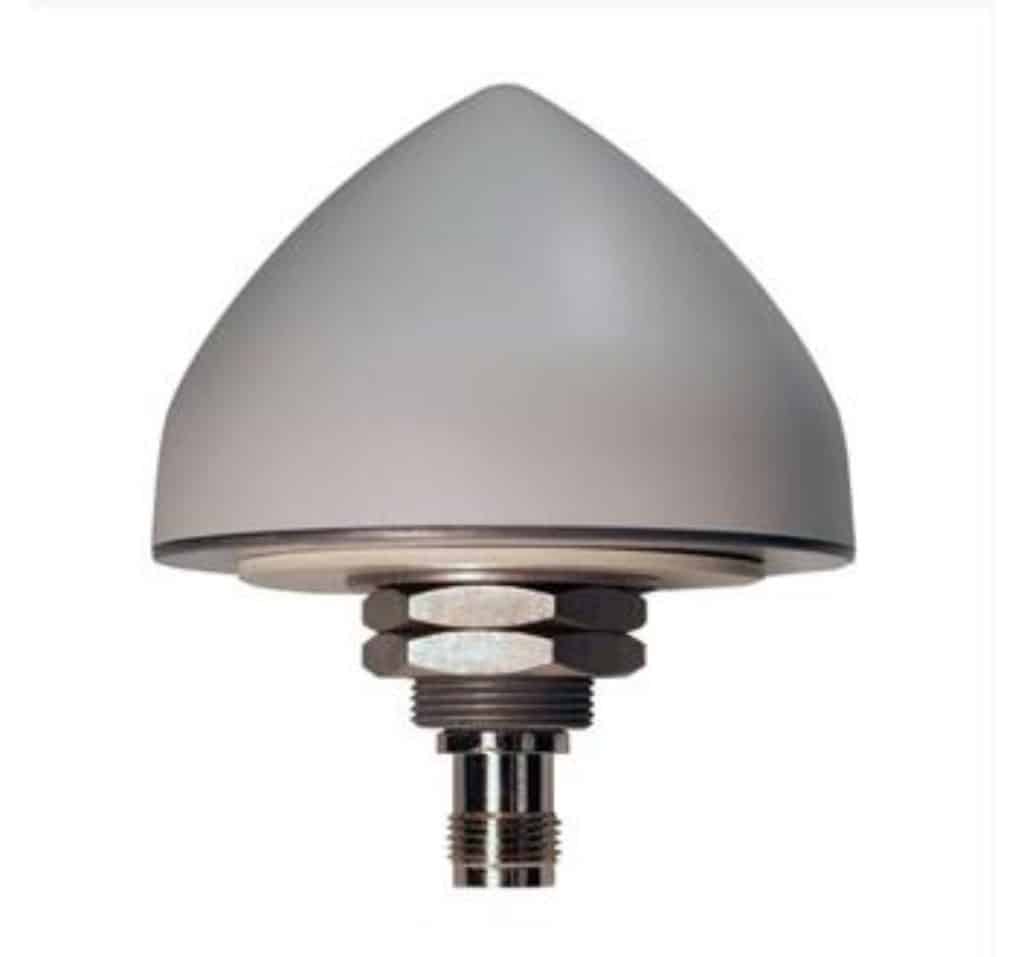

The TW3430/TW3432 are housed in a permanent mount industrial-grade weather- proof enclosures with a conical shaped radome, and a TNC Jack (female) connector.
Great axial ratio: 1 typ., 3 dB max
Low noise LNA: =1dB/3.5dB typ TW3430/TW3432
High rejection SAW filter
Available sharp pre-filter (TW3432)
LNA gain: 28 dB/26dB min TW3430/TW3432
Low current: 16 mA typ.
Wide voltage input range: 2.5 to 5.5 VDC
IP67 weather proof housing
Available flat-top radome (Mobile Apps)
TW3000 Family of Products
ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.
00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**
12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**
Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm
Connector Options Without Cable:
01 = TNC female
** Premiums apply. Please contact NavtechGPS for information and pricing.
