TW3710P Passive Single Band GNSS Antenna

The TW3710P is a passive antenna built on Tallysman’s proprietary Accutenna® technology. The antenna covers BeiDou B1, Galileo E1, GPS L1, GLONASS G1 and SBAS (WAAS, QZSS, EGNOS & MSAS) frequencies (1557 to 1606 MHz). It is available in conical or flat radome styles and in gray or white colors.

SKU: 33-3710P Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3710P Passive Single Band GNSS Antenna

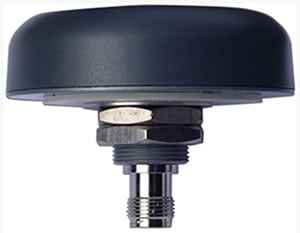

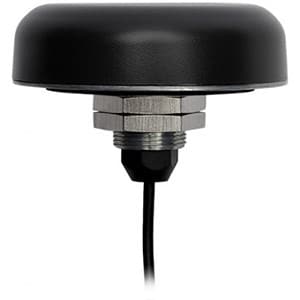

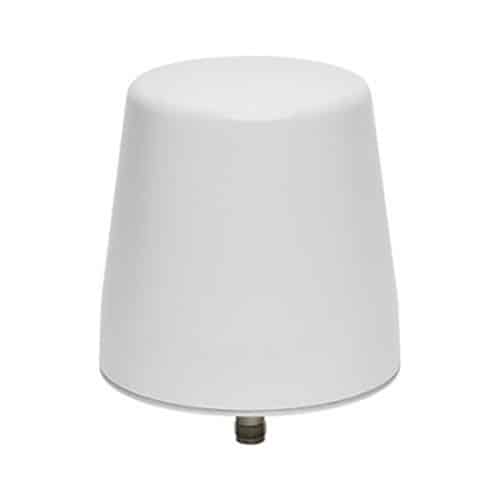

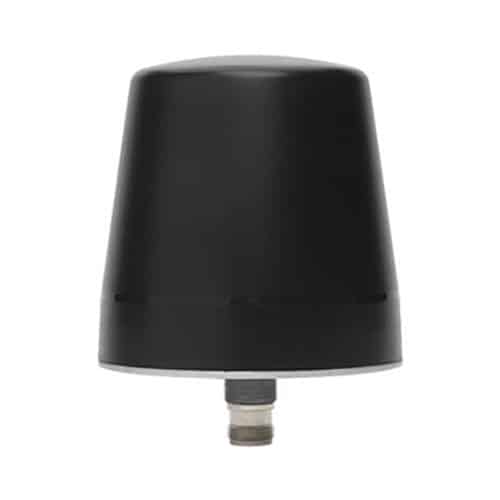

The TW3710P is a passive GNSS antenna that offers excellent axial ratio and a tightly grouped phase center variation. It features a precision tuned, dual feed, circular patch element. The signals from the two orthogonal feeds are combined in phase quadrature in a hybrid combiner to provide a mathematically correct transfer function for a RHCP signal. The TW3710P is housed in a permanent mount industrial grade weather-proof enclosure, available in conical or flat radome styles and in gray or white colors. Two options for pole mounting are available an l-bracket or a pipe mount. A 100mm ground plane is recommended for non-roof-top installations.

Benefits

  • Excellent circular polarization
  • Excellent multipath rejection
  • Increased system accuracy
  • Ideal for harsh environments I
  • P69K, RoHS and REACH compliant

Features

  • Covers all GNSS Constellations
  • Great axial ratio: 2.5 dB typ.
  • ESD circuit protection 15 KV

Specifications

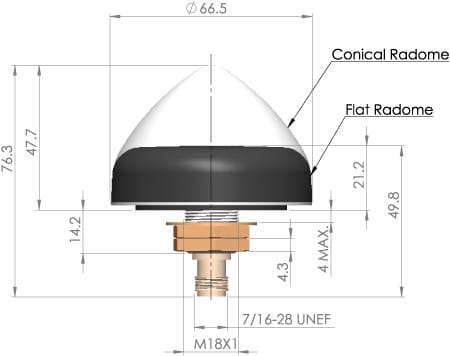

TW3 Diagram

Dimensions in millimetres



Coverage

  • GPS/QZSS L1, GLONASS G1, Galileo E1, and BeiDou B1, as well as SBAS (WAAS, QZSS, EGNOS & MSAS)

Tallysman TW3710P Passive Single Band GNSS Antenna

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
