Item #: TW3752

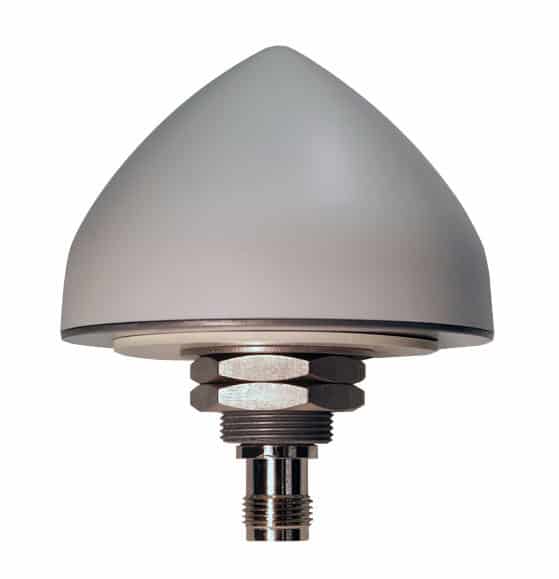

TW3752 Single Band GNSS Antenna

The TW3752 is a single band GNSS antenna from Tallysman, covering GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS/EGNOS/MSAS). This antenna is ideal for high-density, telecommunications tower timing applications, where high levels of near-out-of-band interfering signals are common, the TW3752 is designed to provide strong circular polarized signal reception, multi-path and out-of-band signal rejection.

SKU: 33-3752 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3752 Single Band GNSS Antenna

The TW3752 is a single band GNSS antenna from Tallysman, covering GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS/EGNOS/MSAS).

Ideal for high-density, telecommunications tower timing applications, where high levels of near-out-of-band interfering signals are common, the TW3752 is designed to provide strong circular polarized signal reception, multi-path and out-of-band signal rejection. Additionally, with a high gain Low Noise Amplifier (LNA) of 50 dB, the antenna is able to support long cable runs often necessary for tower installation.

The TW3752 features a customizable dual-feed, wide-band patch element, with a three-stage Low Noise Amplifier, and provides an axial ratio that is constant across the full frequency and tight phase centre variation.

The TW3752 features an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.

Features

  • Axial ratio: 1 dB typ.
  • Low noise LNA: < 2.5 dB typ.
  • Triple High rejection SAW filter
  • High gain LNA: 50 dB typ.
  • Current: 30 mA typ.
  • Voltage input range: 2.7 to 26 VDC
  • IP69K, REACH, and RoHS compliant

TW3752 Mechanical Drawing

Tallysman TW3752 Single Band GNSS Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
