Item #: TW3872

TW3872 GPS L1 & L2/GLONASS G1 & G2 Antenna

$285.55

The TW3872 employs Tallysmans unique Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, and SBAS (WAAS, EGNOS & MSAS) frequency bands.

View Full Description
SKU: 33-3872 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3872

The Tallysman TW3872 Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, and SBAS (WAAS, EGNOS & MSAS) frequency bands. It provides circular response over its entire bandwidth thereby producing great multipath signal rejection. This antenna sets a new price/performance standard in its category.

The TW3872 has a pre-filter which increases the antennas immunity to high amplitude interfering signals, such as LTE and other cellular signals.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2dB max.
  • Temperature compensating LNAs

Benefits

  • Great multipath signal rejection
  • Ideal for RTK applications
  • High signal-to-noise ratio
  • Consistent response in all operating temperatures

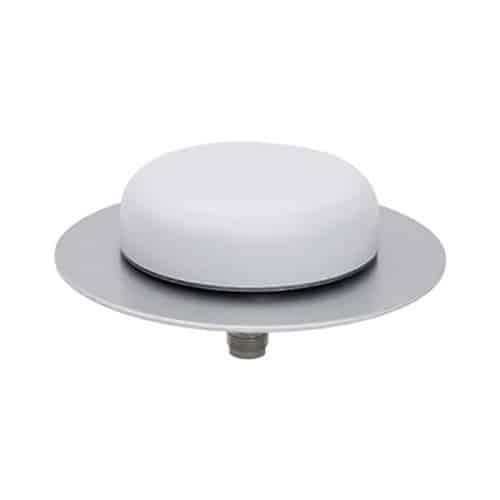

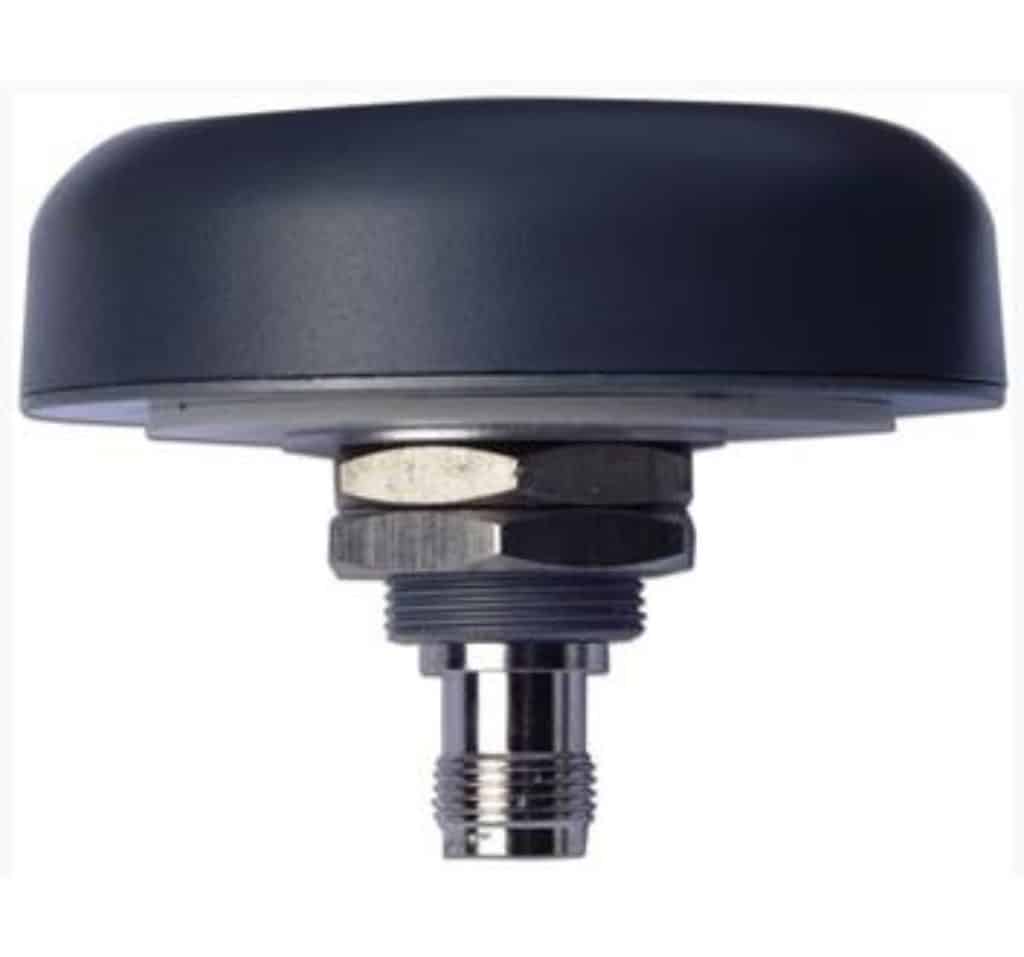

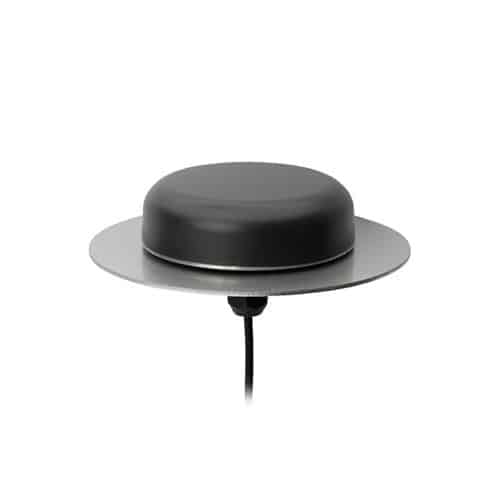

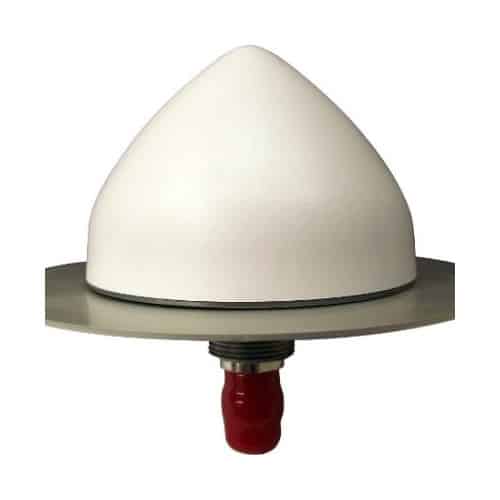

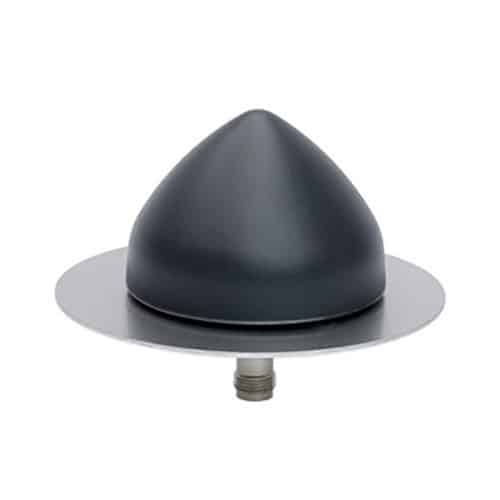

The TW3872 is housed in a through-hole mount, weather-proof enclosure for permanent installations. It is available with either a flat or conical radome in either grey or white. The TW3872 is also available with either a TNC or N-Type connector.

The TW3872 is IP67, REACH, and RoHS compliant.

Tallysman TW3872 GPS L1 & L2/GLONASS G1 & G2 Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
